| Model | SAW-X | SAW-T | SAW-L | SAW-C | SAW-H |
| Capacity x Readability | 10 lb x .0001 lb 4.5 kg x .05 g | 25 lb x .0002 lb 12 kg x 0.1 g | 50 lb x .0005 lb 22 kg x 0.2 g | 100 lb x .001 lb 45 kg x 0.5 g | 200 lb x .002 lb 90 kg x 1 g |
| Resolution | 1:100,000 |
| Linearity* | 1:40,000 of Full Capacity |
| Response Time(avg) | Filtered: 0.5 sec - 1 sec Unfiltered: 0.01 sec - 0.2 sec |
| Display Update | 0.4 sec |
| Allowable Ambient Temperature | 10°F-120°F |
| Sensitivity Drift (15C-35C)* | approx.+/- 5 ppm |
| Overall Accuracy* | 1:20000 |
| Safe Overload | 250% |
| Power Consumption | 1W |
| Pan Size | 12" x 12" | 12" x 12" | 12" x 12" | 12" x 12" | 12" x 12" |
| Price | $1369 | $1369 | $1369 | $1369 | $1669 |
| Pan Size (-16) | N/A | 12" x 16" | 12" x 16" | 12" x 16" | 12" x 16" |
| Price | N/A | $1469 | $1469 | $1469 | $1769 |
*Typical ***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***
***CLICK HERE TO FOR LARGE ULTRA PRECISION SCALES***
***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***
***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***
Details
A New Standard in Precision and Reliability
Arlyn’s Ultra Precision Scales are designed for organizations that require laboratory-grade accuracy, but demand the resilience and versatility of an industrial workhorse. Each model is powered by our proprietary SAW transducer, providing true digital measurement for unrivaled accuracy, minimal drift, and reliable results—even in challenging environments. Super Sensitivity & Accuracy
With up to 0.001 lb readability at 100 lb capacity, SAW scales provide 10 to 20 times the sensitivity of typical industrial designs. Expect true accuracy between 0.01% and 0.005% of full scale, supported by internal resolutions as fine as 1 part in 2 million. Industrial Strength, Built to Last
Don’t let precision fool you—these scales are engineered for factory life. Each unit withstands shock and accidental overloads up to 2.5x its rated capacity, thanks to a rugged aluminum and stainless steel frame. Minimal thermal sensitivity (less than 3 ppm/°C) ensures stable readings, even with wide temperature swings. Effortless, Flexible Operation

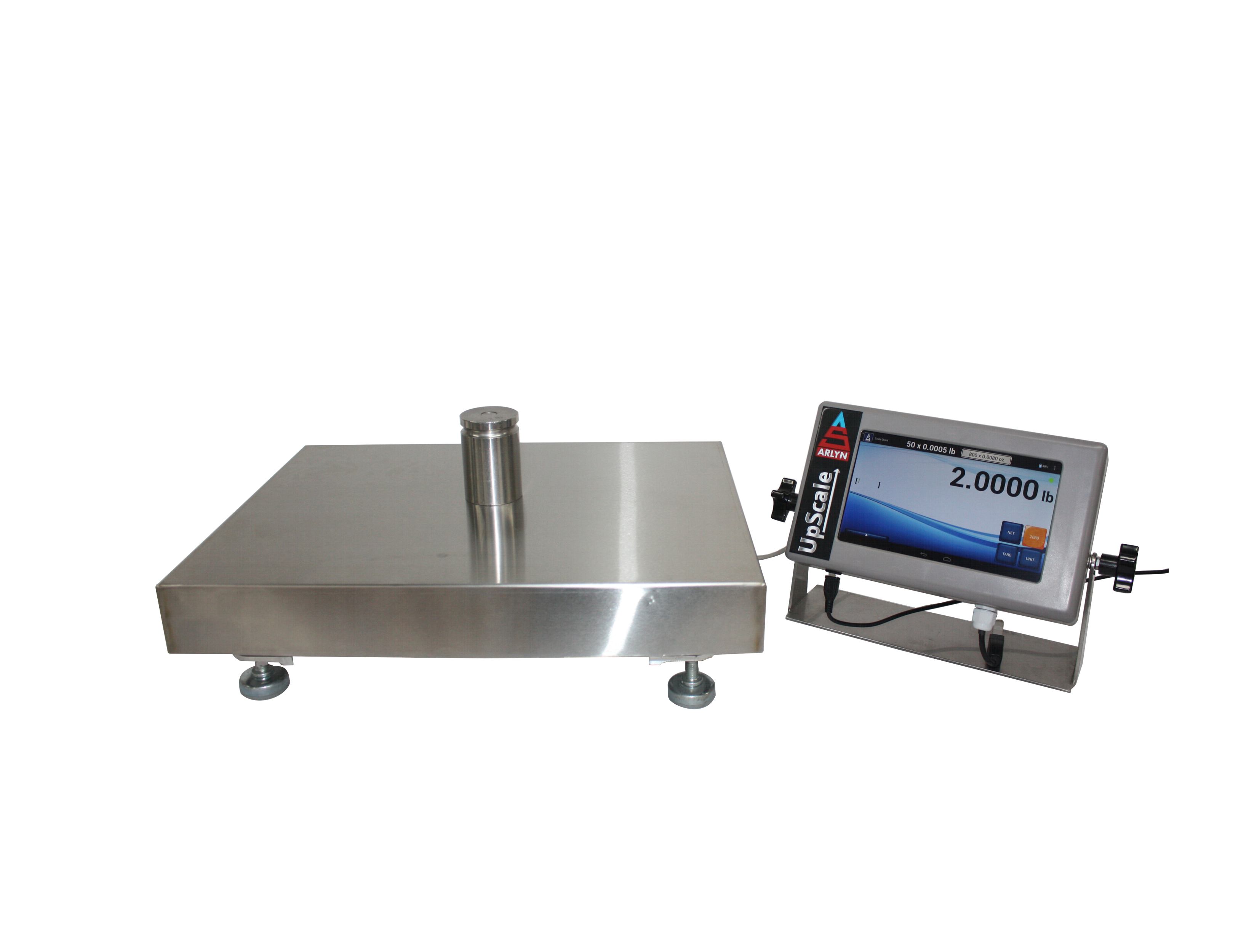

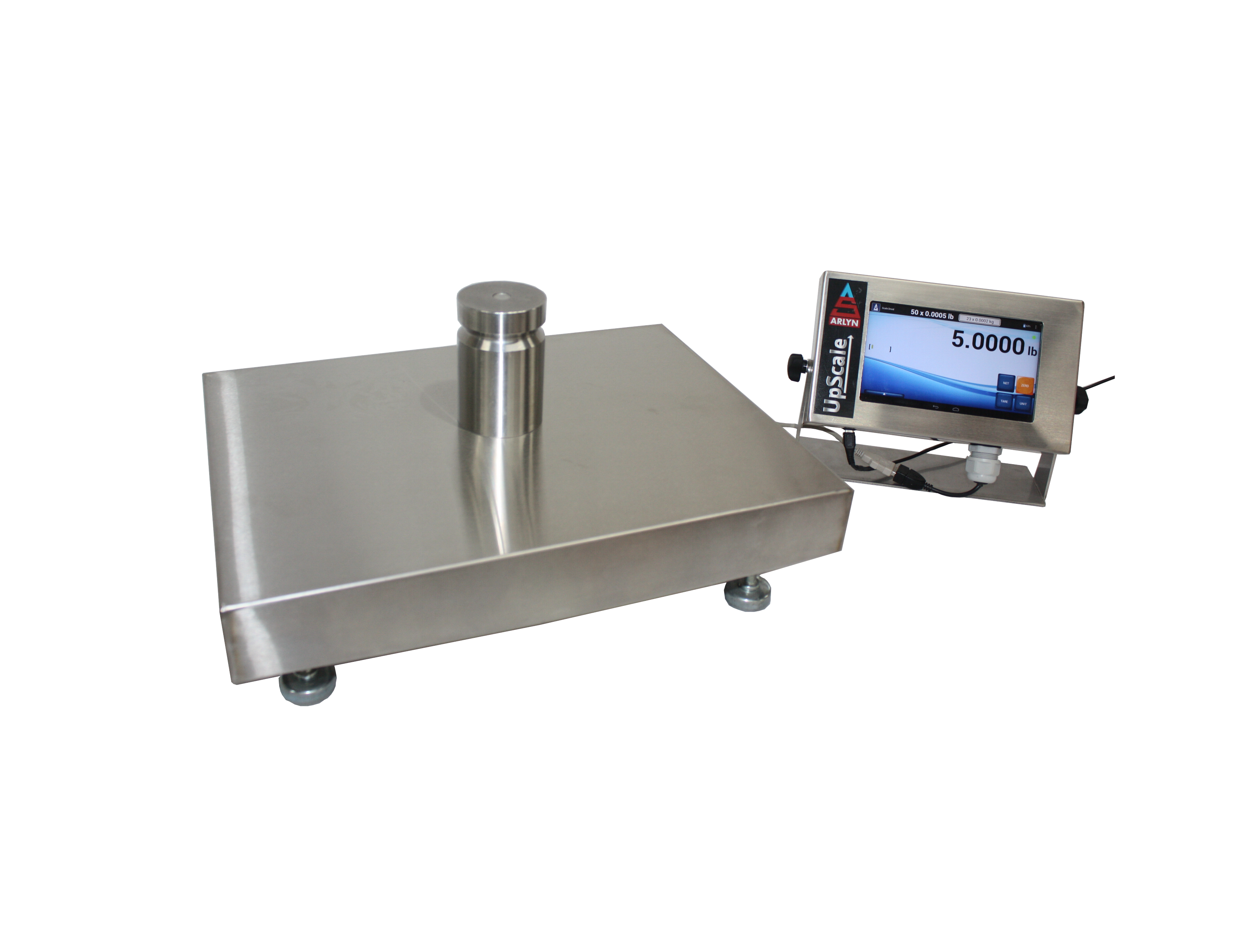

A large, swiveling digital indicator makes readings clear from any angle. For advanced needs, upgrade to the Arlyn UpScale 7” touchscreen—unlocking an intuitive interface, powerful data logging, and future-ready app capabilities. Fully Connected for Industry 4.0
All models support modern connectivity: Ethernet, USB, RS-232, and wireless options. For advanced automation, add industrial protocols like MODBUS, PROFINET, or EtherNet/IP. Cloud-based AxChange Monitoring and Google Sheets logging put your data at your fingertips, anywhere. Custom-Built for Your Process
From benchtop to large-platform models, Arlyn’s Ultra Precision line supports custom sizes, multi-platform setups, and specialty configurations for hazardous or classified environments. Intrinsically safe versions are available for FM Approved applications. Engineered, Built, and Supported in the USA
Every Arlyn Ultra Precision Scale is designed, assembled, and supported in Long Island, NY. When you call, you get expert help—direct from the source. Available Upgrades
Arlyn Ultra Precision Scales are engineered for adaptability. Build the perfect solution for your application—whether you need advanced automation, network integration, or custom data workflows. Below are popular upgrades and options available for the SAW Series:
Displays & Indicators
| Option | Description |
| Standard MKE-5 Indicator | High-contrast 1” LCD, fast update (included) |
| UpScale Touchscreen | 7” color LCD, fully customizable, app-ready (upgrade) |
Outputs & Communication
| Option | Description |
| RS-232 Serial Port | Standard for PC/printer/data output |
| RS-422/RS-485 | Industrial-grade serial for networked systems |
| USB Communication | Plug-and-play with virtual COM support |
| Ethernet TCP/IP | Wired networking for fast data transfer |
| Wireless TCP/IP | Wi-Fi networking (UpScale only) |
| Analog Output (4-20mA/0-5V) | For legacy systems, PLCs, or analog displays |
Industrial Automation Protocols
(UpScale Required)
| Option | Description |
| MODBUS RTU/ASCII | For PLC/automation integration (serial or TCP) |
| MODBUS TCP | Ethernet-based industrial data |
| EtherNet/IP | Rockwell/Allen-Bradley PLC compatibility |
| PROFINET | Seamless Siemens PLC integration |
Printing & Barcode Solutions
| Option | Description |
| Label/Paper/Card Printer (RS-232) | For printouts, tickets, or labels |
| Bluetooth/USB Thermal Printer | Portable, 58mm receipts/barcodes (UpScale) |
| Barcode Functions (UpScale) | Barcode scanning and label printing |
Process Control & Setpoints
| Option | Description |
| Setpoint Control | Filling, batching, or relay-based automation |
| Relays (AC/DC) | Trigger external devices/processes |
| Alerts (Buzzer Alarm) | Audible signal for process feedback |
| Light Tower | Visual status indicator (2 or 3 lights) |
Data Logging & Cloud Integration
| Option | Description |
| AxChange Monitoring (Cloud) | Real-time scale monitoring & alerts, anywhere |
| Google Sheets Logging | Direct, cloud-based inventory tracking |
| USB Data Logging | Standalone, no PC needed |
| Remote Indicator Software (PC) | Monitor/control scales from your computer |
| Time & Date Output | Timestamped records (MKE-5) |
Additional Options
| Option | Description |
| Flow Rate Function | Live throughput/flow tracking (UpScale only) |
| Battery Pack | Portable/backup operation |
| NEMA Stainless Steel Enclosure | Harsh environment protection |
| Remote Buttons | Operate Zero, Tare, Print, Cycle remotely |
| 24V Power Supply | For alternate voltage requirements |
Need a custom solution?
Arlyn specializes in custom platforms, multi-scale systems, and special configurations for hazardous, classified, or industry-specific needs. Contact our engineering team for help specifying the right build for your process.
Specifications
Arlyn Ultra Precision SAW Scales are engineered to deliver laboratory accuracy with industrial toughness. See below for core technical details. For full model-specific information, refer to the Capacities & Platform Sizes table above.
Performance & Accuracy
| Feature | Specification |
| Capacity x Readability | 10 lb × 0.0001 lb up to 1000 lb × 0.01 lb (standard models); see table for all configurations |
| Linearity | 1:40,000 of full capacity (typical) |
| Overall Accuracy | Up to 1:20,000 (typical); 0.005%–0.01% of full scale |
| Resolution | Up to 1 part in 2,000,000 (internal) |
| Sensitivity Drift | Approx. ±5 ppm (15°C–35°C) |
| Safe Overload | 250% of rated capacity |
| Response Time | Filtered: 0.5–1 sec; Unfiltered: 0.01–0.2 sec |
| Display Update | 0.4 seconds |
Construction & Platform
| Feature | Specification |
| Platform Size (Standard) | 12" × 12" up to 31” x 31”, depending on capacity |
| Frame & Pan Material | Reinforced aluminum frame, stainless steel platform |
| Custom Sizes | Available—contact for requirements |
| Shipping Weight | Varies by model/configuration |
Operating Environment
| Feature | Specification |
| Operating Temperature | 10°F to 120°F (-12°C to 49°C) |
| Power Requirements | 117 VAC, 50/60 Hz (optional 24V available) |
| Power Consumption | 1W (nominal) |
Display & Indicators
| Feature | Specification |
| MKE-5 Digital Indicator | 1" high graphics LCD, arm or remote mount, adjustable speed (0.1–0.5 sec updates) |
| UpScale-9 Touchscreen | 7" color LCD, fully customizable, remote mount only (upgrade) |
Functions & Features
| Feature | Specification |
| Weighing Modes | Gross, net, parts counting, alternate weighing |
| Counting | Standard, with up to 100+ tare locations |
| Flow Rate Function | Available (UpScale only) |
| Quick Count Mode | Yes |
| Overload Protection | 250% safe overload; warning at 102% capacity |
Connectivity & Integration
| Feature | Specification |
| Outputs | RS-232, USB, Ethernet, RS-422/RS-485 |
| Advanced Protocols | Modbus RTU/ASCII, Modbus TCP, EtherNet/IP, PROFINET (UpScale required) |
| Wireless Connectivity | Wi-Fi (UpScale only) |
| Data Logging | USB, AxChange Cloud, Google Sheets, PC software |
Compliance & Manufacturing
| Feature | Specification |
| Design Origin | Made in the USA (Long Island, NY) |
| Intrinsically Safe | FM Approved models available |
Documentation
Download the Full Ultra Precision SAW Scale Specification Sheet (PDF) Frequently Asked Questions
How is Surface Acoustic Wave (SAW) technology different from a standard industrial scale?
SAW technology is an all-digital, patented platform that measures weight by tracking frequency changes in a crystalline sensor. This method is significantly more accurate and stable than traditional analog strain gauge systems—delivering lab-level precision with superior resistance to temperature drift and signal noise.
Can I really get laboratory-level accuracy in an industrial environment?
Yes. Ultra Precision SAW Scales provide up to 0.005% accuracy—10–20x better than typical industrial models—while also withstanding heavy use, shock loading, and harsh conditions. You get true lab-grade results, plus industrial durability.
What is the difference between the standard indicator and the UpScale touchscreen?

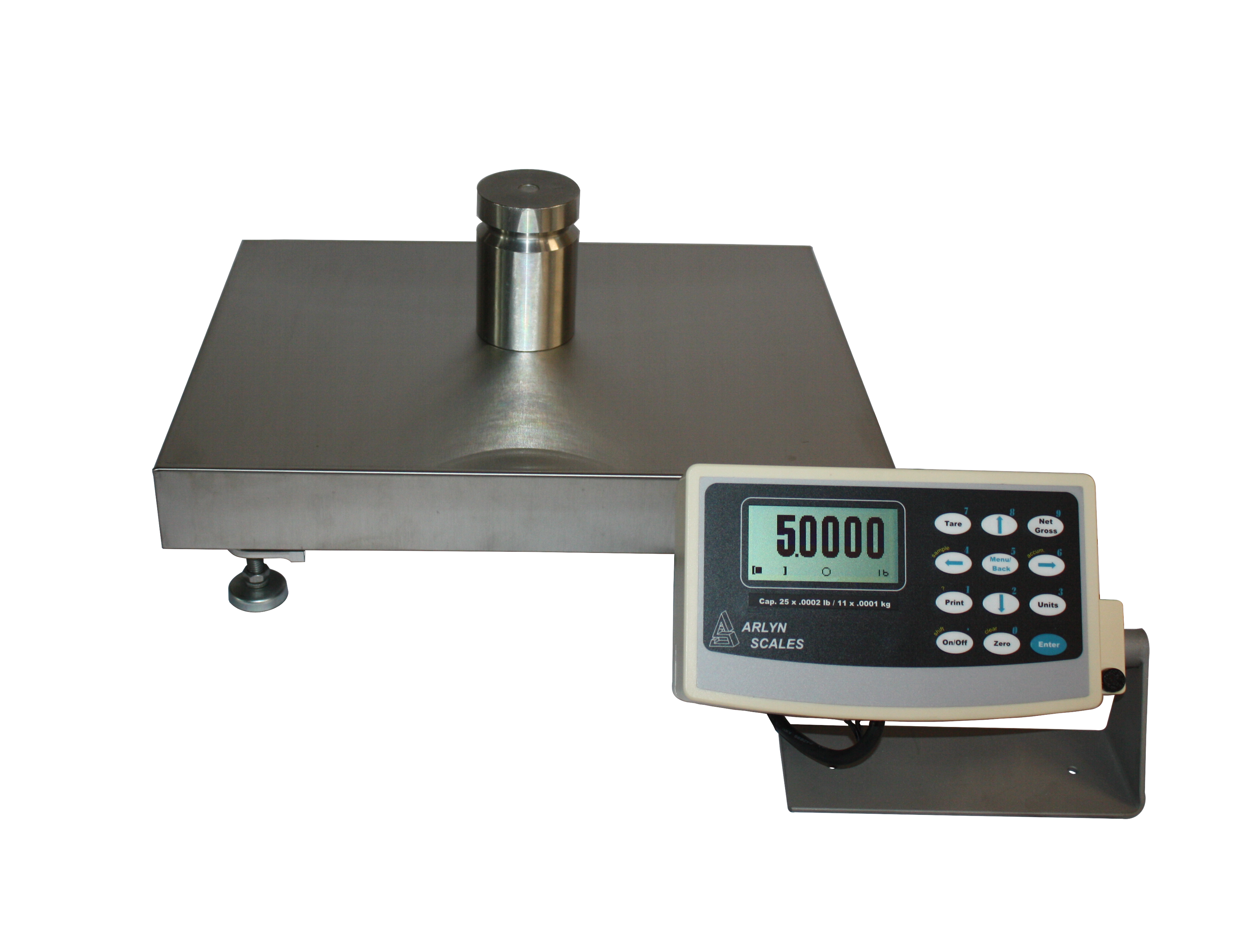

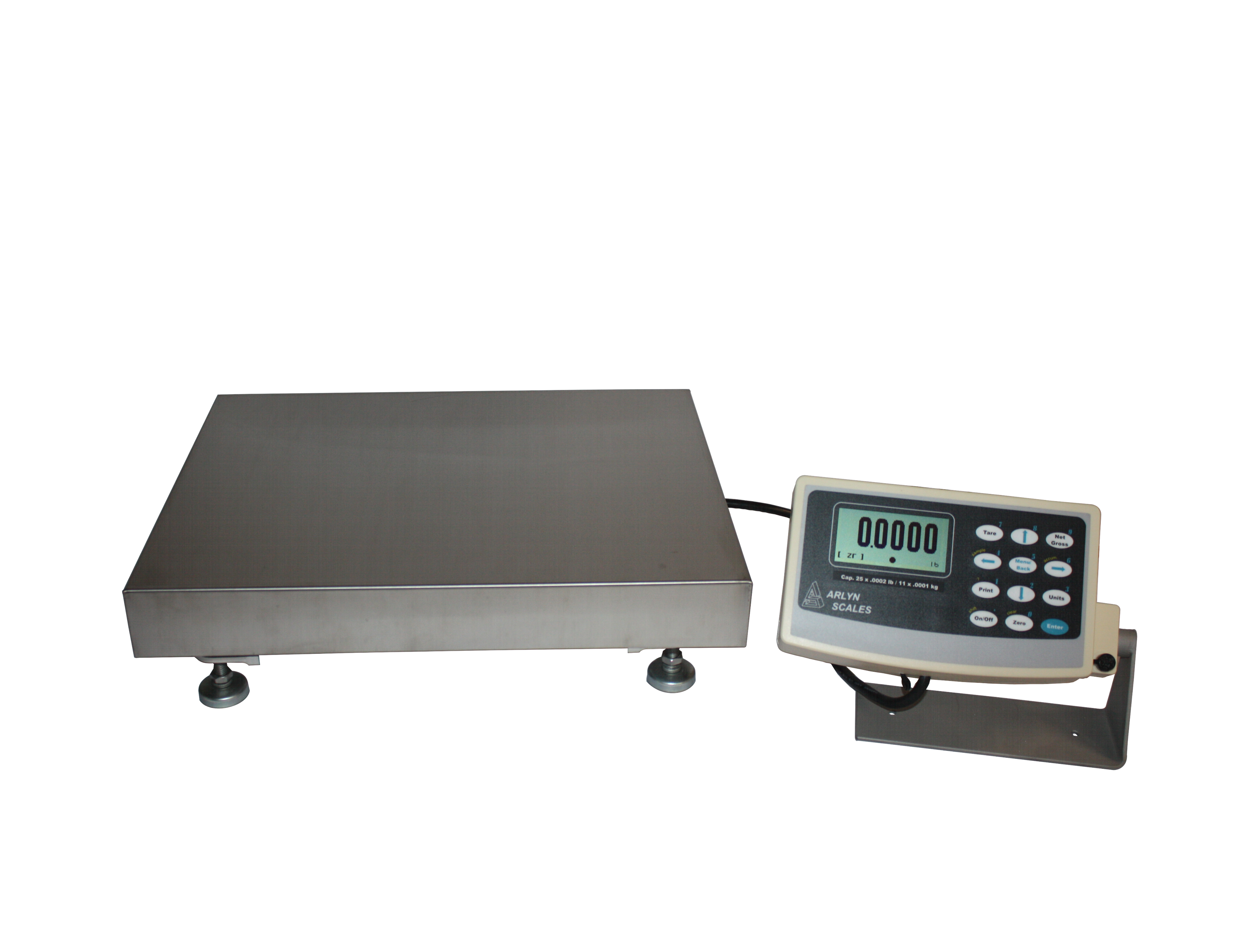

The MKE-5 digital indicator is a clear, fast, industrial display included with every scale. The UpScale 7” touchscreen upgrade offers an intuitive interface, advanced app capabilities, enhanced data management, and support for the latest automation protocols.
How stable are these scales if my plant has temperature swings or vibration?
SAW technology is engineered for minimal drift (less than 3 parts per million per degree Celsius). Built-in filtering ensures stable, reliable readings—even in environments with vibration, humidity, or changing temperatures.

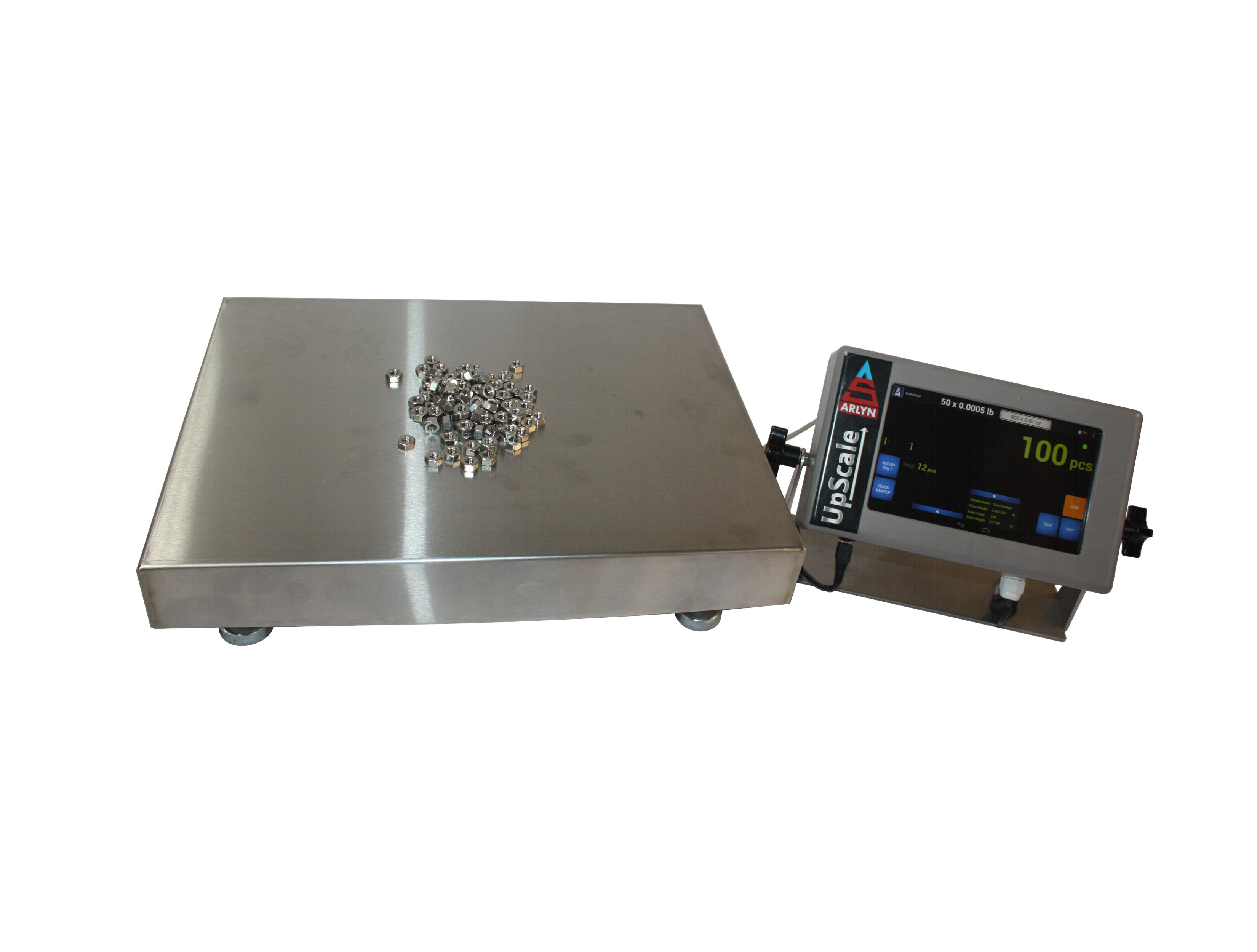

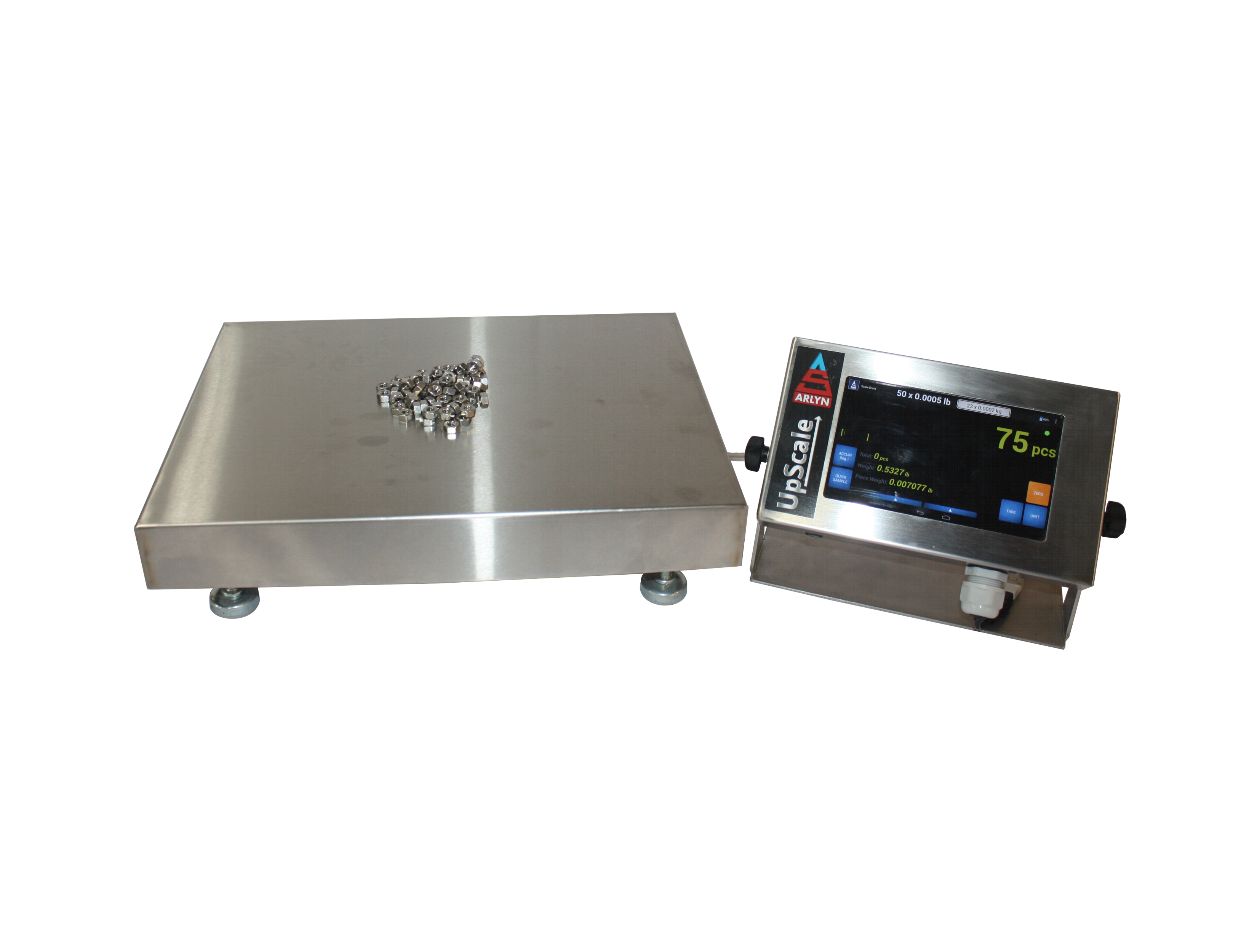

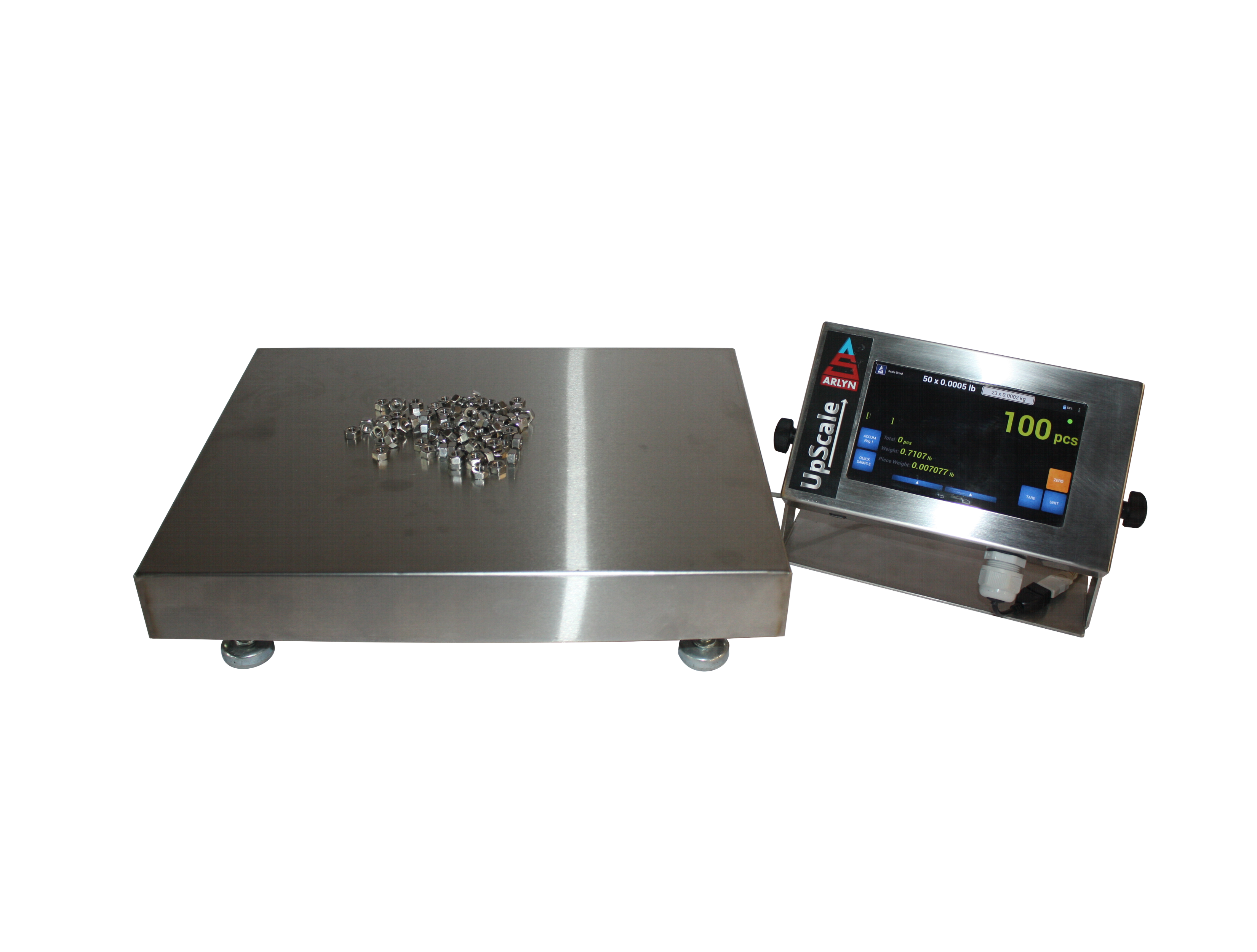

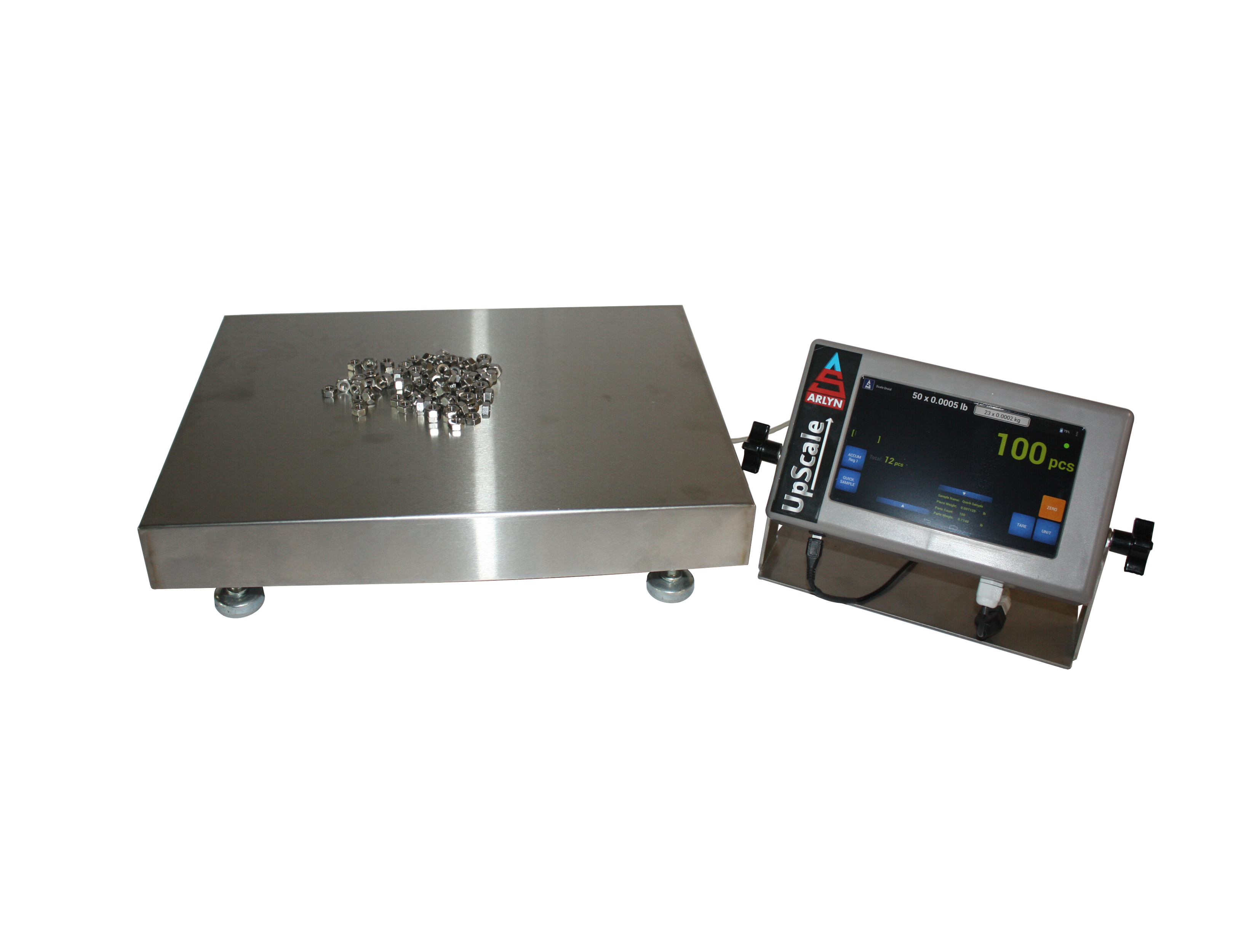

Can I use these scales for parts counting or batching?
Absolutely. All SAW models include parts counting as a standard feature, with superior accuracy for lightweight or high-value components. Setpoints, batching, and process automation features are available with relay and control upgrades.
How do I connect the scale to my computer, PLC, or ERP system?
All models support USB, Ethernet, RS-232, and industrial protocols like Modbus and PROFINET (UpScale required). You can log data locally, to a PC, or direct to the cloud using Google Sheets or AxChange Monitoring.
What is the overload protection on these scales?
Ultra Precision SAW Scales are built tough, with 250% safe overload protection and warnings at 102% capacity. They are designed to handle real-world shocks without damage.
Are intrinsically safe models available?
Yes. For hazardous or classified environments, Arlyn offers FM Approved, intrinsically safe Ultra Precision SAW models. See our ArlynGuard S Series or contact our team for more details.
Can I order a custom platform size or configuration?
Definitely. We manufacture in the USA and offer custom platform sizes, capacities, multi-platform systems, and special configurations for unique applications. Contact us for tailored solutions.
What kind of support can I expect?
You receive direct support from our Long Island, NY facility—engineers and technicians who know your scale inside and out. We pride ourselves on responsive, knowledgeable service, from initial setup to ongoing maintenance.
