Large Ultra Precision Scales 20x Readability - Capacities from 90 kg (1g) to 450 kg (5g)

Starting at $2199
Configure and Buy

Overview

Arlyn's Large Ultra Precision Scales offer accuracy that is 10x better than regular scales at a factory direct cost that can't be beat. Intrinsically Safe Ultra Precision Scales are now available. See our ArlynGaurd S Product line or call us at (800) 645-4301 for further details. Click here for regular sized Ultra Precision Scales. See more product details
Model SAW-HL SAW-JL SAW-KL SAW-KXL SAW-MXL
Capacity x Readability 200 lb x .002 lb 90 kg x 1 g 300 lb x .002 lb 135 kg x 1 g 500 lb x .005 lb 225 kg x 2 g 500 lb x .005 lb 225 kg x 2 g 1000 lb x .01 lb 450 kg x 5 g
Linearity* 1:40,000 of Full Capacity
Response Time (avg) Filtered: 0.5 sec - 1 sec, Unfiltered: 0.01 sec - 0.2 sec
Display Update 0.4 sec
Allowable Ambient Temperature 10ºF - 120ºF
Sensitivity Drift (15C-35C)* approx.+/- 5 ppm
Accuracy 0.01%
Safe Overload 250%
Power Consumption 1W
Pan Size 20" x 23" 20" x 23" 20" x 23" 31.5" x 31.5" 31.5" x 31.5"
Price $2199 $2399 $2699 $3499 $3899
*Typical

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CLICK HERE FOR REGULAR SIZED ULTRA PRECISION SCALES***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

Arlyn's Large Ultra Precision Scales offer a superior accuracy at a factory direct cost that can't be beat. The scales use the same technology as Arlyn's Ultra Precision Scales, but they utilize larger load cells to accommodate even bigger capacities. Using an all digital Surface Acoustic Wave (SAW) transducer, these scales provide more than 10 times better accuracy than any other scale in its price range. As a bonus, they are also more rugged than regular scales, and can be used in a wide variety of industrial applications. Check our Scale Technology Section for further details.

Super Sensitivity

A regular 1000 lb capacity scale offers a resolution of 0.2 lb. The 1000 lb SAW-MXL scale gives amazing sensitivity of 0.01 lb! Other capacity scales give similar improvements.

Full Functioned

Enjoy easy viewing on a 1" high dot matrix LCD display. The scale offers a variety of different weighing units (g, lb, oz, kg, etc.). The scale provides automatic zero tracking and stability control. A wide variety of options are available, including Parts Counting, RS-232, Ethernet, rechargeable battery pack, Setpoint controller for automatic filling, and others.

Super Accuracy

Regular scales generally provide accuracy in the range of 0.1%. SAW scale accuracy is typically between 0.01% and 0.005%, which is ten to twenty times better. The internal resolution is up to 1 part in 2 million!

No Set Up

No set up or dealer service required. Automatic calibration

Rugged Construction

The Large Ultra Precision Scales models have Stainless Steel frame construction topped with Stainless Steel pans. The frames are built strong enough to hold heavy loads that these scales are specified for. Even though the scales are amazingly accurate, you do not have to be amazingly careful in using them. In fact, they can accept up to 2.5 times the rated load without damage. They are designed to be used in difficult industrial situations

Wide Range of Capacities

Even though the scales are amazingly accurate, you do not have to be amazingly careful in using them. In fact, they can accept up to 2.5 times the rated load without damage. They are designed to be used in difficult industrial situations.

AxChange Cloud Monitoring

Monitor and Track your industrial scales on the cloud, anywhere on any device using the new AxChange Cloud Monitoring and Weight Tracking system. Limited free beta accounts available.

Intrinsically Safe Versions Available

For hazardous or classified environments, we now manufacture approved Intrinsically Safe Ultra Precision Scales equipped with FM Approved display indicator and SAW load cell sensors. See our ArlynGuard S Product line or contact us at (800) 645-4301 for further details.

Available Upgrades

Display
Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
Industrial Interfaces (UpScale Display Only)
  • MODBUS RTU/ASCII
  • MODBUS TCP
  • EtherNet/IP
  • PROFINET
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24V Power

Specifications

Brochure & Datasheet Large Ultra Precision SAW Series Scales - Specification Sheet (PDF)

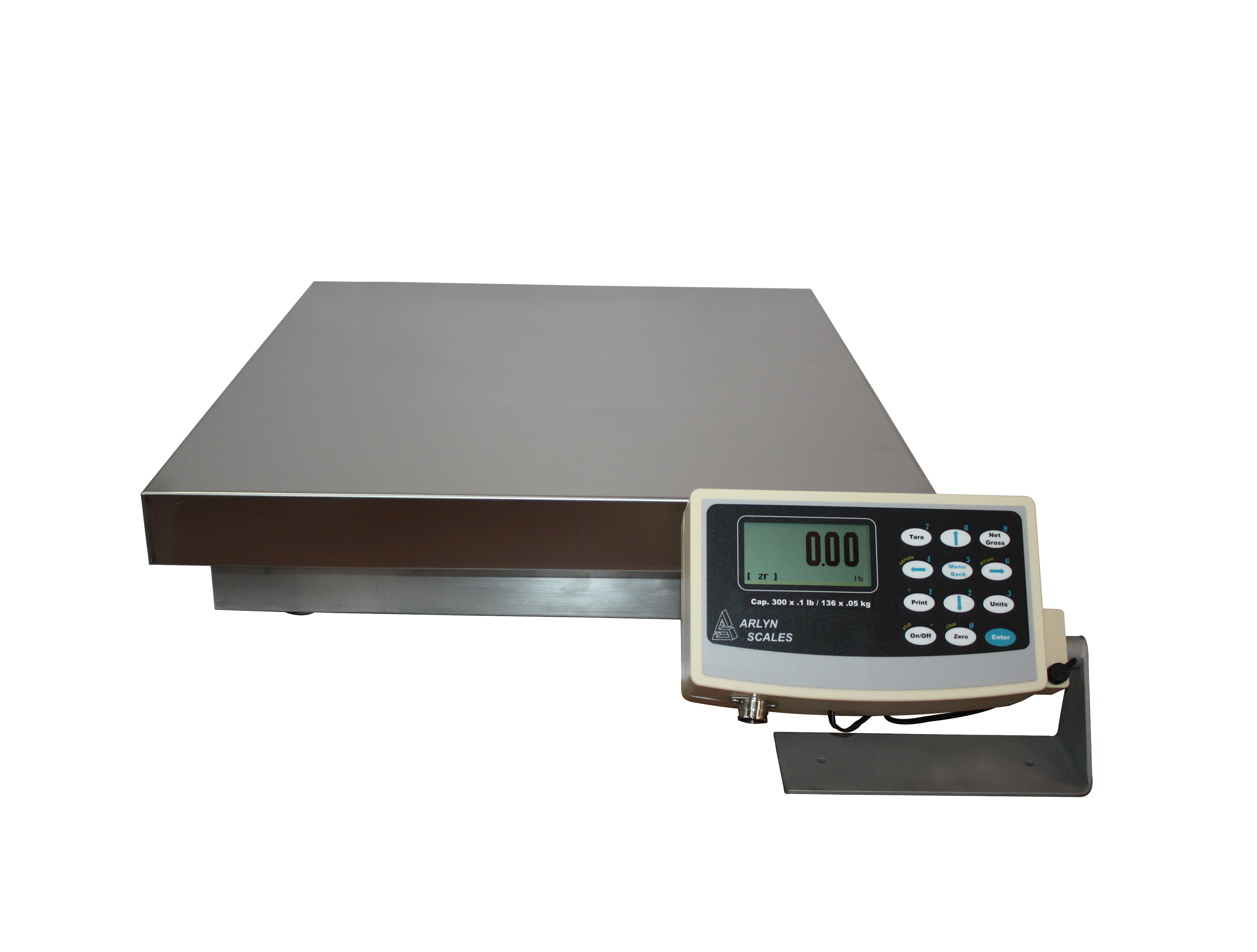

MKE-5 Digital Indicator Included 1" high graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable.

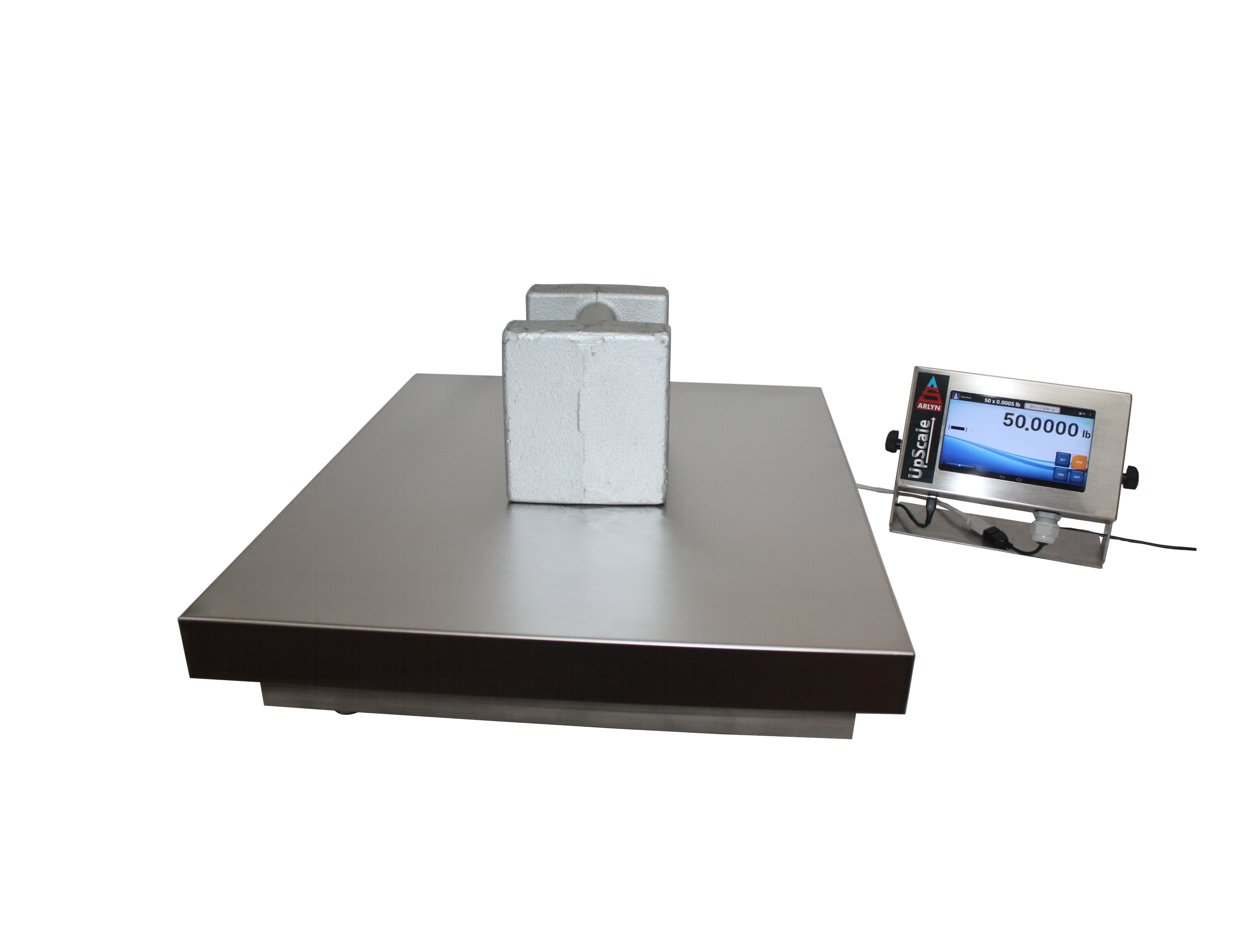

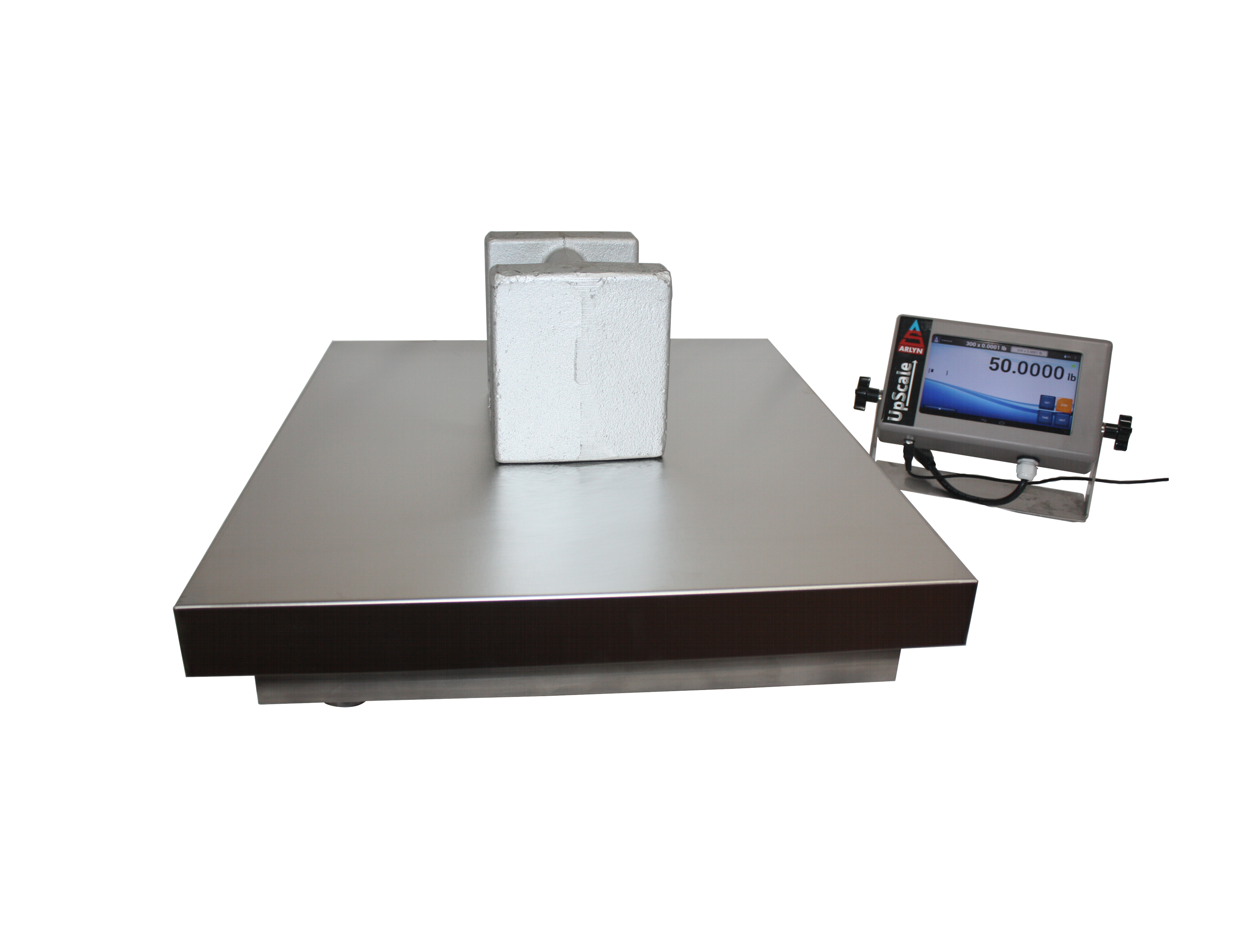

UPSCALE-9 Indicator Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable.
Platform Size See Capacities and Platform Sizes.
Construction Stainless Steel Frame, Stainless Steel Pan.
Power Requirements 117 VAC, 50/60 Hz. (Optional 24V Supply Available)
Accuracy See Capacities and Platform Sizes.
Operating Temperature 10°F to 120°F
