photo-scaletechThe scale industry has traditionally offered two major technologies, Strain Gage and Force Restoration (also known as Force Motor). Arlyn Scales has developed and introduced to the market a superior, third technology called Surface Acoustic Wave, or SAW (Surface Acoustic Wave) scales.

Strain Gage scales are the most widespread. They are also the least expensive. Typically, the resolution is 1:5,000 (1 part in 5,000). So a scale with a capacity of 50 lb will have a resolution of 0.01 lb. Likewise, a scale with a capacity of 100 lb will have a resolution of 0.02 lb. Premium scales will stretch this to 1:10,000. Recently, with the advent of modern electronics and compensation schemes, some vendors have offered much higher resolution. But actual accuracies have remained fairly similar, so very little is gained.

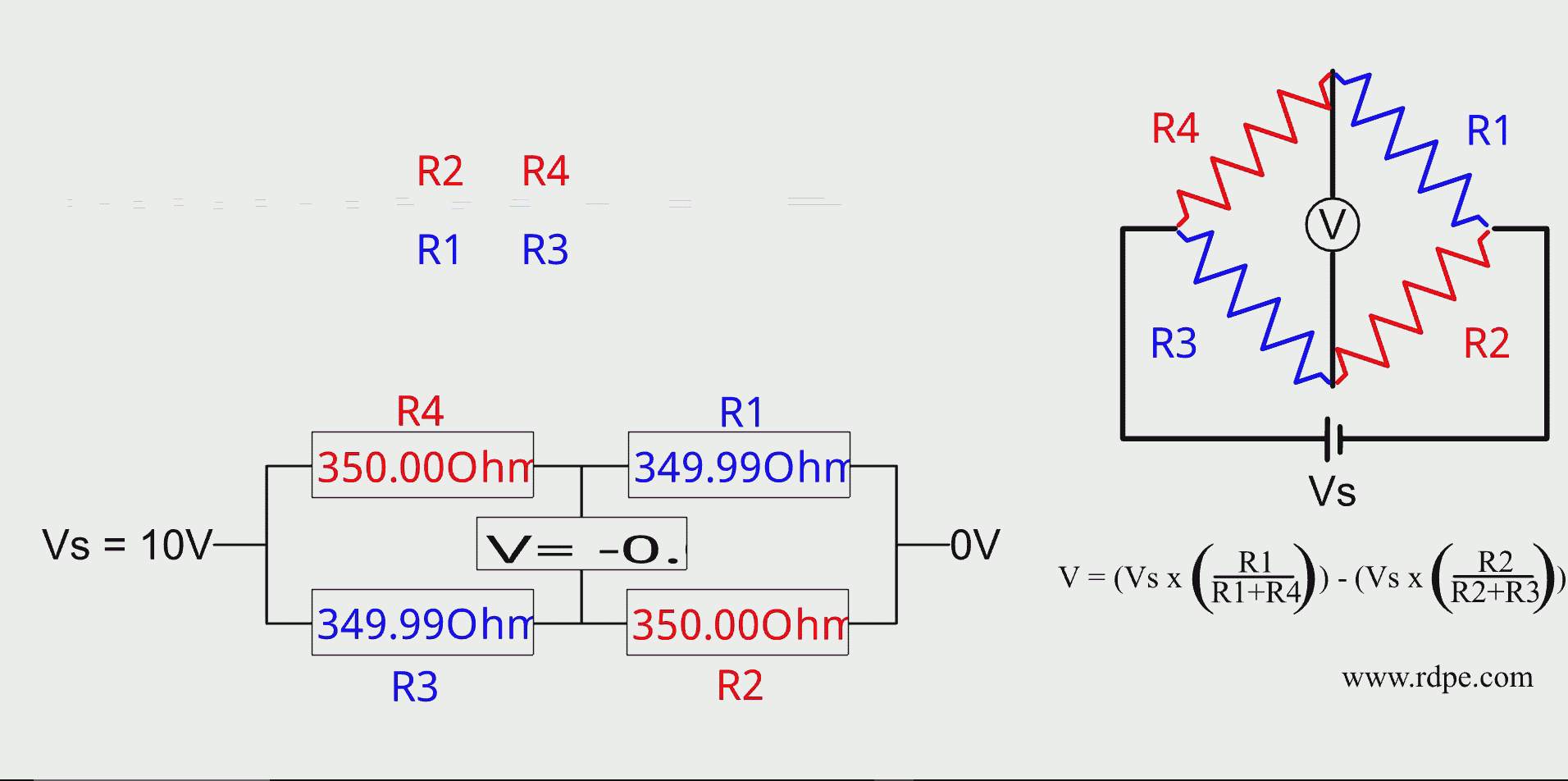

The above diagram illustrates the operation of a Strain Gage scale. The load cell can be considered to be like a diving board. A weight is placed on the left had side will cause the load cell to bend downwards. When the weight is removed, the load cell springs back up. The four strain gages are wired together in the format of a Wheatstone bridge. The output voltage of the bridge will vary in direct proportion to the load on the load cell.

The majority of Strain Gage scales use load cells made out of aluminum. This helps keep the cost down, because aluminum is relatively inexpensive, and easier to machine into the required shapes. Higher end scale will choose to use plated steel, and the premium units, such as those offered by Arlyn Scales, use stainless steel. This tends to provide increased ruggedness and durability.

Force Restoration scales use the principal of an electromagnet force opposing the weight on the scale platform. This has the advantage of very high resolution and accuracy ranging from 1:50,000 to 1:150,000 or even higher. It has disadvantages that include some temperature instability and drift, and difficulty in implementing in scales with capacities of 50 lb and greater. It can also be prone to damage from overload and shock loading. Perhaps the greatest disadvantage is the cost, which can range from four times to more than ten times the cost of Strain Gage scales.

Android ScaleArlyn’s new internationally patented SAW scales (Surface Acoustic Wave) incorporate similar technology to that used in fabricating semiconductor integrated circuits to produce an extremely precise digital output. They are available as lower capacity Bench Scales and as Platform Scales in capacities as high as 1000 lbs. These models are twenty times more accurate than Strain Gage scales, but less than ½ the cost of equivalent Force Restoration Scales. Whereas a high quality 100 lb capacity Strain Gage scale may have a resolution of 0.01 lb, Arlyn’s 100 lb SAW Scale has an amazing resolution of 0.001 lb.

The large load cell block is extraordinarily rigid, providing unequaled levels of overload and shock tolerance. Temperature Stability is also superior.

When the low cost is also considered, these new industrial grade scales are the closest thing to perfect.


Advanced Strain Gauge Force Restoration SAW Standard Strain Gauge
Resolution 1:10,000 1:150,000 1:150,000 N/A
Repeatability 1:10,000 1:100,000 1:100,000 N/A
Linearity 1:10,000 1:60,000 1:60,000 N/A
Creep 1:5,000 not reported 1:40,000 N/A
Sensitivity Drift 20 ppm/C
(5¡ to 35¡C)
3 – 10 ppm/C (10¡ to 35¡) 3 ppm/C
(-10¡ to 55¡C)
Battery Operation Optional No Optional N/A
Overload (Ruggedness) ~150% rated Capacity ~150% rated Capacity > 500% rated capacity N/A
Cost at [X] LB Capacity 100% 400%-500% 100% N/A
