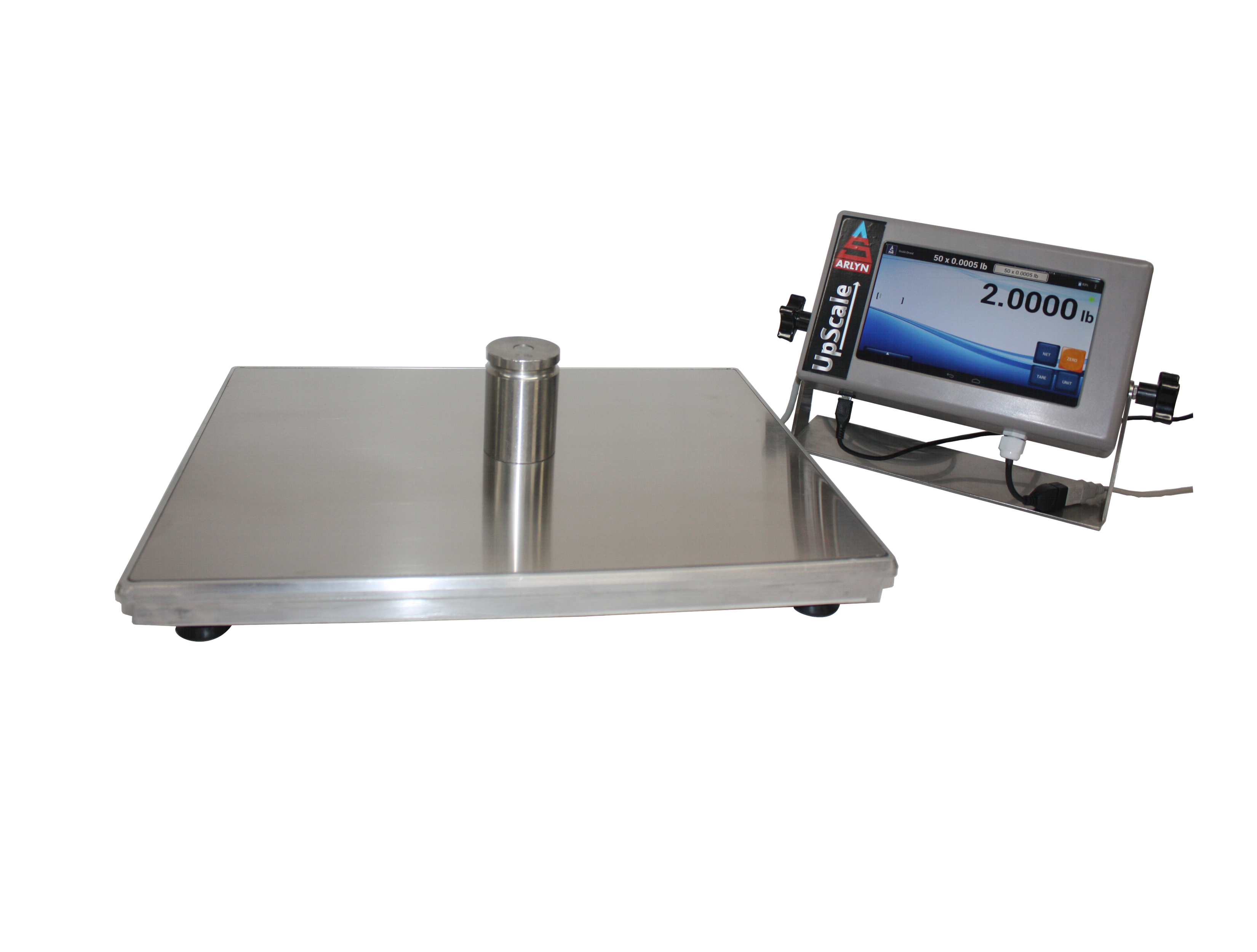

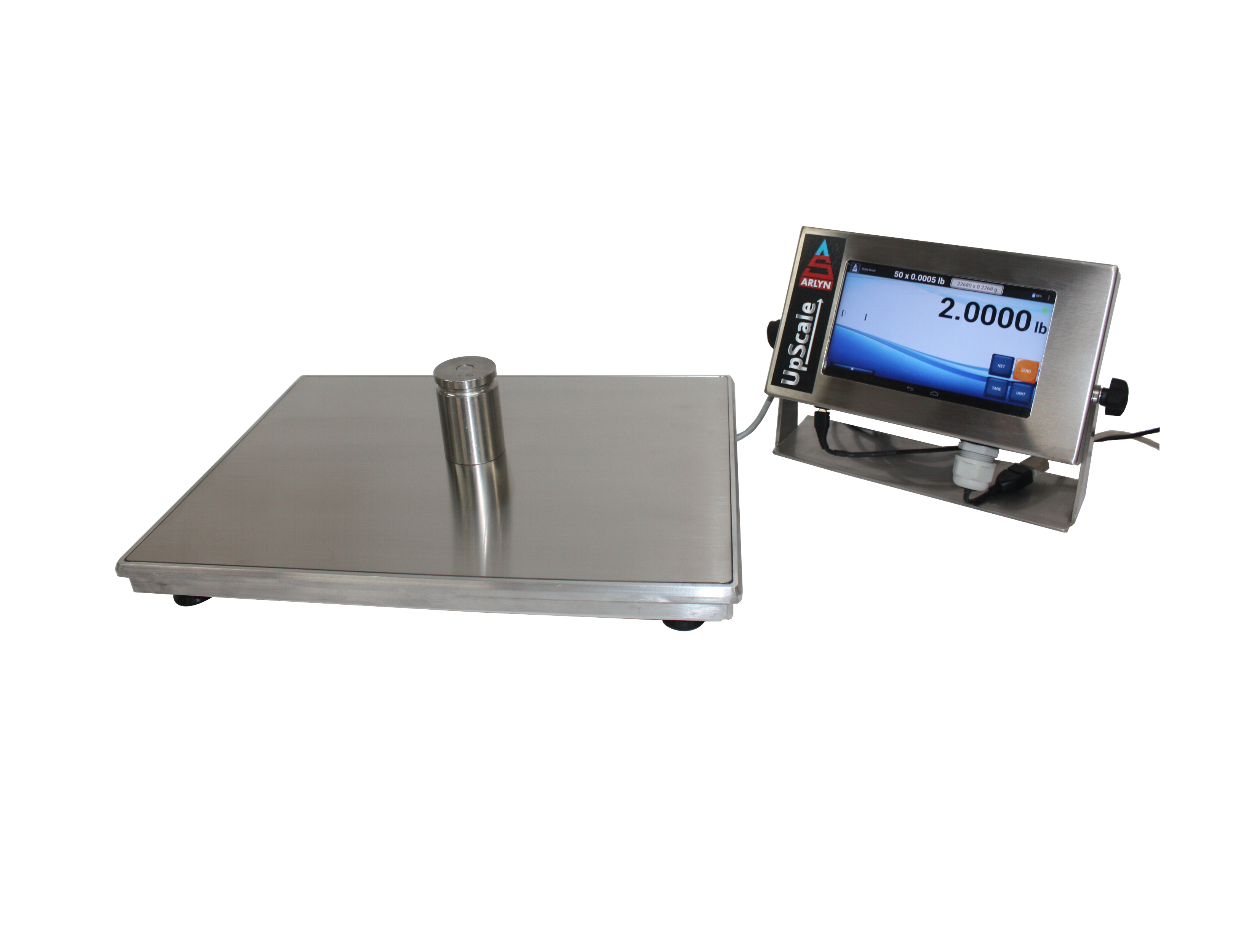

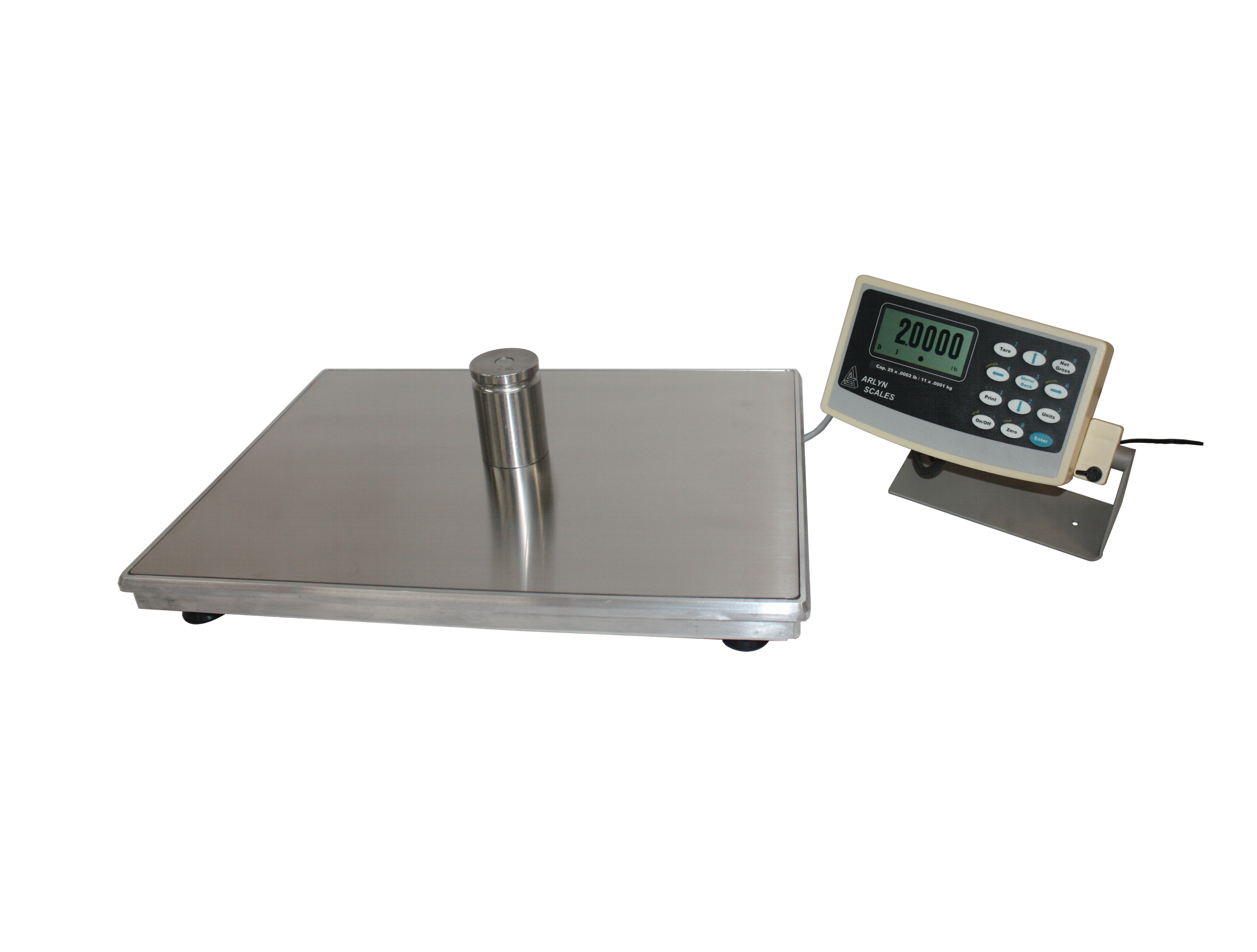

Industrial Bench Scales with Strain Gauge Technology

Starting at $549
Configure and Buy

Overview

Each industrial weighing application requires different levels of accuracy and resolution. But every application needs bench scales that are well designed, durable, cost effective and easy to use. See more product details
Product Code Capacity & Resolution Platform Size Price
620X 10 lb x 0.002 lb, 5 kg x 1 g 12” x 16” $549
620T 25 lb x 0.005 lb, 12 kg x 2 g 12” x 16” $549
620L 50 lb x 0.01 lb, 22 kg x 5 g 12” x 16” $549
620C 100 lb x 0.02 lb, 45 kg x 10 g 12” x 16” $549
620F 150 lb x 0.05 lb, 67 kg x 20 g 12” x 16” $549
D-620X 10 lb x 0.001 lb, 5 kg x 0.5 g 12” x 16” $749
D-620T 25 lb x 0.002 lb, 12 kg x 1 g 12” x 16” $749
D-620L 50 lb x 0.005 lb, 22 kg x 2 g 12” x 16” $749
D-620C 100 lb x 0.01 lb, 45 kg x 5 g 12” x 16” $749
D-620F 150 lb x 0.02 lb, 67 kg x 10 g 12" x 16" $749
SAW-X 10 lb x 0.0001 lb, 5 kg x 0.05 g 12” x 12” $1299
SAW-T-16 25 lb x .0002 lb, 12 kg x 0.1 g 12” x 16” $1399
SAW-L-16 50 lb x .0005 lb, 22 kg x 0.2 g 12” x 16” $1399
SAW-C-16 100 lb x .001 lb, 45 kg x 0.5 g 12” x 16” $1399
SAW-H-16 200 lb x .002 lb, 90 kg x 1 g 12” x 16” $1699

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

Not every industrial weighing situation requires the same resolution. While accuracy specifications and platform sizes may vary, they all need well designed, durable scales. Arlyn Scales offers quality Industrial Bench Scales ranging from our Standard 6200 strain gauge scales to the select level D-6200 family, all the way to the unrivaled accuracy of the SAW Ultra Precision scales. Explosion environment models are also available. In all cases, our Factory Direct cost is much, much lower than any other equivalent scale.

Sensitive Readings, but Not Sensitive to Use.

A stainless steel load cell means you’ll have a scale that can handle rough use and still provide precise weight results.

Easy to Use

Instead of a simplistic, hard to understand numeric readout, Arlyn Bench Scales utilize state of the art graphics display systems. This means that the scale operator can pay attention to his work, instead of trying to figure out how to make the scale work.

High Precision

Series 6200 scales give excellent readability of 0.02 lb with a capacity of 100 lb. The D-620C doubles that readability to 0.01 lb, with the same capacity. Our SAW-C Ultra Precision unit provides an incredible readability of 0.001 lb, also with 100 lb capacity.

Communication Choices

The modern industrial environment is interconnected. All Arlyn Scales are available with a wide variety of industry standard communication options including Ethernet, Wi-Fi, USB and RS-232.

AxChange Cloud Monitoring

Monitor and Track your industrial scales on the cloud, anywhere on any device using the new AxChange Cloud Monitoring and Weight Tracking system. Limited free beta accounts available.

Intrinsically Safe Versions Available

For hazardous or classified environments, see Arlyn's Intrinsically Safe ArlynGuard B Series Bench Scales and ArlynGuard S Series Ultra Precision Scales equipped with FM Approved display indicator and load cell sensors.

Other Configurations

  • 2-Wire or 3-Wire 4-20mA (no display): These scales can also be configured for applications that do not require a Digital Display Indicator. This is suitable if your application requires this scale with a 2- or 3-wire 4-20mA or 0-5V interface without a display.
  • Load Cell Kits (without platform): We also provide load cell kits with capacities as stated for these types of scales. The kits include the heavy duty stainless steel load cells, legs, and other hardware. The kit can also include the scale display if requested.
For these and other configurations, please contact us or call us at (800) 645-4301 and we will be happy to help.

Available Upgrades

Display
Display Attachment
  • Remote Cable
  • Swing Arm (MKE-5)
Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
Industrial Interfaces (UpScale Display Only)
  • MODBUS RTU/ASCII
  • MODBUS TCP
  • EtherNet/IP
  • PROFINET
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24V Power

Specifications

Brochure & Datasheet 6200 Series Bench Scales - Specification Sheet (PDF)
MKE-5 Digital Indicator 1" High Graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable. (Swing Arm or Remote Cable)
UPSCALE-9 Indicator (Optional) Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable. (Remote Cable only)
Overload Condition Warning at 102% capacity, protected to 150% capacity.
Platform Dimensions (620X and up) 12" x 16", Approximately 17 lbs shipping weight.
Power Requirements 117/220 VAC, 50/60 Hz. Optional 24VDC Available.
Current Consumption Approx. 0.1A
Accuracy 0.1% of full scale.
Operating Temperature 14°F to 104°F
Weight Features Adjustable Filter constants, adjustable display speed, automatic calibration.
Minimum Sampling Rate - Strain Gauge 10 Hz
