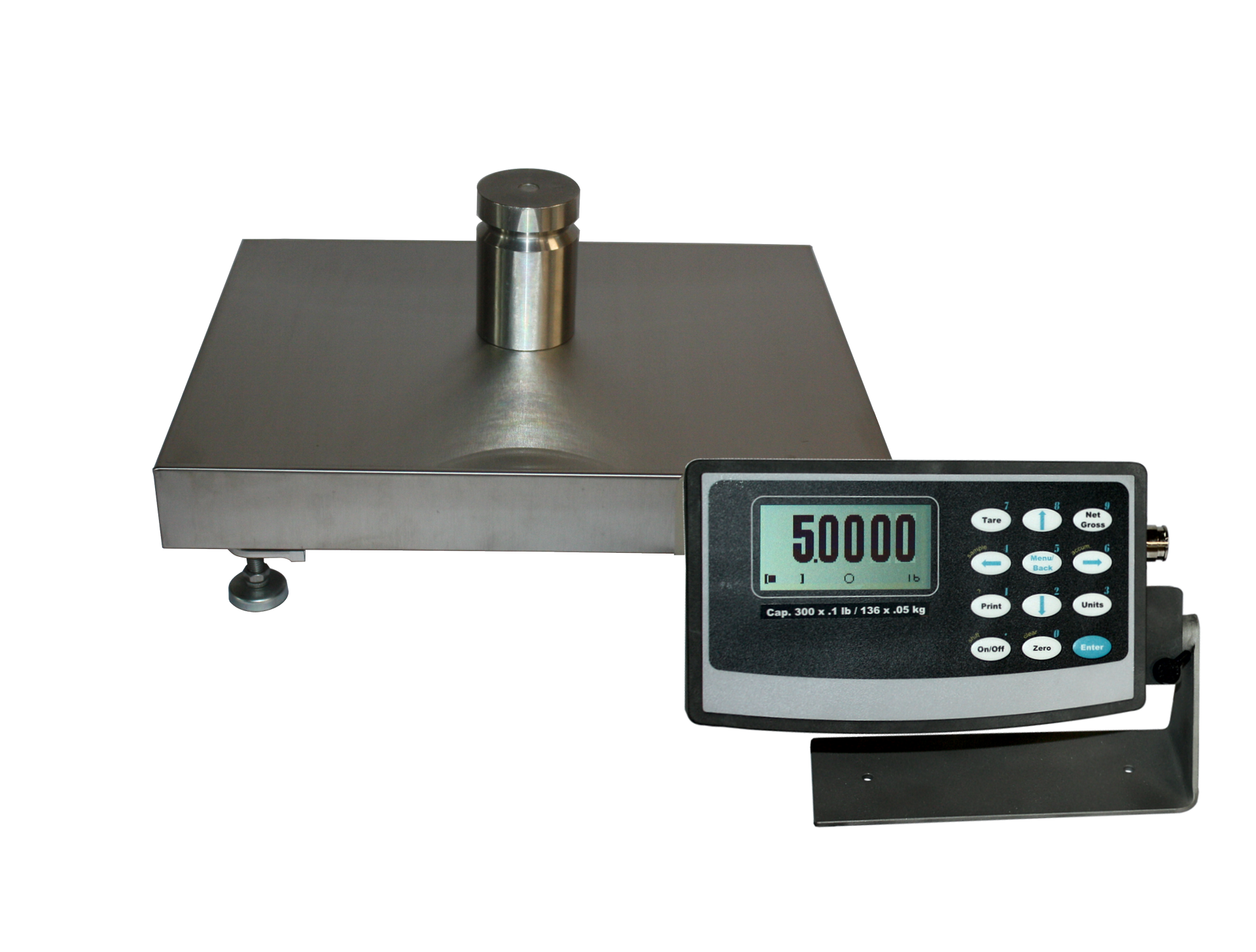

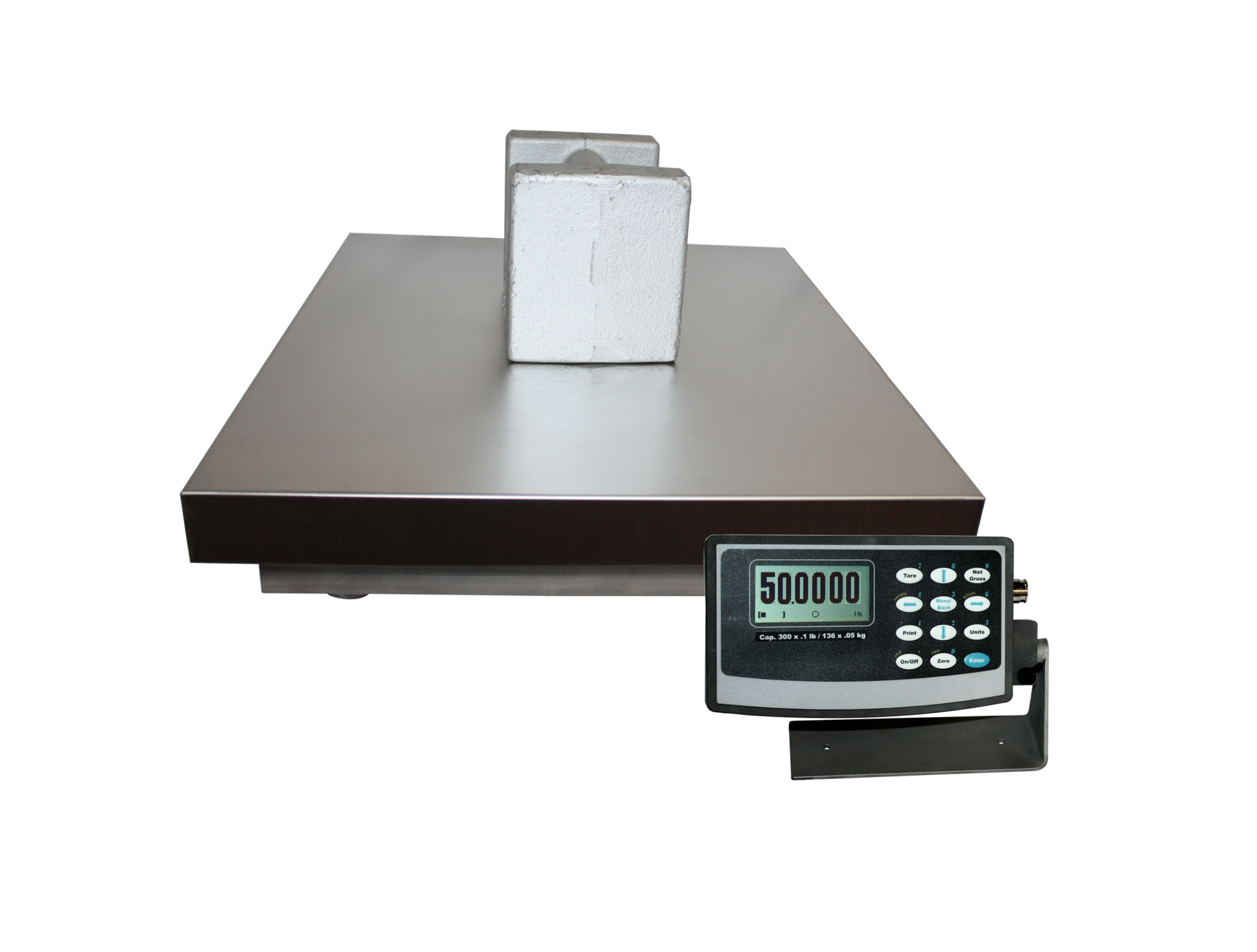

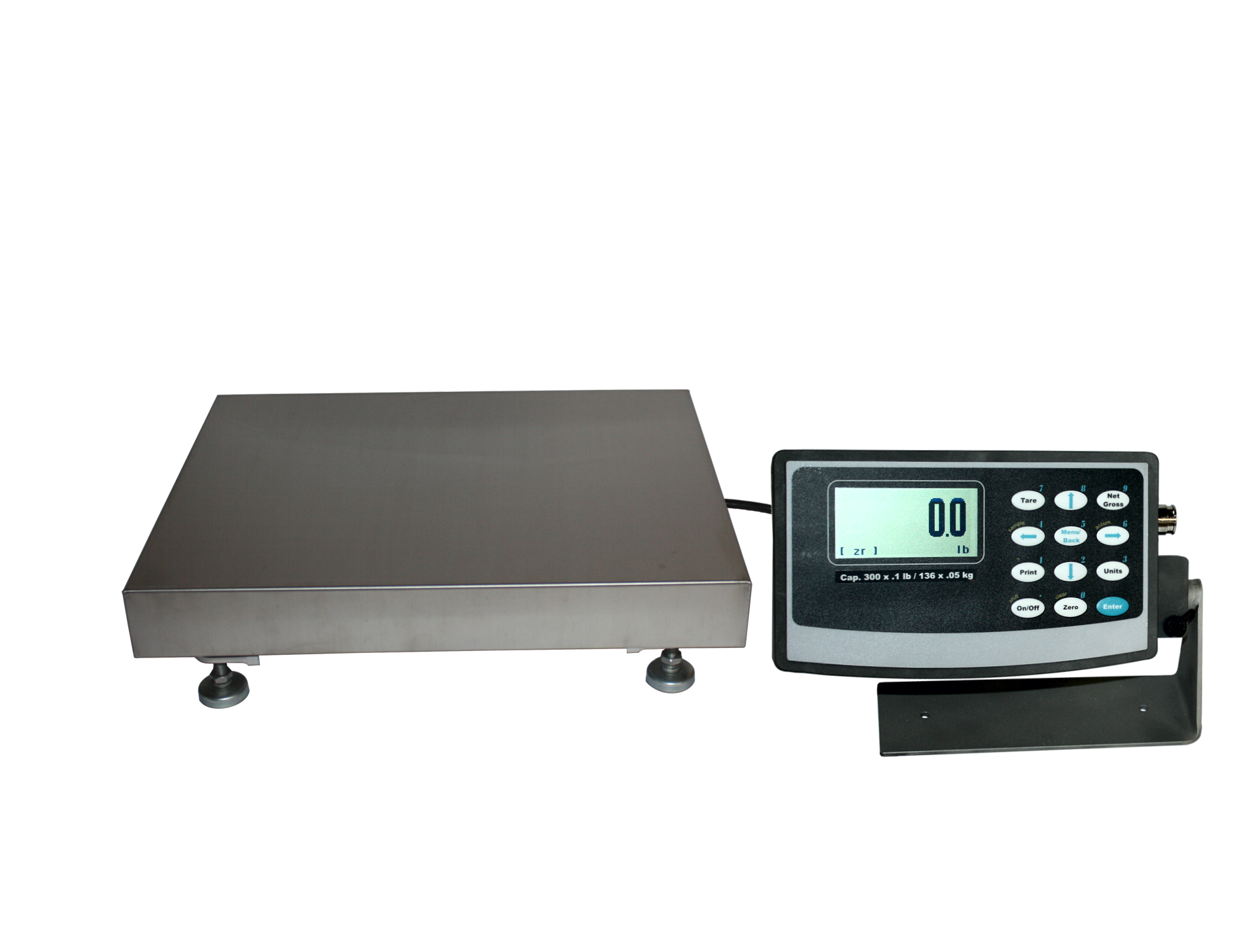

ArlynGuard S Intrinsically Safe Ultra Precision Scales - 5Kg (0.05g) - 450Kg (5g)

Starting at $2399
Configure and Buy

Overview

Many industrial environments are classified to be hazardous, due to flammable or explosive fumes or liquids, or high concentrations of dust. Arlyn's Intrinsically Safe Ultra Precision Scales are appropriate for most of these environments. They are also 10x the accuracy of regular strain gauge scales. This scale uses state-of-the-art Surface Acoustic Wave (or SAW) technology to bring you the highest precision in comparison to other approved Intrinsically Safe scales in the industry. AC Powered System now available. Call for details and pricing. View Configurations See more product details
Product Code Capacity & Resolution Platform Size Price
S10 10 lb x .0001 lb (4.5 kg x .05 g) 12" x 12" (Optional 12" x 16") $2399
S25 25 lb x .0002 lb (12 kg x .1 g) 12" x 12" (Optional 12" x 16") $2399
S50 50 lb x .0005 lb (22 kg x .2 g) 12" x 12" (Optional 12" x 16") $2399
S100 100 lb x .001 lb (45 kg x .5 g) 12" x 12" (Optional 12" x 16") $2399
S200 200 lb x .002 lb (90 kg x 1 g) 12" x 12" (Optional 12" x 16") $2699
S200-L 200 lb x .002 lb (90 kg x 1 g) 20" x 23" $3299
S300-L 300 lb x .002 lb (135 kg x 1g) 20" x 23" $3599
S500-L 500 lb x .005 lb (225 kg x 2 g) 20" x 23" $3899
S500-XL 500 lb x .005 lb (225 kg x 2 g) 31.5" x 31.5" $4699
S1000-XL 1000 lb x .01 lb (450 kg x 5 g) 31.5" x 31.5" $5099

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

The Ultra Precision Scale is the flagship product of Arlyn Scales. But now, it comes with Intrinsically Safe version as well. The new ArlynGuard S comes equipped with an Intrinsically Safe Ultra Precision SAW Load Cell sensor that provides 10x the accuracy of regular scales. If your needs require a scale that needs to have a resolution of 1:100,000, to operate in explosive, flammable or other hazardous conditions, then the ArlynGuard S would be a perfect scale for that application.

New Features

ArlynGuard scales can now be configured in multiple ways to meet the needs of specific applications. AC Powered Systems are now available (see Configuration #2). Secondary Safe Area display configurations are also available. These and other configurations are illustrated here. Contact us at (800) 645-4301 for more details.

Intrinsically Safe

Intrinsically Safe for use in Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; Temperature Class T3C Tamb = -25°C to +40°C; Temperature Class T3B Tamb = -25°C to +60°C in accordance with Control Drawings specified; Intrinsically safe apparatus for use in Class I, Zone 0, AEx ia IIC T3 Ta = -25°C to+60°C; in accordance with Control Drawings specified; Nonincendive for use in Class I, II, III, Division 2, Groups A, B, C, D, E, F & G; Temperature Class T6 Tamb = -25°C to +60°C; in accordance with Control Drawings specified; Hazardous (Classified) Locations.

Super Sensitivity

A regular 100 lb capacity scale offers sensitivity of 0.02 lb. The 100 lb SAW scale gives amazing sensitivity of 0.001 lb! Other capacity scales give similar improvements.

Super Accuracy

Regular scales generally provide accuracy in the range of 0.1%. Ultra Precision Surface Acoustic Wave (or SAW) scales accuracy is 10x more accurate at 0.01% of Full Scale. The internal resolution is up to 1 part in 2 million!

Super Versatile with Safe Area Indicator

These scales are available in many capacities, ranging from 10 lb all the way to 2000 lb. A wide variety of communication options, including Ethernet, USB, and RS-232 can be equipped to a remote Safe Area Indicator to provide you communication options that cannot be approved for hazardous locations.

Equipped with Intrinsically Safe Display

All scales in the Explosion Proof category come standard with an Intrinsically Safe MKE-5-IS Large Graphics Display. While other scales have a 7-segment LCD display that are hard to read without a manual, the MKE-5-IS sports a full 128x64 Dot Matrix Display that can provide intuitive control without the need of a manual.

AC Power Available

These scales have an included rechargeable battery supply. For those applications that require the scale to be powered with a power supply outlet, the scales also have the option to be powered externally through a Safety Barrier.

Hazardous (Classified) Communication

The MKE-5-IS display can also be equipped with RS422/RS485 and Setpoint Control to allow communication and valve control within the classified location (subject to classified specification of Entity Parameters).

Enhanced Options

Advanced options, features and outputs such as USB Data Logging, Modbus, Ethernet/Wi-Fi, Integration with Google Spreadsheets, Cloud Monitoring and others are available with Safe Area Configurations. Check out the Upgrades Table below for a list of options we offer.

Available Upgrades

Upgrade Option Available Configuration
Additional Safe Area Display
Power Supply
  • AC Powered System (w/ Intrinsically Safe Zener Barrier)
Hazardous Area Outputs (w/ Included MKE-5-IS Display)
  • RS-422
  • RS-485
Safe Area Outputs (w/ Safe Area Display or Barrier)
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • WiFi TCP/IP Connectivity (UpScale)
Industrial Interfaces (UpScale Display Only)
  • MODBUS RTU/ASCII
  • MODBUS TCP
  • EtherNet/IP
  • PROFINET
Printing (w/ Safe Area Display or Barrier)
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control (w/ Safe Area Display or Barrier)
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
  • All
Data Collection (w/ Safe Area Display or Barrier)
Extras (w/ Safe Area Display Only)
  • Flow Rate Function with Alarms (UpScale)
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)

Specifications

Intrinsically Safe for use in Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; Temperature Class T3C Tamb = -25°C to +40°C; Temperature Class T3B Tamb = -25°C to +60°C in accordance with Control Drawings; Intrinsically safe apparatus for use in Class I, Zone 0, AEx ia IIC T3 Ta = -25°C to+60°C; in accordance with Control Drawings; Nonincendive for use in Class I, II, III, Division 2, Groups A, B, C, D, E, F & G; Temperature Class T6 Tamb = -25°C to +60°C; in accordance with Control Drawings; Hazardous (Classified) Locations.
Brochure & Datasheet ArlynGuard S - Specification Sheet (PDF)
Tare, Zero Range 100 % of Full Scale
Display Speed Adjustable from 0.1 to 0.5 seconds
Overall Indicator Dimensions 8" x 4.8" x 2.5"
Power Requirements
  • Included Battery Supply - Uses (3) NiMH AA batteries. (1 additional set provided with re-charger.)  Batteries must be changed and recharged in safe area!
  • Battery Life - Typical 32 hours of operation. Depends on options equipped.
  • AC Powered Systems are now available (see Configuration #2). Call for details.
Accuracy 0.01% of Full Scale.
Resolution 1:100,000
Linearity* 1:40,000 of Full Capacity
Sensitivity Drift* Approx. +/- 5 ppm (60°F-95°F)
Allowable Ambient Temperature 10°F-120°F
Safe Overload 250% of Full Scale.
Construction 12" x 12", 12" x 16"  models - Aluminum Frame, Stainless Pan. 20" x 23", 31.5" x 31.5" models - Stainless Frame, Stainless Pan.
Display MKE-5-IS Intrinsically Safe Digital Display Included.
Approvals This ArlynGuard scale is equipped with one or more of:
  • Model MKE-5-IS (a) Digital Weight Indicator System
  • Intrinsically Safe SAW-IS Load Cells (Ultra Precision)
which are Factory Mutual (FM) Approved components as per Class 3600:2018, FM Class 3610:2010, FM Class 3611:2018, FM Class 3810:2005, ANSI/ISA 60079- 0:2013, ANSI/ISA 60079-11:2014, ANSI/ISA 61010-1:2004
