Capacities and Resolution
| Model | Product Code | Capacity & Resolution | Price |
DLC-S  | DLC-S10 | 10 lb x .0001 lb, 4.5 kg x .05 g | $899 |
| DLC-S25 | 25 lb x .0002 lb, 12 kg x 0.1 g | $899 |
| DLC-S50 | 50 lb x 0.0005 lb, 22 kg x 0.2 g | $899 |
| DLC-S100 | 100 lb x 0.001 lb, 45 kg x 0.5 g | $899 |
| DLC-S200 | 200 lb x 0.002 lb, 90 kg x 1 g | $1099 |
DLC-SL  | DLC-SL200 | 200 lb x 0.002 lb, 90 kg x 1 g | $1699 |
| DLC-SL300 | 300 lb x 0.002 lb, 135 kg x 1 g | $1799 |
| DLC-SL500 | 500 lb x 0.005 lb, 225 kg x 2 g | $1899 |
| DLC-SL1000 | 1000 lb x 0.01 lb, 450 kg x 5 g | $2499 |
Note: Significant quantity discounts available. Call (800) 645-4301 for pricing. Details

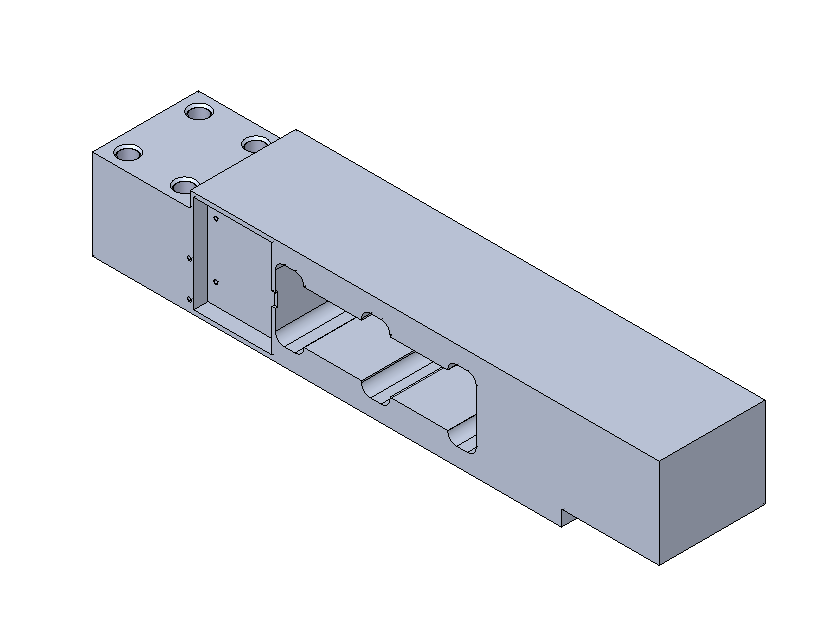

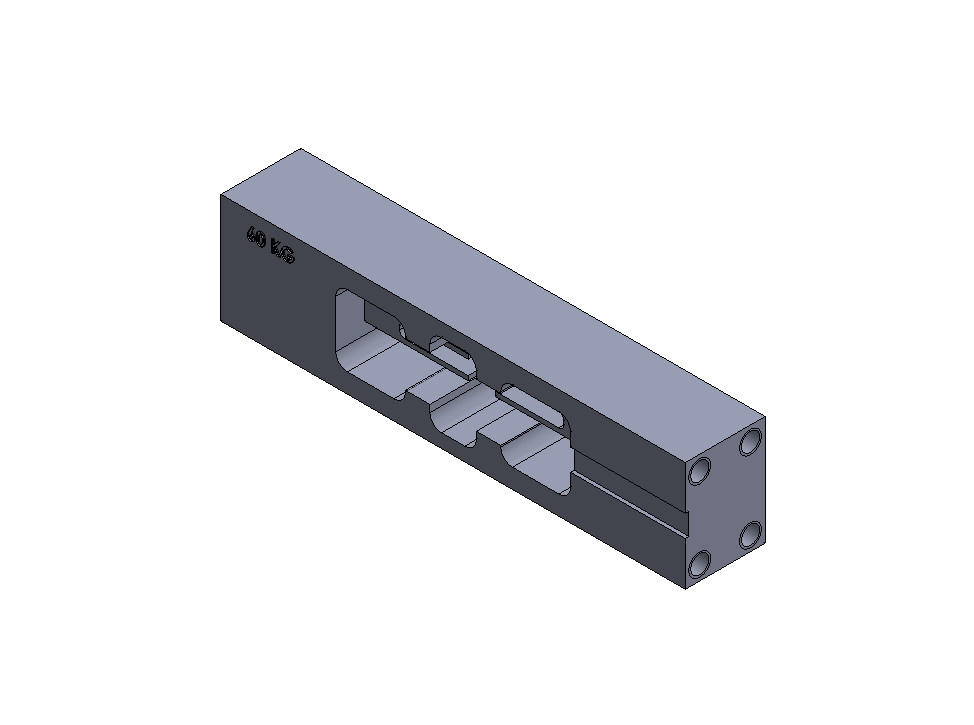

Arlyn Scale Digital Load Cells
Digital Load Cells (DLC) from Arlyn Scales not only provide the tried and tested reliability and ruggedness that is known for the brand, but they also come with ease of use. For more information, visit the
Digital Load Cells brochure page.
Available Upgrades
| Outputs | - Analog Output 4-20mA (or 0-5VDC)
- RS-232 Serial Port
- USB Communication (w/ Virtual Serial Communication)
- Ethernet TCP/IP Connectivity
- WiFi TCP/IP Connectivity (UpScale)
|
Specifications
| Dimensions | - DLC-S: 8" x 2" x 1.5"
- DLC-SL: 16" x 3" x 3"
|
| Electrical | - 110-240VAC Power Adapter Included
- DC Input: 5-9VDC, 150mA
|
| Primary Output Type | RS-232 (Ethernet, RS-485/422, USB & other connectivity options available) |
| Resolution | 1:100,000 |
| Linearity* | 1:40,000 of Full Capacity |
| Response Time (avg) | Filtered: 0.5 sec - 1 sec, Unfiltered: 0.01 sec - 0.2 sec |
| Display Update | 0.4 sec |
| Allowable Ambient Temperature | 10ºF - 120ºF |
| Sensitivity Drift (15C-35C)* | approx.+/- 5 ppm |
| Accuracy | 0.01% |
| Safe Overload | 250% |
| Power Consumption* | 1W |
