Stainless Steel Shear Beam Strain Gauge Digital Load Cells

Starting at $399


Stainless Steel Shear Beam Digital Load Cells come in Stainless Steel construction. They can be equipped on Platform scales as well as large Floor Scales and can be used in various other applications. Capacities range from 500 lb up to 20,000 lb. See more product details

Capacities and Resolution

Model Product Code Capacity & Resolution Single Set of 4
DLC-P DLC-P25 250 lb x 0.05 lb, 113 kg x 20 g $399 $699

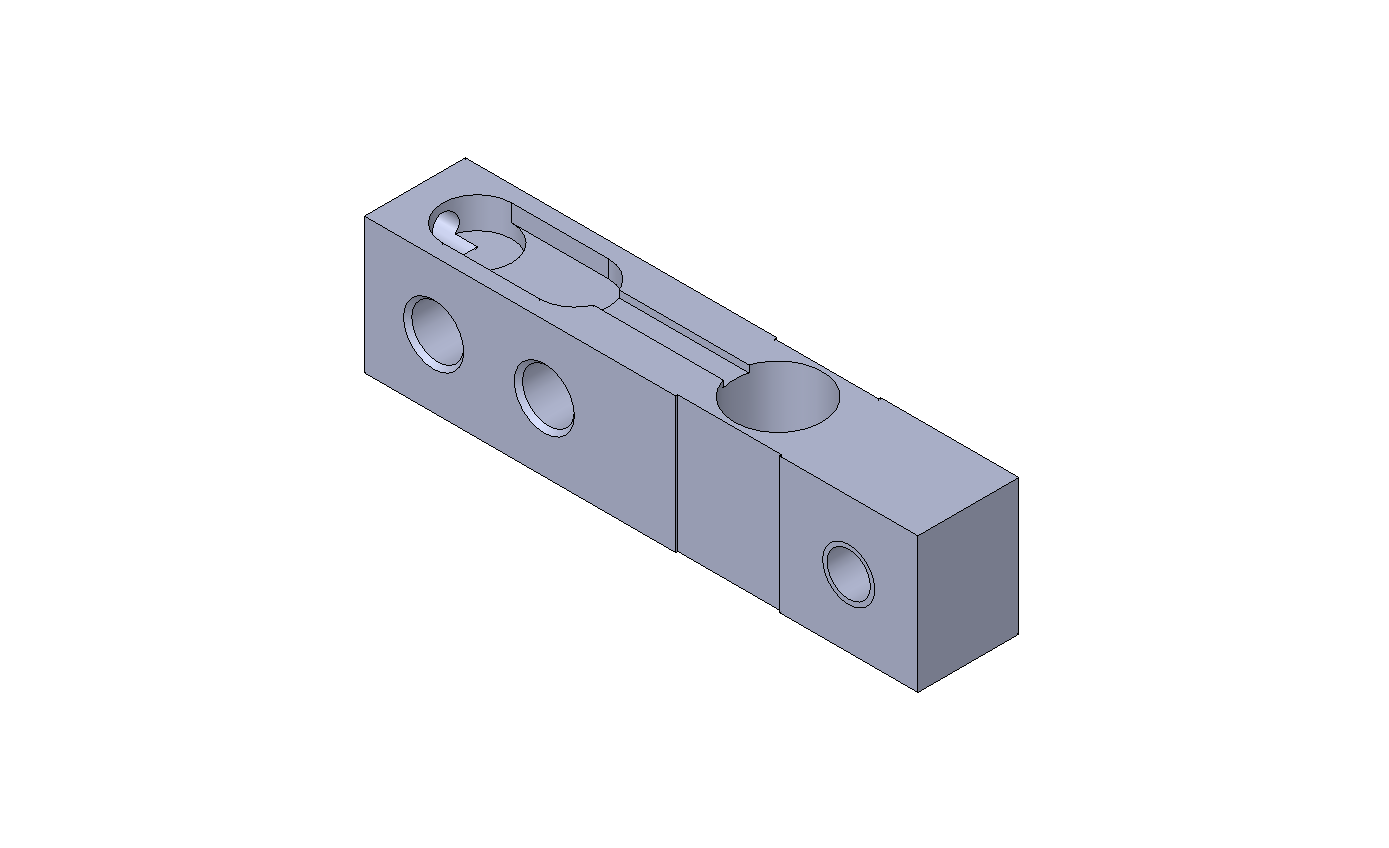

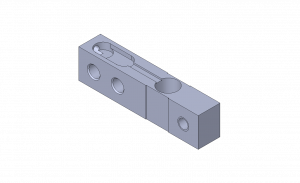

DLC-P50 500 lb x 0.1 lb, 226 kg x 50 g $399 $699
DLC-F DLC-F12 1250 lb x 0.2 lb, 567 kg x 0.1 kg $499 $999
DLC-F25 2500 lb x 0.5 lb, 1134 kg x 0.2 kg $499 $999

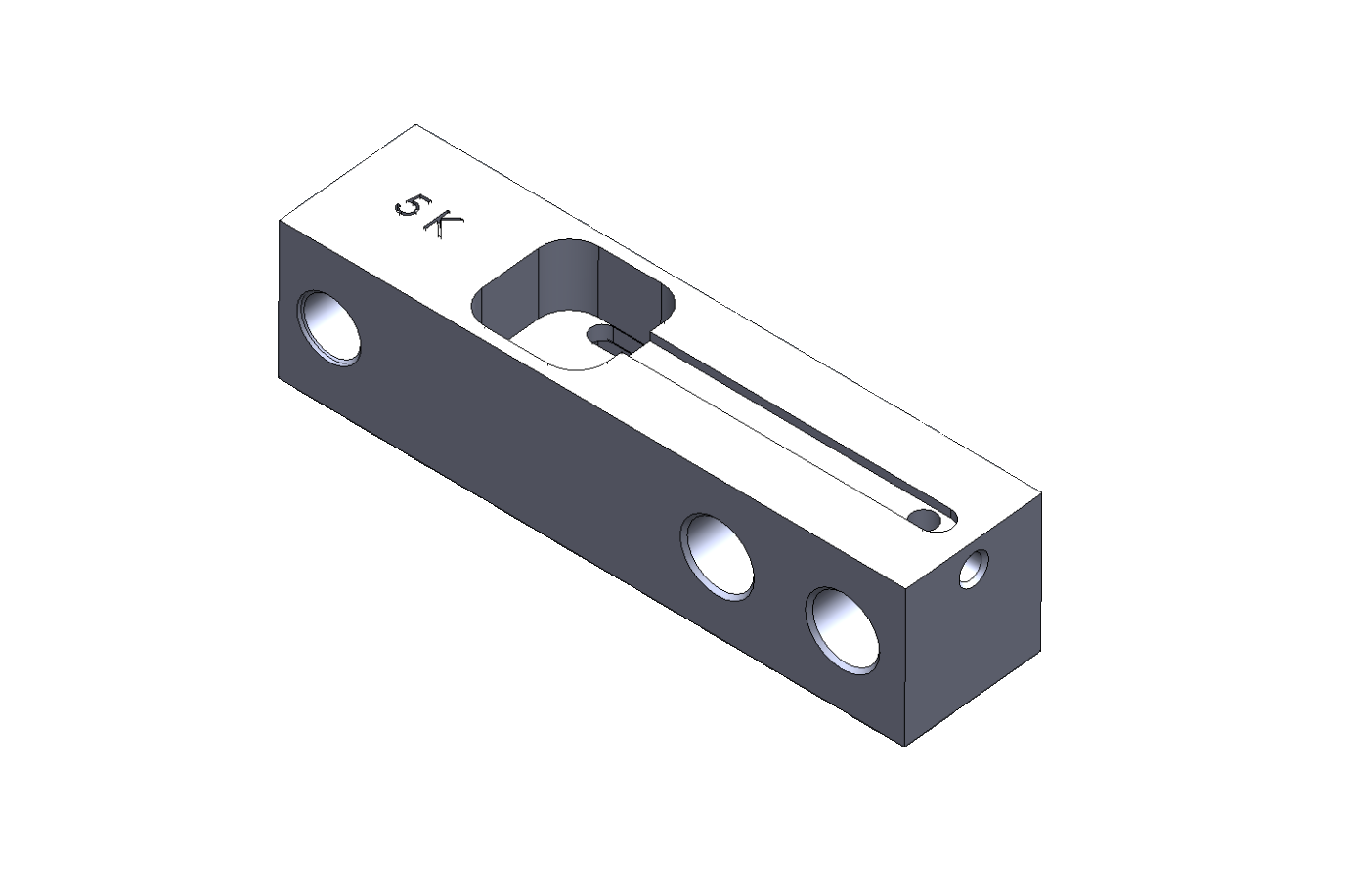

DLC-F50 5000 lb x 1 lb, 2268 kg x 0.5 kg $599 $1299

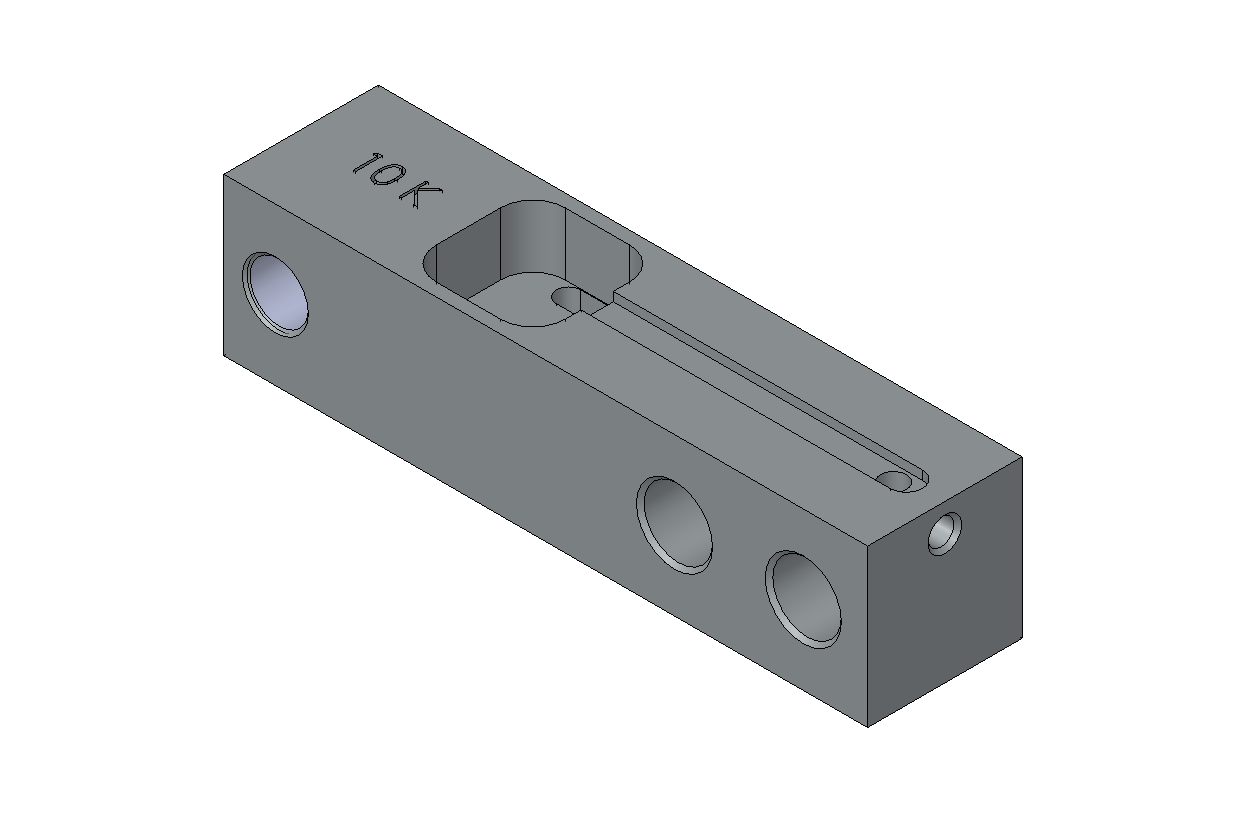

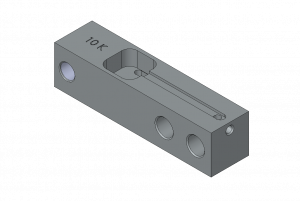

DLC-F100 10000 lb x 2 lb, 4536 kg x 1 kg $699 $1599
Note: Significant quantity discounts available. Call (800) 645-4301 for pricing.


Arlyn Scale Digital Load Cells

Digital Load Cells (DLC) from Arlyn Scales not only provide the tried and tested reliability and ruggedness that is known for the brand, but they also come with ease of use. For more information, visit the Digital Load Cells brochure page.

Available Upgrades

  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • WiFi TCP/IP Connectivity (UpScale)


  • DLC-P: 1.0" x 0.8" x 0.8"
  • DLC-F: 5.0" x 1.2" x 1.3"
Primary Output Type RS-232 (Ethernet, USB, RS-485/422 & other connectivity options available)
Construction Stainless Steel
Load Cell Type Single Point
Maximum Safe Load 150% of Capacity
Size Model Dependent
Power Requirements Bus-Powered USB (5V) Self-powered also available up to 24V.
Accuracy & Repeatability ± 0.1% of Full Scale @ 20°C ± 0.25% of Full Scale above operating temperature range
Zero Shift ± 0.625% Full Scale / 30 days [All Digital Indicator Models]
Operating Temperature 14°F to 104°F (-10°C to 65°C)
Pig Tail Lead 4 conductor, jacketed and shielded
Relative Humidity 0-95% Non-Condensing
Environmental Water Resistant (Not Submersible)
Test Spec EMI/RFI Emission Suppression
Typical Sampling Rate 10 Hz (Changeable)
