Chlorine Ton Scales For Cylinders and Tanks

Starting at $3999
Configure and Buy

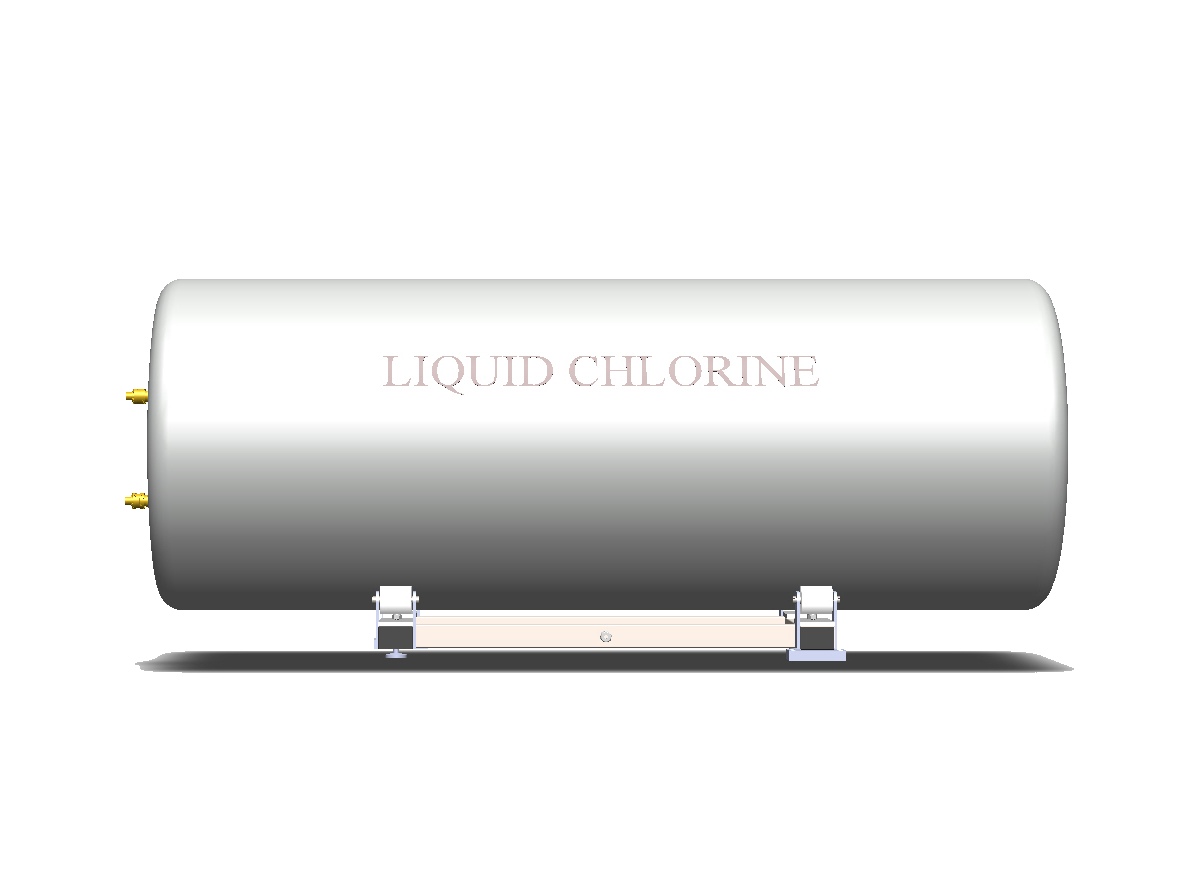

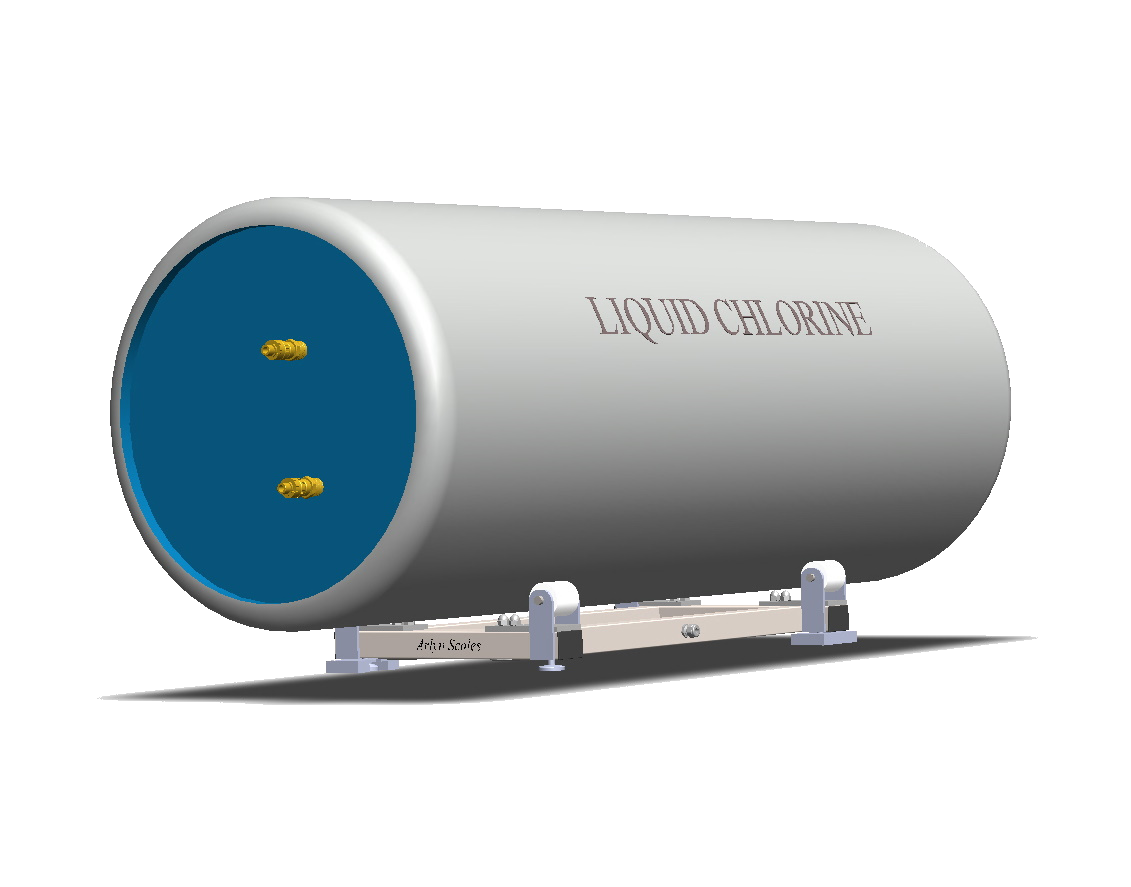

liquid chlorine tank
/wp-content/uploads/2021/03/ct-straight-2.png
liquid chlorine

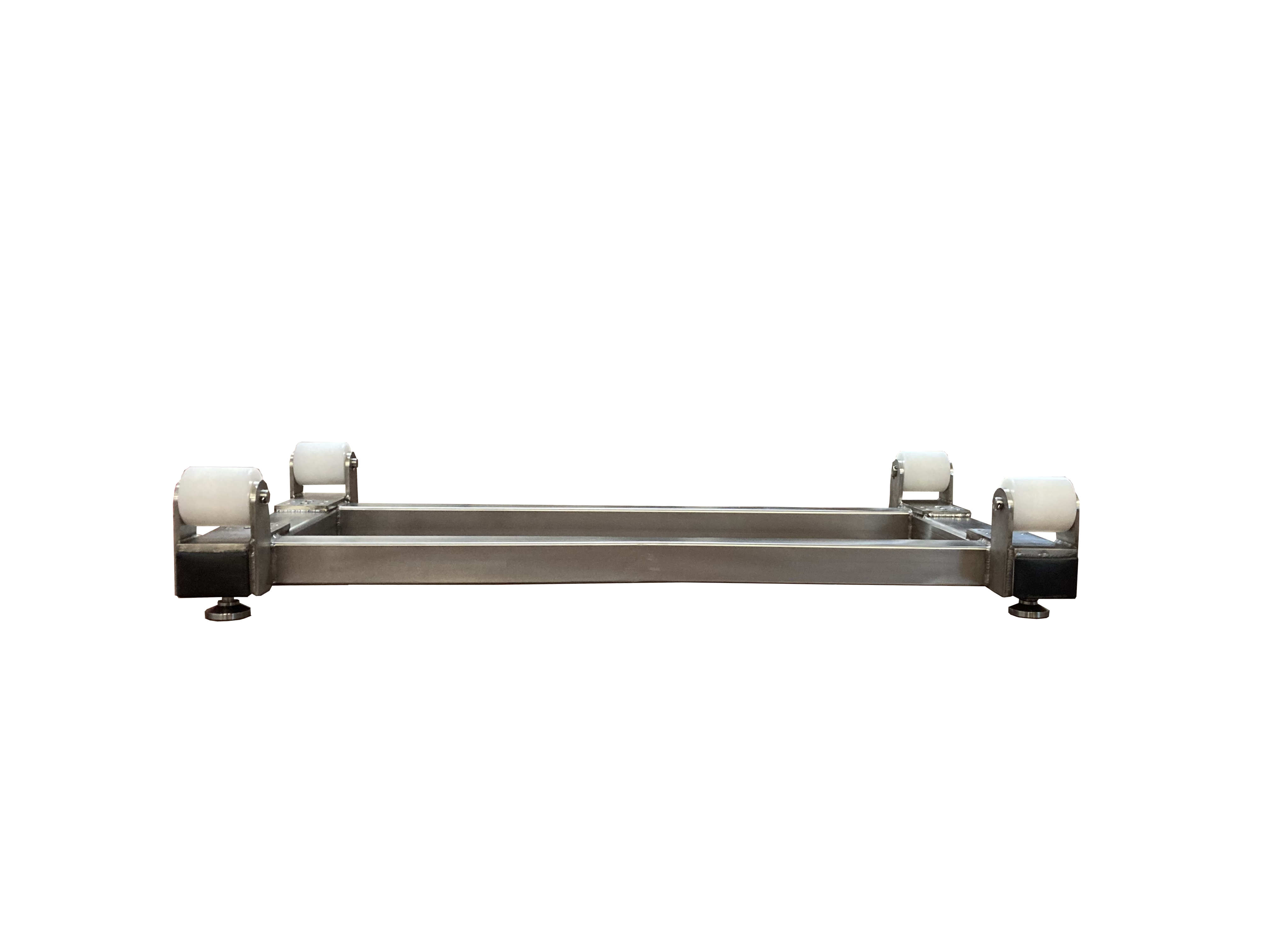

ct-straight-2

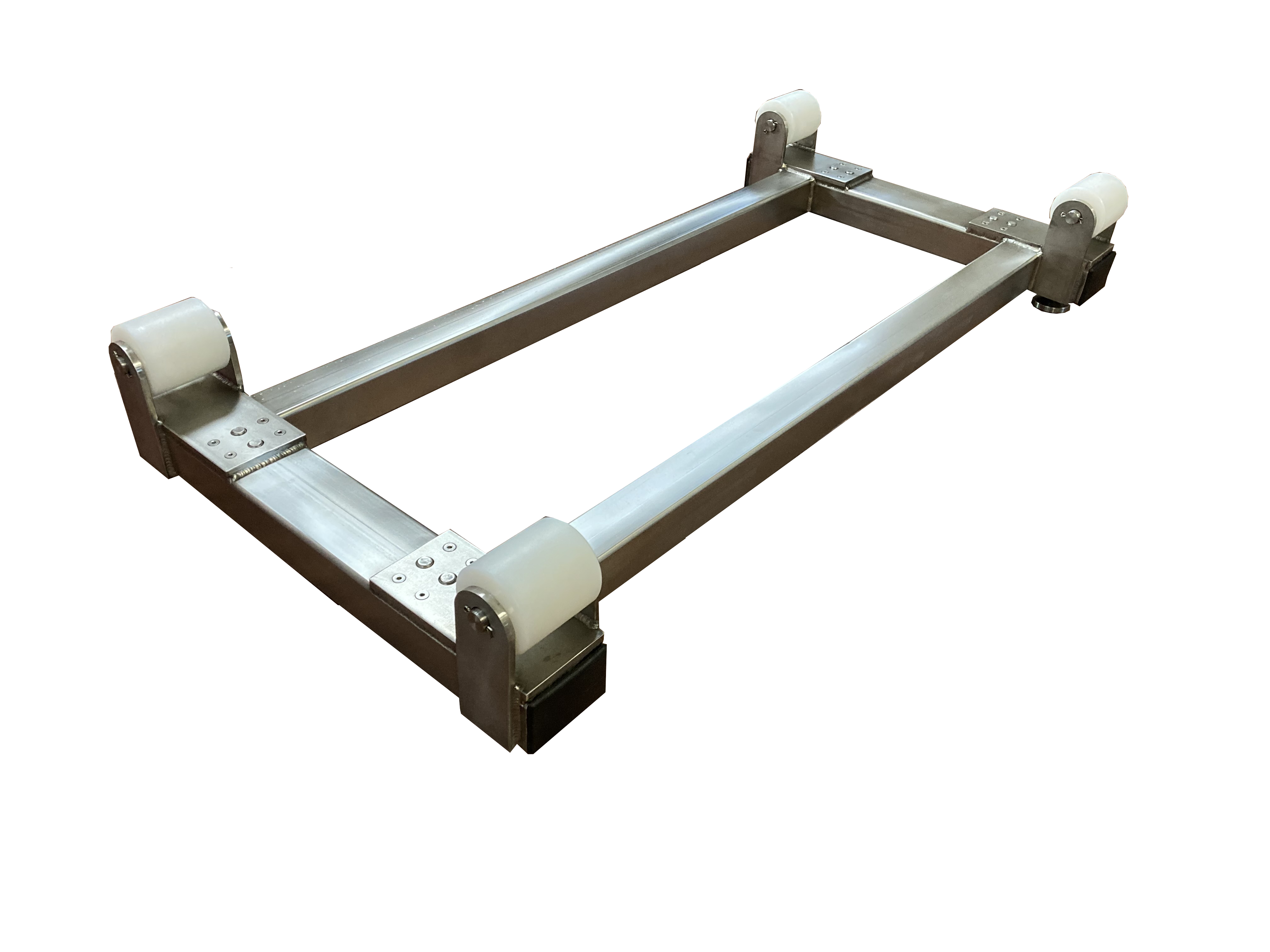

ct-angle2-trans

Overview

A step up from standard Chlorine Scales, the Arlyn Chlorine Ton Cylinder Scales provide much better accuracy, much better corrosion resistance and a much better price. They are available in single and dual configurations. Other frame configurations are also available. See more product details
Product Code Size Configuration Capacity & Resolution Price
A-TON-S 37" x 20" Single 5000 lb x 1 lb $3999
A-TON-D 2x (37" x 20") Dual 2x (5000 lb x 1 lb) $5699

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

Often used for chemical feed, these scales typically weigh Chlorine and SO2 one ton cylinders. They must be corrosion resistant for this type of environment. They also must be very rugged to handle tough tank loading and at the same time, remain accurate.

Extremely Durable Chlorine Scales

Most “Tonner” scales are constructed from welded steel with a powder coated finish. In most cases, that is usually enough until the paint gets scratched, leaving an opening for corrosion to migrate under the coating. Arlyn's Chlorine Ton Scales are constructed from stainless steel, greatly reducing corrosion and providing longer, trouble free life.

Very Accurate

The industry standard for Chlorine Ton Cylinder Scales is to apply the weight to a single load cell through a pivot and lever system. This construction presents a number of problems. First of all, this is an old weighing method that is susceptible to inaccuracies as the pivots wear. Any change in position of the tank will alter the weight. Instead, the Arlyn's Ton Scales uses four (4) heat treated, abuse resistant stainless steel load cells. There are absolutely no pivots and levers to degrade over time. Accuracy is as much as five times better!

Versatile Connectivity & Output Options

A variety of optional outputs are available for seamless connectivity. For PLC, 4-20mA analog signals are an industry standard. Other analog signals include 0-5V and 1-5V. Modbus RTU, ASCII or TCP is also available. In fact, with the optional Arlyn UpScale Touchscreen Indicator (equipped with Wi-Fi connectivity), cloud monitoring and data logging also becomes possible. See the Available Upgrades table below for a list of available options.

AxChange Cloud Monitoring

Monitor and Track your industrial scales on the cloud, anywhere on any device using the new AxChange Cloud Monitoring and Weight Tracking system. Limited free beta accounts available.

Intrinsically Safe Versions Available

For hazardous or classified environments, we also manufacture Intrinsically Safe Chlorine Ton Scales equipped with FM Approved display indicator and stainless steel load cell sensors. See our ArlynGuard T Product line or contact us at (800) 645-4301 for more details.

Low Cost

Although the features and performance would suggest otherwise, Arlyn’s Factory Direct sales channel and in house design and fabrication capability result in a lower cost.

Feature Comparison

Specification Arlyn A-TON Yellow Scale Green Scale
Capacity 5000 lbs 4000 lbs 4000 lbs
Frame Stainless Steel Regular Steel Regular Steel
Trunnions UHMW Polyethylene UHMW Polyethylene UHMW Polyethylene
Pivot & Lever System None Susceptible to wear & tear Susceptible to wear & tear
Accuracy 0.1% of Full Scale 0.5% of Full Scale 0.25% of Full Scale
Number of Load Cells 4 1 1
Price Low High High
Shipping Method Parcel Service (Low Cost) Truck (Expensive) Truck (Expensive)
Please contact us or call us at (800) 645-4301 for further details on any of these features and comparisons

Available Upgrades

Display
Frame Configurations
  • Standard Size - 37" x 20"
  • Dual Configuration available
Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
Industrial Interfaces (UpScale Display Only)
  • MODBUS RTU/ASCII
  • MODBUS TCP
  • EtherNet/IP
  • PROFINET
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24V Power

Specifications

Brochure & Datasheet A-TON Series Chlorine Ton Scale - Specification Sheet (PDF)
Primary Output Types 4-20mA or 0-5 VDC and/or Digital Indicator
MKE-5 Digital Indicator 1" High Graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable.

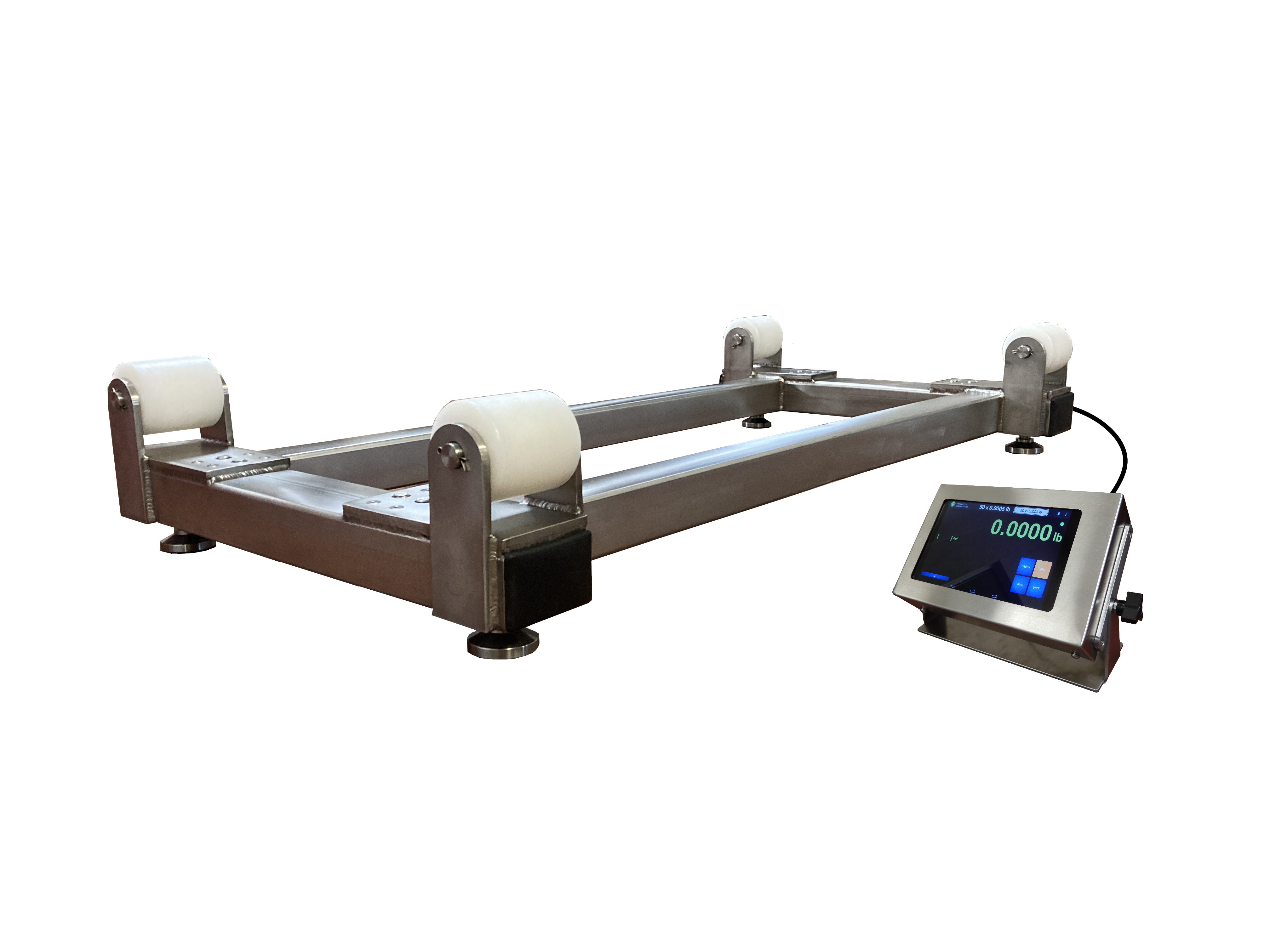

UPSCALE-9 Indicator Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable.
Load Cell Material Stainless Steel
Frame Material Stainless Steel
Load Capacity 5000 lbs
Maximum Safe Load 150% of Capacity
Size 37" x 20"
Power Requirements 12-30VDC [4-20mA models only] Wall Adapter 117 VAC, 50/60 Hz [all Digital Indicator models] Other Power options available
Accuracy & Repeatability ± 0.1% of Full Scale @ 20°C ± 0.25% of Full Scale above operating temperature range
Operating Temperature 14°F to 104°F
Pig Tail Lead 4 conductor, jacketed and shielded
Relative Humidity 0-95% Non-Condensing
Environmental Water Resistant (Not Submersible)
