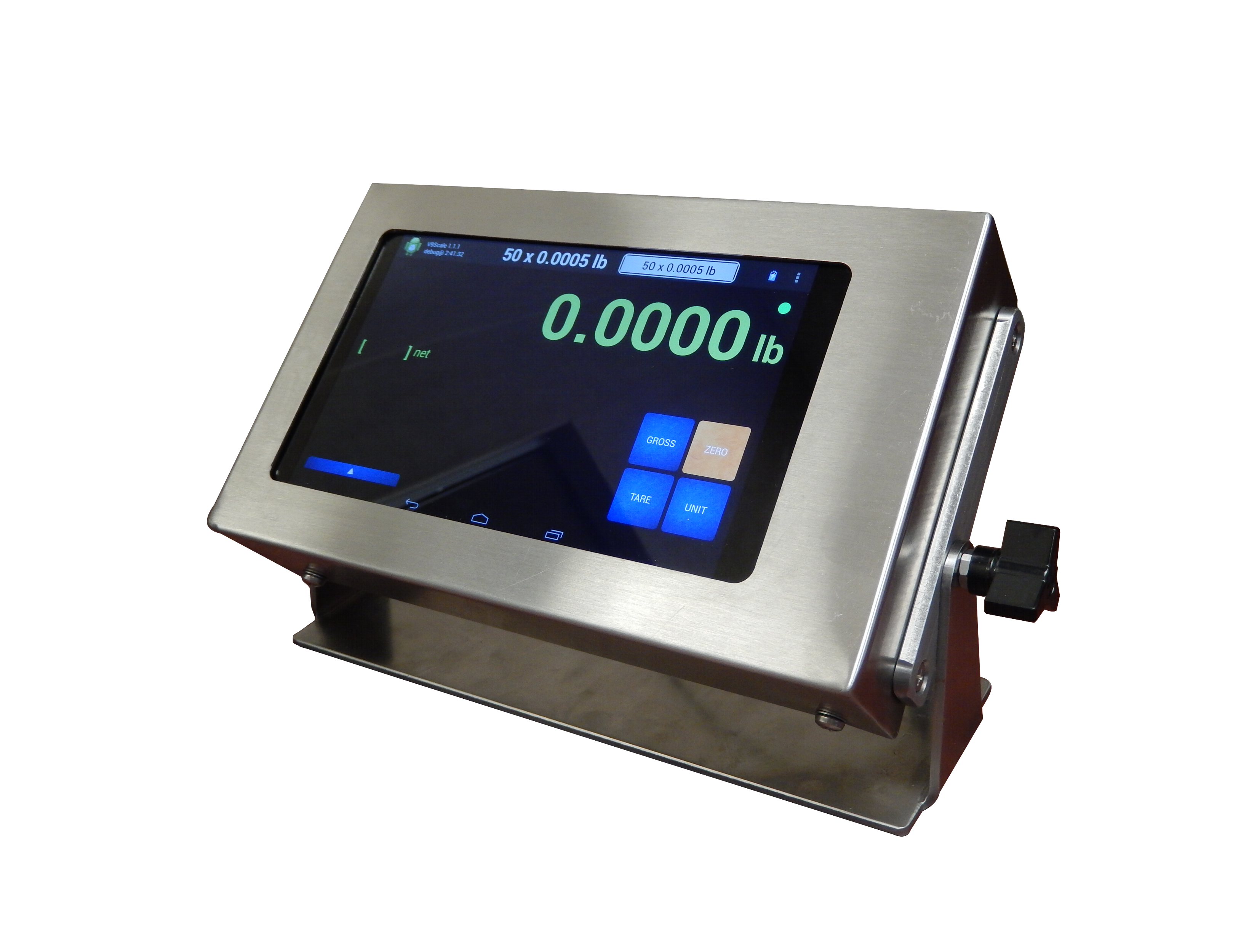

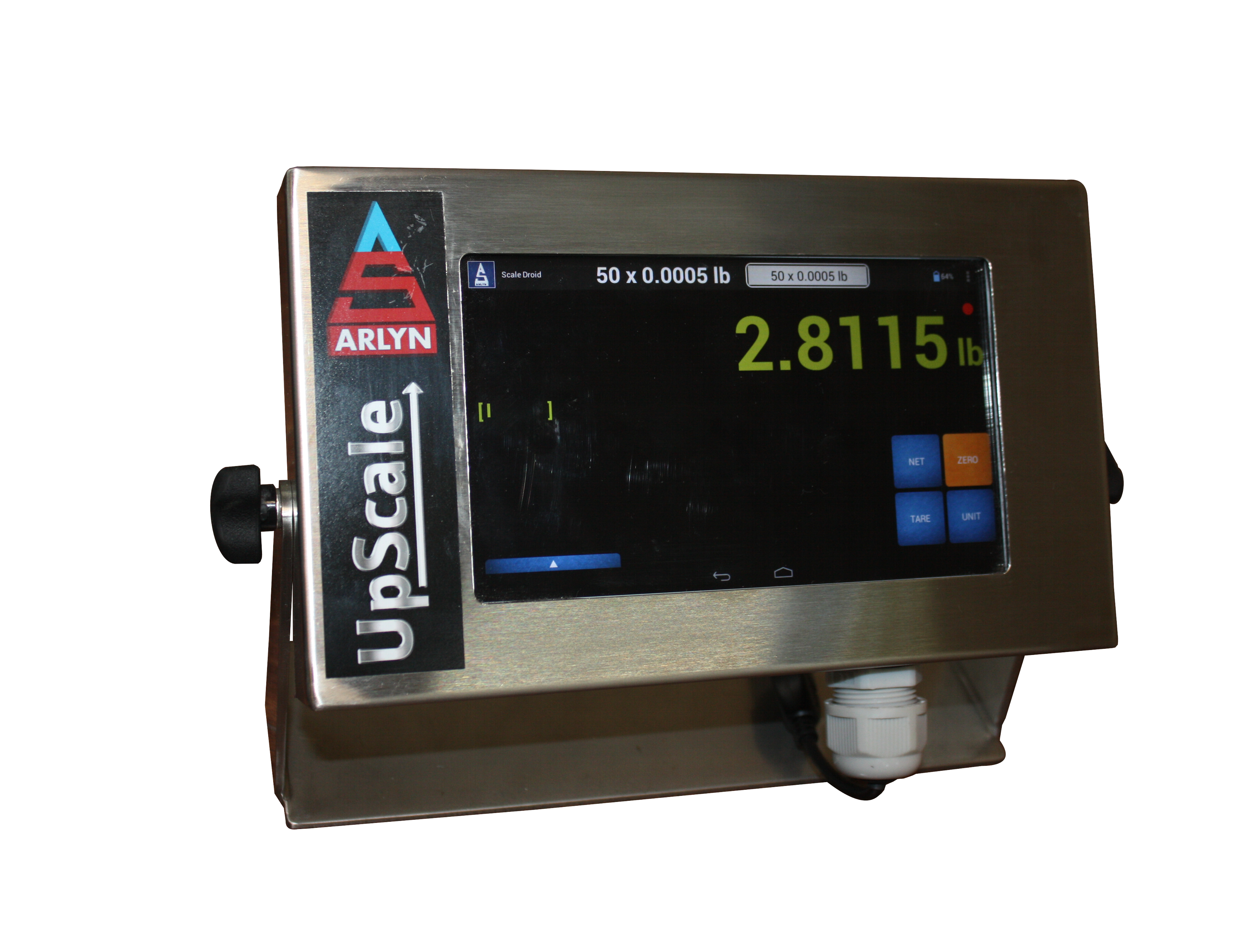

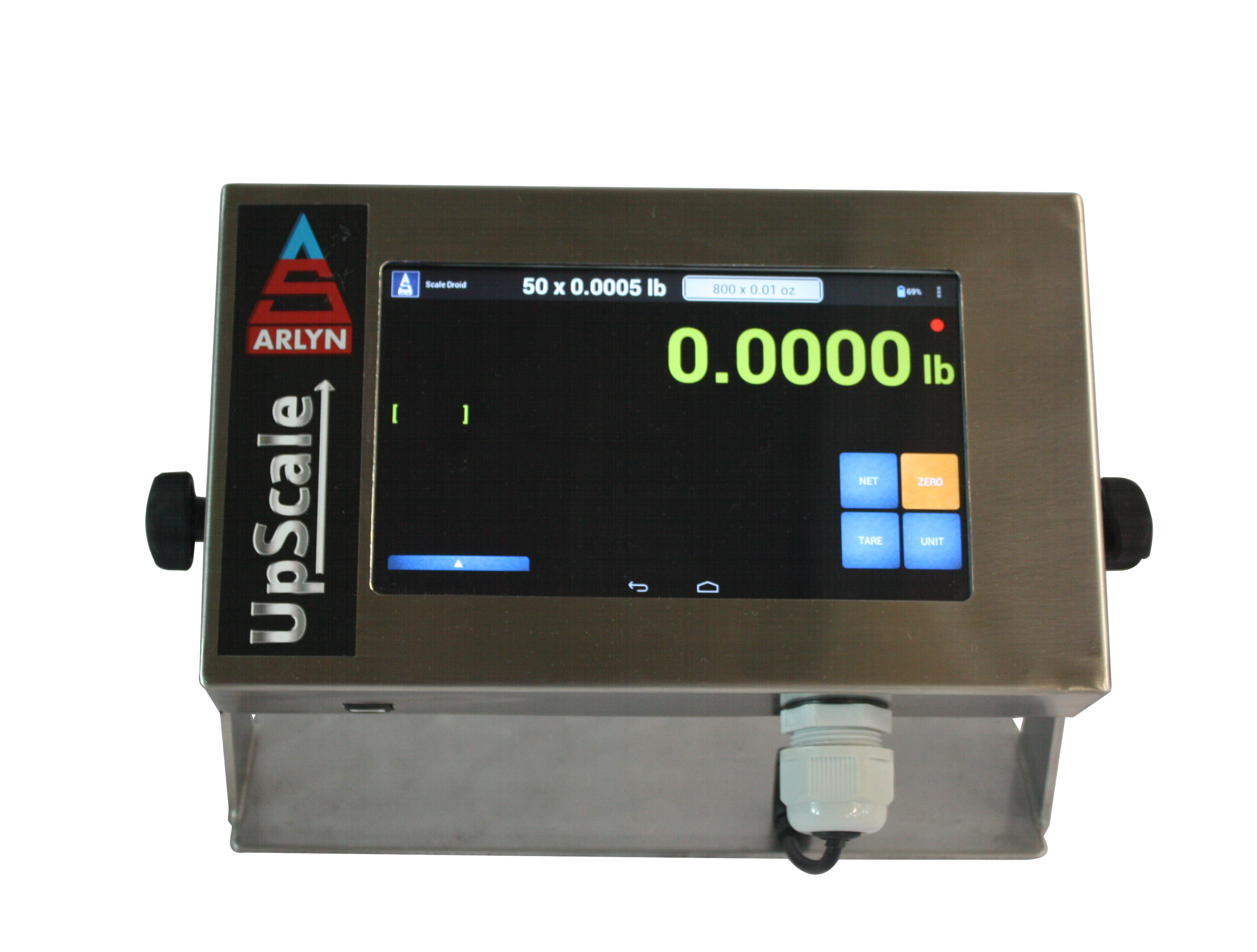

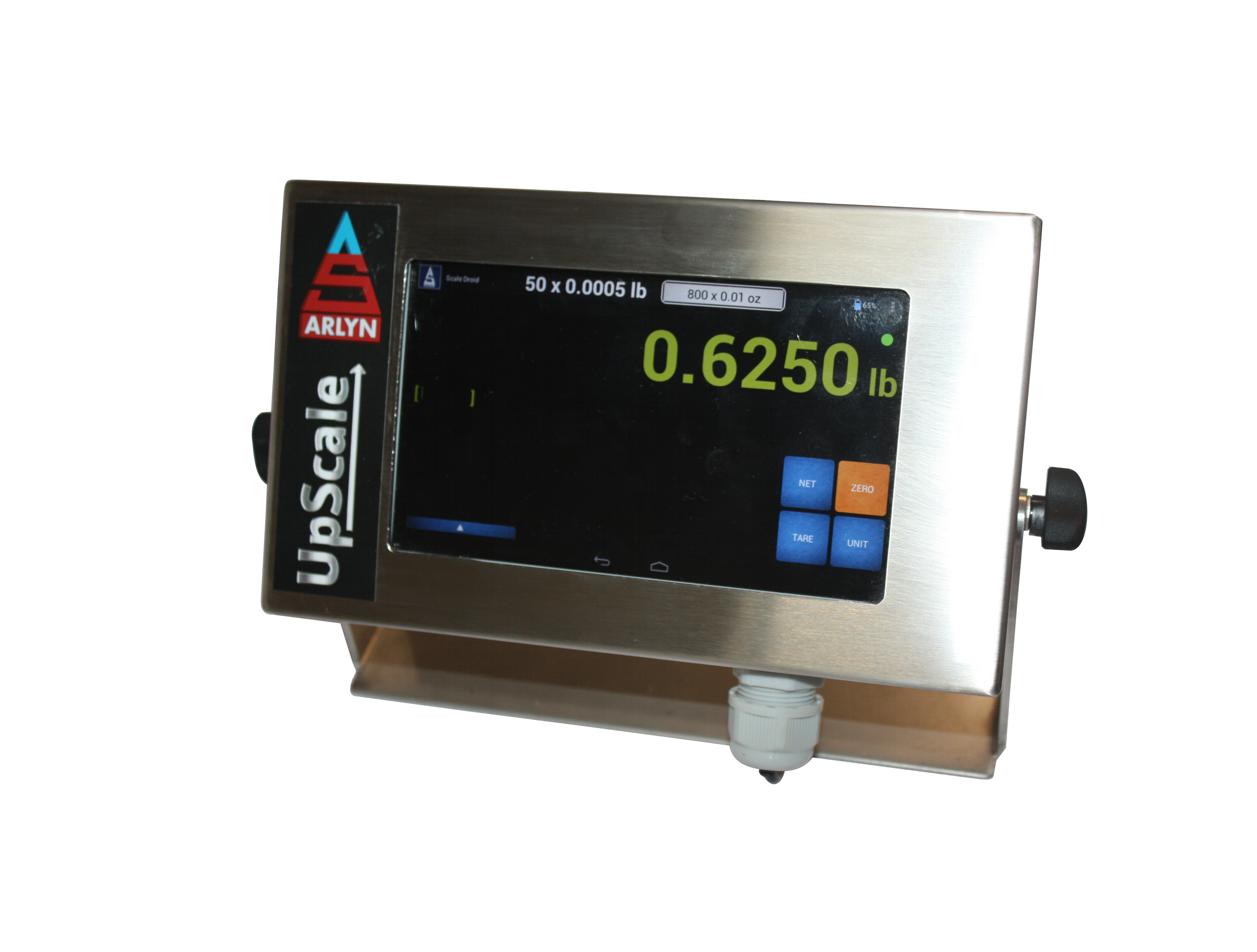

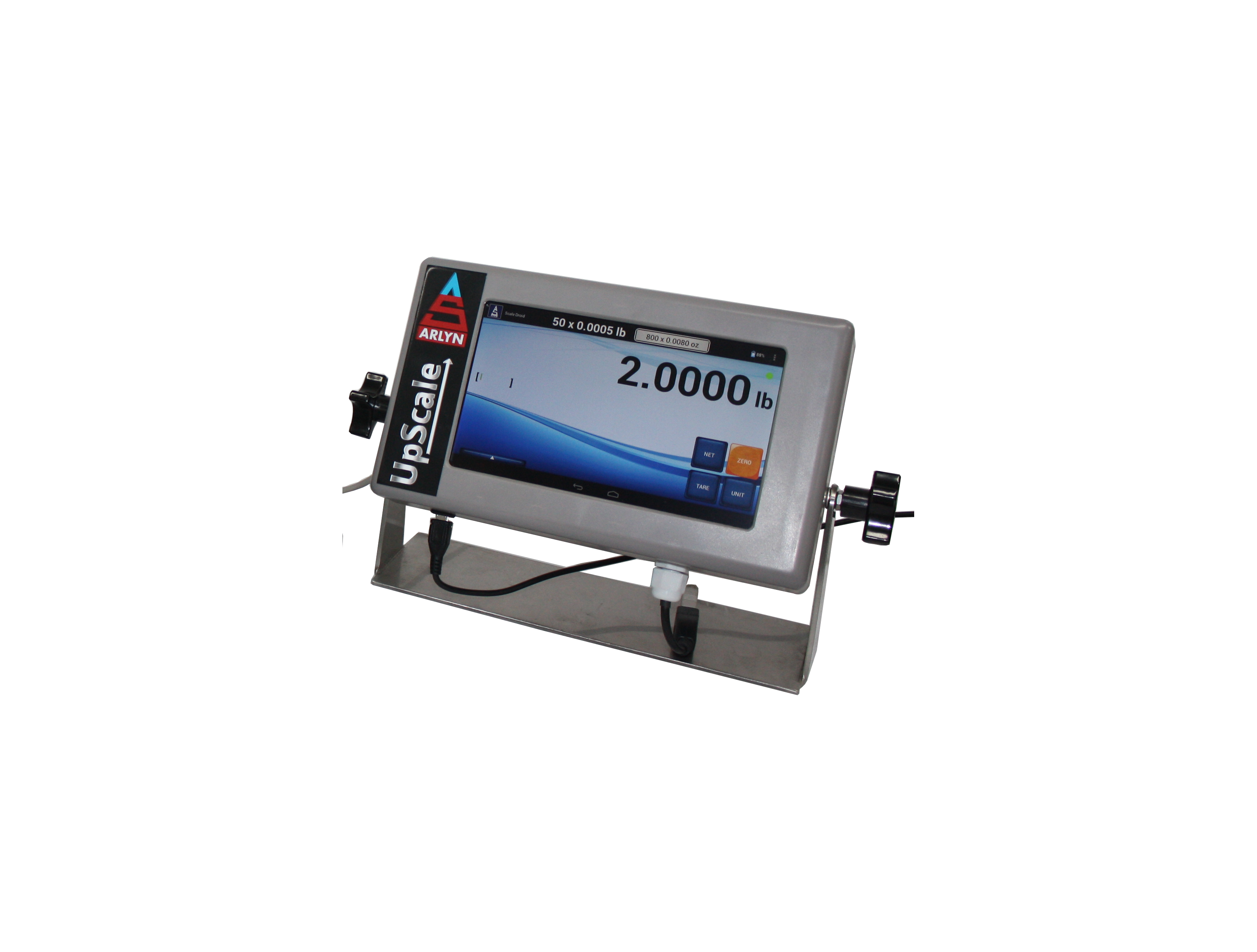

Arlyn UpScale Touchscreen Indicator - Stainless Steel Optional

Starting at $549
Configure and Buy

Overview

Large 7 inch High Definition IPS Color Touchscreen Indicator for Industrial Scales with built-in options, exclusively from Arlyn Scales. See more product details

Digital Indicator Enclosures

Product Code Price

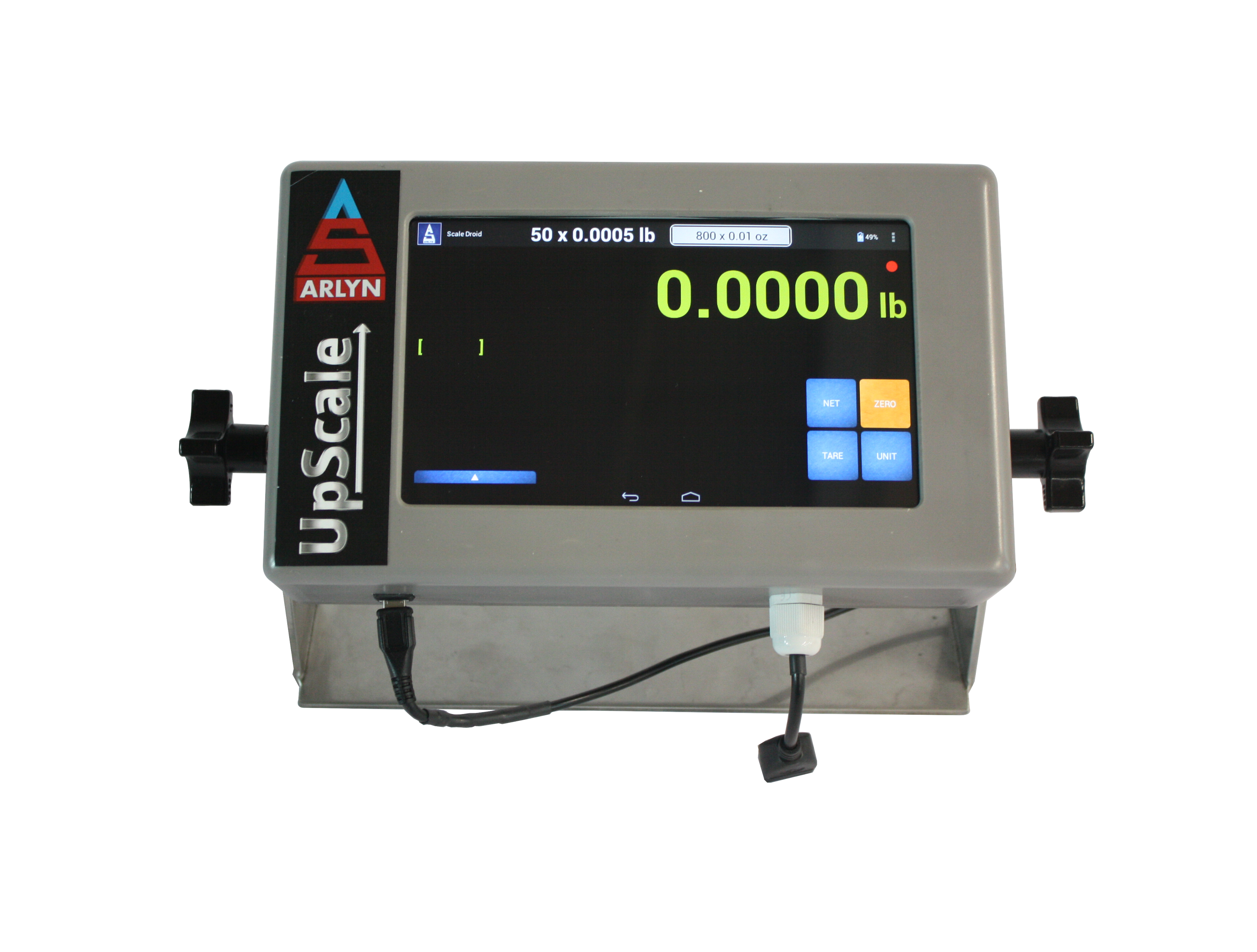

UPSCALE-9 Molded Plastic $549
UPSCALE-9-SS Stainless Steel $749

Details

The Arlyn UpScale Touchscreen Indicator is a new state-of-the-art digital indicator available exclusively from Arlyn Scales. It is equipped with a 7 inch HD IPS Capacitive 5-point widescreen touchscreen display with a resolution of 1024x600 (WSVGA) pixels. The Arlyn UpScale is driven by a powerful Quad Core processor and comes with a spacious 8GB of storage. It is also equipped with 1GB of DDR3 RAM giving it more than enough power to multitask across simultaneous processes.

Color Touchscreen Display

No more pushing buttons to get things done. No need to worry about pressing the wrong button. All buttons on the screen are contextually aware. Also, they just need to be touched to get the job done.

Visually Driven Interface

We designed the Graphical User Interface (GUI) with User Friendliness in mind. Descriptions of tasks and buttons are so clear that there is no need to read the manual to perform simple tasks.

Enhanced Options

Some options available on the standard MKE-5 Indicator have been improved on the Arlyn UpScale to give our customers extensive flexibility in meeting their requirements.

Enhanced Datalogger Functions

In addition to performing basic Datalogging functions (such as recording weight and timestamp at certain intervals on a USB Flash Drive), the Arlyn UpScale Display Indicator also allows you to configure the data log file to be emailed to you. This could be done on demand at a click of a button, or automatically at a particular date and time. Datalog email functionality is only available when the Datalogging option is purchased together with Ethernet and/or Wifi. Please see the Arlyn UpScale manual for further details.

Enhanced Setpoint Functions

Not only does the Arlyn UpScale Display Indicator provide general Setpoint functionality (actuating outputs based on target weights), it also allows you to email weight print frames when a target weight is reached. For example, if you want to be notified when a cylinder of Helium gas you were weighing on the scale reaches 30lbs, then you can configure the Setpoint function on the scale to email you when the scale reading reaches 30lbs. You can also configure the Setpoint function to output weight print frames when it reaches a target weight. This can be done through RS232, USB, Ethernet, Wifi, etc. This function is only available with the Setpoint option in conjunction with any of the digital output options. Please see the Arlyn UpScale manual for further details.

Live Data Logging with Google Spreadsheets

In addition to logging data locally (i.e. internal database and exported to USB stick), the Arlyn UpScale also features the ability to log data directly online, into a Google Spreadsheet. The logging of data can be observed almost in real time (allowing for a 2 second delay due to the time it takes for the data to be posted to the internet). Using a live Google Spreadsheet for Data Logging is especially useful for customers who want to view their scale data logging live anywhere at any time. It’s a simple replacement of complex and rigid web logging method that is still being used by other scale vendors. With live data logging, you are also able to analyze data as it comes in using a plethora of Google Spreadsheet tools available at your disposal. Further details on Data Logging with Google Spreadsheets can be found in the Scale Options page.

AxChange Cloud Monitoring

Monitor and Track your industrial scales on the cloud, anywhere on any device using the new AxChange Cloud Monitoring and Weight Tracking system.

3rd-Party Integration

If you would like to expand the functionality of your existing "non-Arlyn" branded scales with built-in displays, you can utilize the Arlyn UpScale's 3rd-Party Integration System to take advantage of the various features the Arlyn UpScale has to offer. This allows you to connect the touchscreen display to any 3rd-Party scale*. The UpScale will then communicate with the 3rd-party scale and show weight data on it's screen as if the weight is coming from a dedicated platform. Not only that, but it will also route the weight data to many of its advanced functions (such as Data Logging with Google Spreadsheets, MODBUS, Setpoint Email Alerts, etc) and allow you to utilize these features seamlessly.

Water Resistant

Highly water resistant injection molded enclosure. Rubber gasket helps seal out moisture. Optional stainless steel enclosure also available.

Load Cell Connectivity

Compatible with 4-wire Load Cell connection (Excitation +, Excitation -, Signal +, Signal -). Comes with 5-pin DIN connectors or HDMI connection for ease of use. Wiring information available on request. Customized connectors also supported at additional cost.

Easy to See

Stainless steel swivel bracket allows the display to be seen from any angle. The bracket may be mounted in a convenient spot on a post, or desk or wall.

Large Internal Memory

Fast DDR3 2GB of Random Access Memory (RAM) and 16GB of Storage.

Communication choices

The modern industrial environment is interconnected. All Arlyn Digital Indicators are available with a wide variety of industry standard communication options including Ethernet & Wireless TCP/IP, USB, RS-232 and new Keyboard Wedge Functionality.

High Accuracy

Fully Customizable Accuracy Control for Noisy Environments is available standard on this indicator through User Defined Software Filter, Stability Control, Zero/Motion Detect and Zero Tracking.

Import/Export of Data Tables

The Arlyn UpScale supports the ability to import/export data tables such as tares, samples setpoints between multiple scales as well as other systems. This feature is called Data Migration with Arlyn UpScale and is included with the purchase of the Data Logger option.

User Management & Time Tracking

The Arlyn UpScale Indicator offers the ability to control access to your scale and record usage of the scale as well as allow basic operator time management (in conjunction with other options such as USB, Ethernet, Wi-Fi, USB Datalogging, etc.) For example, when printing out data from the scale, you can determine who was logged in to the scale when work was performed. This can be determined by the username and timestamp printed out on each weight line.

Custom Fields Support

The Custom Fields Feature allows our customers to define and extend data fields to be printed or recorded from the scale that are not part of the weight data matrix. This means that you can print customized selected data and append to the weight output.

Arlyn UpScale v. MKE-5 Display

Please click HERE to see the comparison.

Available Upgrades

Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
  • Modbus RTU/ASCII (UpScale)
  • Modbus TCP (UpScale)
  • Keyboard Wedge
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24V Power
  • 3rd-Party Integration (Connect to non-Arlyn branded scales)

Specifications

Functional Specifications

Units Multiple Unit Support: Pounds, Kilograms, Grams, Ounces, etc. Supports User Defined Multiplier.
Tares Tare Features: Automatic or Keyboard Tare (Quick Tare) Function, Database Tare Storage, Sorting, Instant Search
Accumulation Weight Accumulation, Count Accumulation (for Parts Counting Features)
Other Features Weight Average and Hold (for unstable Human or Animal weighing), Checkweighing, Custom Fields Support
Parts Counting Option Features Quick Sampling, Easy Sample Entry Interface, Unlimited Sample Storage, Sorting, Instant Search
Extended Accuracy User Defined Accuracy Control includes Software Filtering, Stability Control, Zero/Motion Detect, Zero Tracking.
Remote Support Arlyn Remote Access Troubleshooting (Customer Side Internet Access Required)
Wireless Connectivity Wi-Fi Communication included (802.11b/g/n) with basic software package.
Communication Optional Interface for RS232, USB, Ethernet, Wi-Fi, Keyboard Wedge and Bluetooth (TBA) with basic software package.
AXChange Support AxChange Web Portal For Data Logging and Scale Management Subscription Available

Internal Specifications

Display 7 Inch HD IPS Capacitive 5-point Multitouch 16:9 Touchscreen Display
Resolution 1024x600 (WSVGA)
Processor ARM Cortex (TM) A Series - Quad Core CPU
Memory 2GB DDR3
Storage 16GB
Power Requirements 117-240VAC, 50/60Hz - 24VDC Optional
Temperature Specs Operating Range: 14°F to 104°F
Enclosure Molded Plastic or NEMA 4x Stainless Steel
Approx. Dimensions Plastic Enclosure: 5.27" x 8.85" x 2.15" Plastic Enclosure (w/ detachable table top hardware): 5.83" x 11.00" x 3.00" NEMA Enclosure: 5.38" x 9.18" x 1.61" NEMA (w/ detachable table top hardware): 7.20" x 11.58" x 3.00"
