High Resolution Scales with Super Sensitivity

Starting at $669
Configure and Buy

Overview

Compare current High Resolution balance models by capacity, readability, and price. Choose the model that supports the complete load and smallest useful displayed increment. Add UpScale for touchscreen operation, structured records, network communication, printing, barcode workflows, or PLC integration. See more product details

High Resolution balance models and capacities

Choose capacity from the complete load, including the sample, container, and fixture. Then choose the readability used by the procedure.
Model Capacity Readability Price
7-80g 80 g 0.1 mg $1,335
7-120g 120 g 0.1 mg $1,415
7-200g 200 g 0.1 mg $1,478
7-300g 300 g 1 mg $669
7-600g 600 g 1 mg $1,298
7-1500g 1,500 g 0.1 g $809
7-6200g 6,200 g 0.01 g $1,298
Finer-readability configurations

Arlyn also supplies 0.01 mg and 0.001 mg analytical and microbalance configurations for work that requires a finer displayed increment than the configurations shown in the table.

Details

High Resolution Balance + Arlyn UpScale

Choose the balance by load, readability, and workflow

Compare current High Resolution balance configurations by complete load, required readability, and workflow. The standard balance handles direct weighing and RS-232 output. UpScale adds the touchscreen, records, network connections, printing, barcode tools, alerts, and industrial communication.

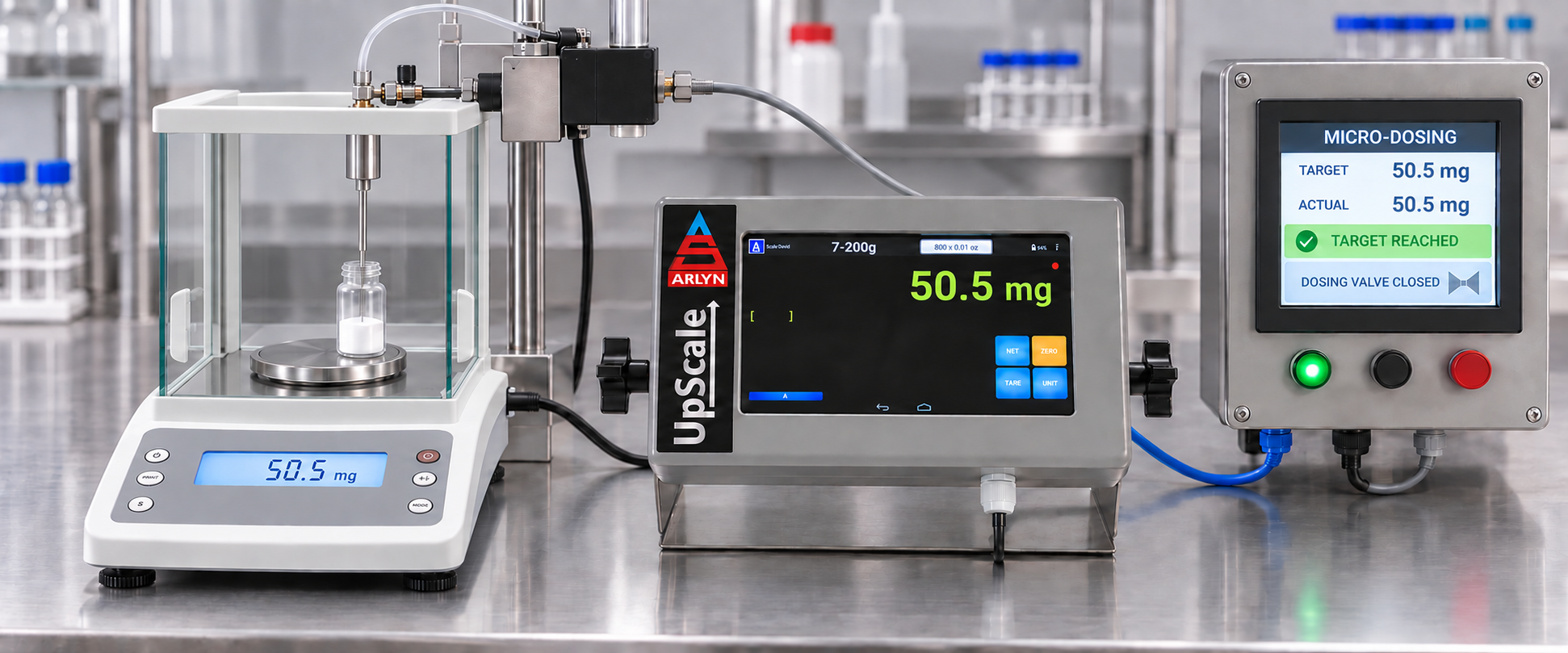

Arlyn High Resolution balance connected to UpScale for an automated 50.5 mg micro-dosing process
Arlyn High Resolution balance with UpScale in a micro-dosing workflow.

Choose the operator interface

Standard balance

Choose the standard display for local weighing, tare, unit selection, balance setup, and RS-232 data output.

Included path: direct weighing with the balance controls and serial output.

Balance with UpScale

Choose UpScale for a 7-inch touchscreen, guided steps, structured records, user and job fields, Ethernet or Wi-Fi, printing, barcode functions, alerts, cloud logging, Web API, or PLC communication.

Connected path: the selected balance performs the measurement and UpScale handles the workflow and data.

Prepare the weighing station

Place the balance indoors on a rigid, level surface away from drafts, vibration, rapid temperature changes, and static sources. Allow at least 30 minutes of warm-up before stable measurement or calibration. Use the draft shield supplied with the applicable fine-readability models and keep sample handling consistent.

Typical product uses

Use this balance for compact indoor weighing where small changes in sample or component weight matter. Typical uses include preparing standards and reagents, adding small formulation ingredients, measuring filters or residues, and checking variation in lightweight parts or material samples. Match the model to the complete load and the procedure’s required readability.

When to consider an Ultra Precision Scale

This product is designed for compact bench weighing in controlled indoor settings. If the application needs a larger platform, heavier load, industrial construction, or a Surface Acoustic Wave system, compare Arlyn Ultra Precision Scales.

Frequently Asked Questions

Which model should I choose?
Add the sample, container, and fixture to find the complete load. Select the next model capacity above that load, then select the readability required by the procedure.
Can Arlyn supply 0.01 mg or 0.001 mg readability?
Yes. Finer-readability analytical and microbalance configurations are available outside the model table.
Can the system send results to Google Sheets, email, or a PLC?
Yes. Add UpScale with the network, logging, or industrial communication option that matches the destination.
Can UpScale connect to a balance already in service?
Yes. Use the existing-scale integration path for a compatible customer-owned balance.

Purchase the High Resolution system

Use the model table for the balance and current price. Add UpScale when the station needs touchscreen operation, stored records, network connectivity, printing, barcode tools, cloud logging, alerts, or PLC communication.

Configure and buyOrder an unlisted or UpScale configuration

Available Upgrades

The High Resolution balance includes a backlit display and RS-232 data output. Add UpScale for touchscreen operation, network connectivity, stored records, barcode workflows, printing, alerts, cloud services, or PLC communication. Capacity and readability come from the selected balance, while these upgrades shape how the weighing station is operated and connected.

Displays & Operator Interface

Standard Balance Display Included with the balance for local weighing, tare, unit selection, and balance setup. UpScale Touchscreen Adds a 7-inch color touchscreen with live weight display, guided operator steps, custom fields, user management, and time-stamped records.

Outputs & Network Connections

RS-232 Serial Output Included with the High Resolution balance for a direct connection to a compatible computer, printer, or UpScale. Ethernet TCP/IP Choose a wired UpScale network connection for data logging, Web API access, cloud services, and industrial communication modules. Wi-Fi Choose wireless UpScale connectivity for Google Sheets logging, emailed data logs, Web API access, and AxChange monitoring.

Industrial Automation

EtherNet/IP Connects the weighing station to Rockwell and Allen-Bradley automation systems through UpScale. PROFINET Connects the weighing station to Siemens automation systems through UpScale. Modbus Provides Modbus communication for compatible PLC and automation systems through UpScale.

Data Logging & Cloud Services

Google Sheets Data Logging Sends weighing records directly to a configured Google Sheet through UpScale. Email Data Logs Sends scheduled or event-based weighing records to designated email recipients. USB Data Logging Stores weighing records locally for transfer without a network connection. Web API Makes weight data available to connected software through HTTP REST methods. AxChange Monitoring Adds cloud-based dashboards, scale monitoring, and alerts for connected weighing stations.

Barcode, Printing & Traceability

Barcode and QR Functions Scans product, lot, job, or operator identifiers and includes them with each weighing record. Printer Options Produces configured weight records, tickets, labels, cards, barcodes, or QR codes using compatible printers. Custom Fields and User Management Captures operator and job information with each result and supports controlled user access.

Process Control & Alerts

Setpoint Functions Applies weight thresholds to filling, batching, and accept-or-reject workflows. Email Notifications Sends configured alerts or weighing records from UpScale.
Choose the standard balance for direct weighing and RS-232 data output. Add UpScale when the station needs a touchscreen workflow, network access, stored records, barcode functions, printing, cloud logging, alerts, or PLC communication.

Specifications

Common specifications for High Resolution balance configurations
Item Common specification
Capacity and readability Varies by model.
Display Backlit LCD.
Tare Available through the model's weighing range.
Calibration External calibration is supported.
Warm-up At least 30 minutes before stable measurement or calibration.
Operating temperature 5 to 35°C (41 to 95°F).
Relative humidity 50% to 85% RH, non-condensing.
Common operating modes Weighing, counting, and percentage weighing.
Zero tracking Available.
Standard communication RS-232C serial interface.
Power AC adapter supporting 110 to 240 VAC, 50/60 Hz.
Pan or platform Model-dependent. Current examples include 80 mm diameter, 118 mm diameter, and 160 × 180 mm.
Net weight Approximately 2.5 to 3.3 kg (5.5 to 7.3 lb), depending on model.
Installation Indoor use on a stable, level surface.
