Ultra Precision Scales with Super Sensitivity and Surface Acoustic Wave Technology
$1,409.00
| Model | SAW-X | SAW-T | SAW-L | SAW-C | SAW-H |
| Capacity x Readability | 10 lb x .0001 lb 5 kg x .05 g |
25 lb x .0002 lb 12 kg x 0.1 g |
50 lb x .0005 lb 25 kg x 0.2 g |
100 lb x .001 lb 50 kg x 0.5 g |
200 lb x .002 lb 100 kg x 1g |
| Linearity* | 1:40,000 of full capacity |
1:40,000 of full capacity |
1:40,000 of full capacity |
1:40,000 of full capacity |
1:40,000 of full capacity |
| Response Time (avg) | Filtered: 0.5-1s, Unfiltered: 0.01-0.2s | Filtered: 0.5-1s, Unfiltered: 0.01-0.2s | Filtered: 0.5-1s, Unfiltered: 0.01-0.2s | Filtered: 0.5-1s, Unfiltered: 0.01-0.2s | Filtered: 0.5-1s, Unfiltered: 0.01-0.2s |
| Display Update | 0.4 sec. | 0.4 sec. | 0.4 sec. | 0.4 sec. | 0.4 sec. |
| Allowable Ambient Temperature |
10F-120F | 10F-120F | 10F-120F | 10F-120F | 10F-120F |
| Sensitivity Drift (15C-35C)* | approx.+/- 2 ppm | approx.+/- 2 ppm | approx.+/- 2 ppm | approx.+/- 2 ppm | approx.+/- 2 ppm |
| Overall Accuracy | 1:20,000 | 1:20,000 | 1:20,000 | 1:20,000 | 1:20,000 |
| Safe Overload | 250% | 250% | 250% | 250% | 250% |
| Power Consumption | 1W | 1W | 1W | 1W | 1W |
| Pan Size | 12″ x 12″ | 12″ x 12″ | 12″ x 12″ | 12″ x 12″ | 12″ x 12″ |
| Price | $1409 | $1409 | $1409 | $1409 | $1719 |
*Typical
Ultra Precision Scales with Super Sensitivity and SAW Technology
A technology breakthrough can occasionally change an entire industry. Arlyn Scales has accomplished this with our exciting, newly patented Ultra Precision Scales. Using an all digital Surface Acoustic Wave (SAW) transducer, these scales provide more than 10 times better accuracy than any other scale in its price range. As a bonus, they are also more rugged than regular scales, and can be used in a wide variety of industrial environments.
Super Sensitivity
Super Accuracy
Super Stable
Super Rugged
Super Versatile

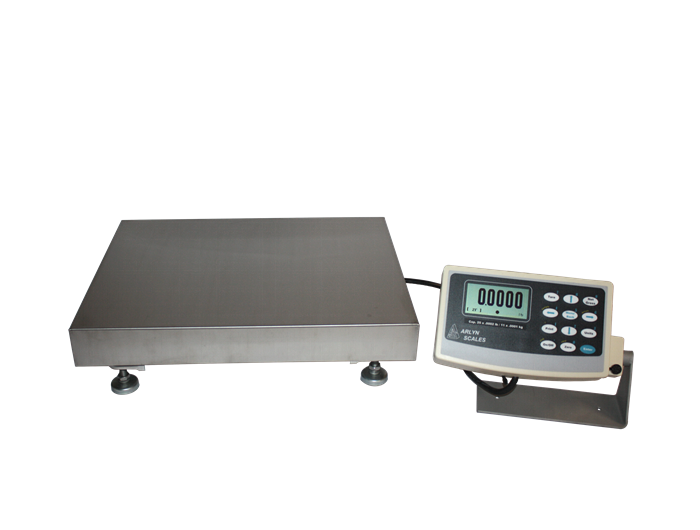

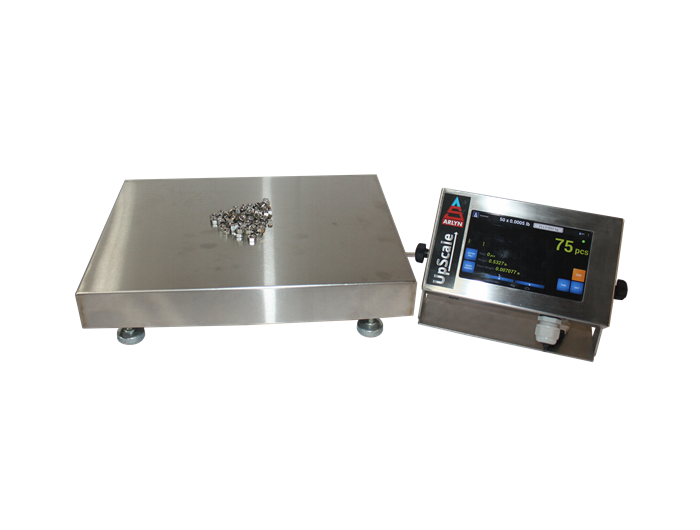

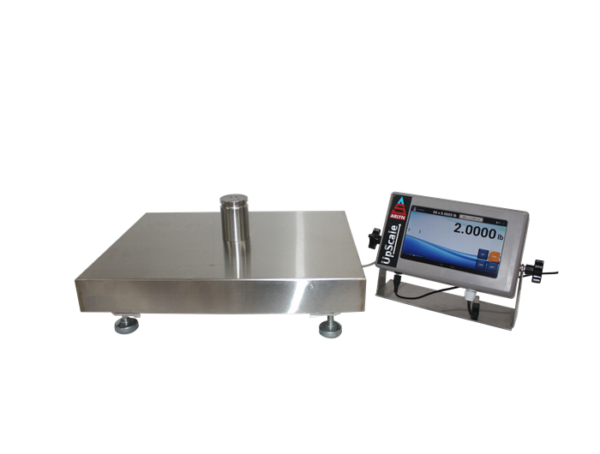

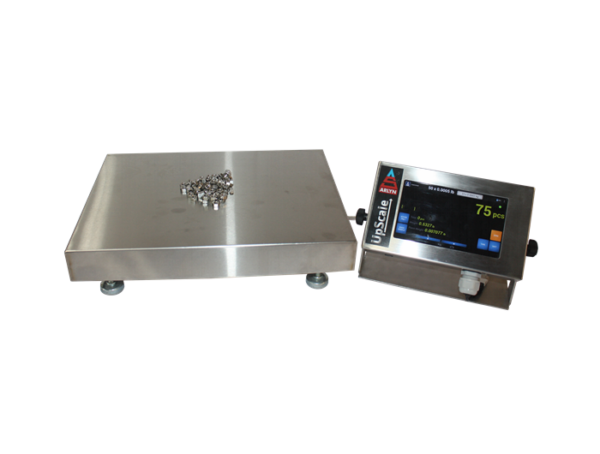

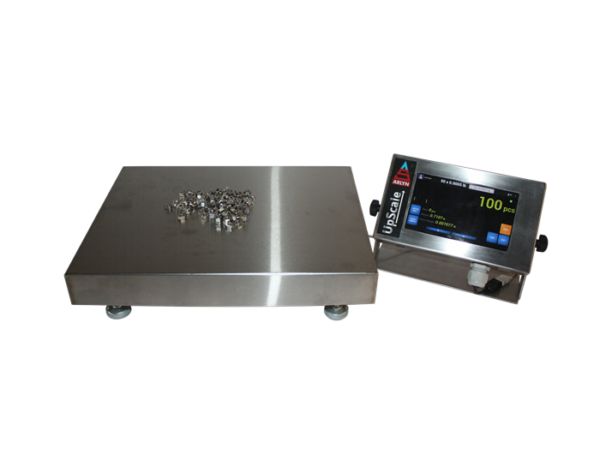

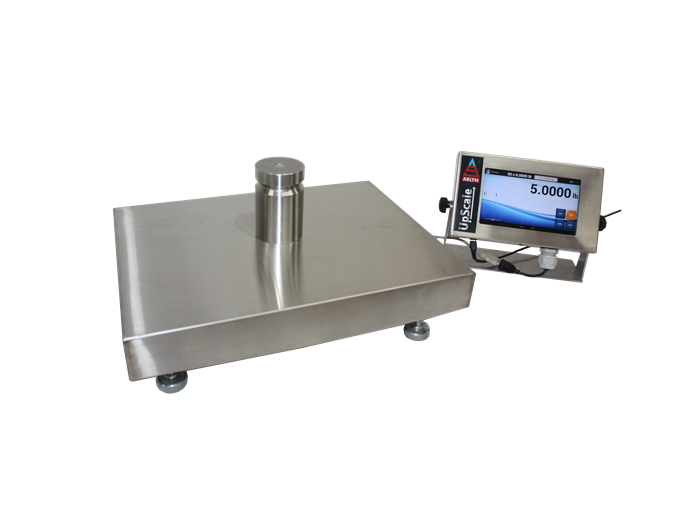

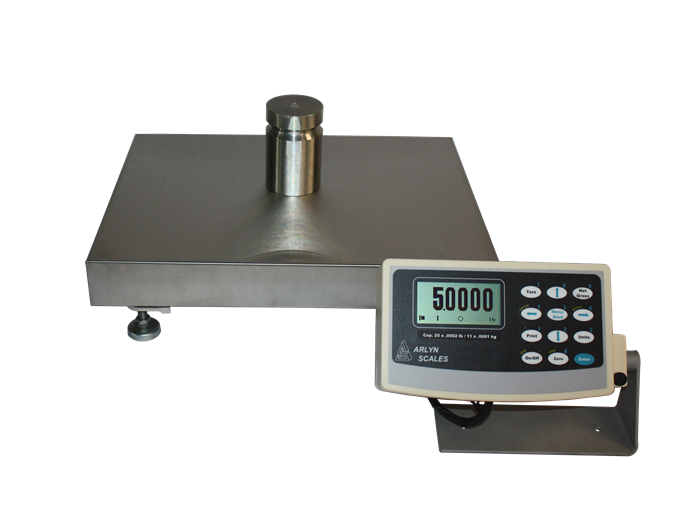

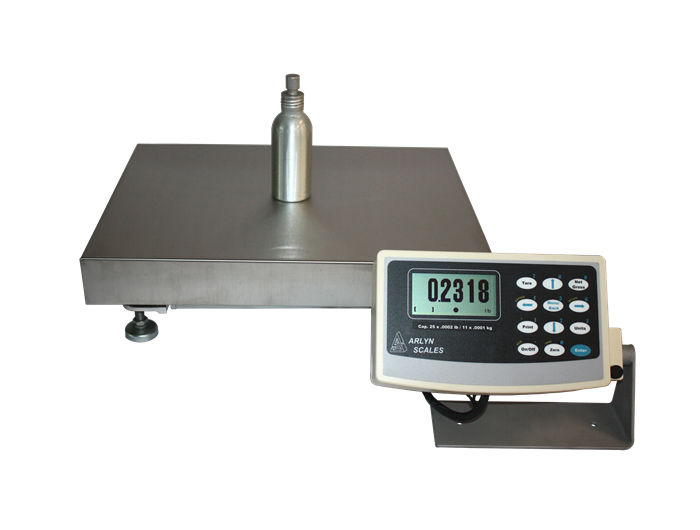

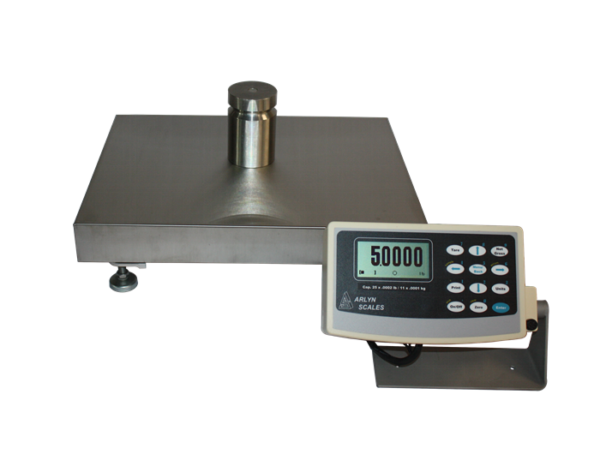

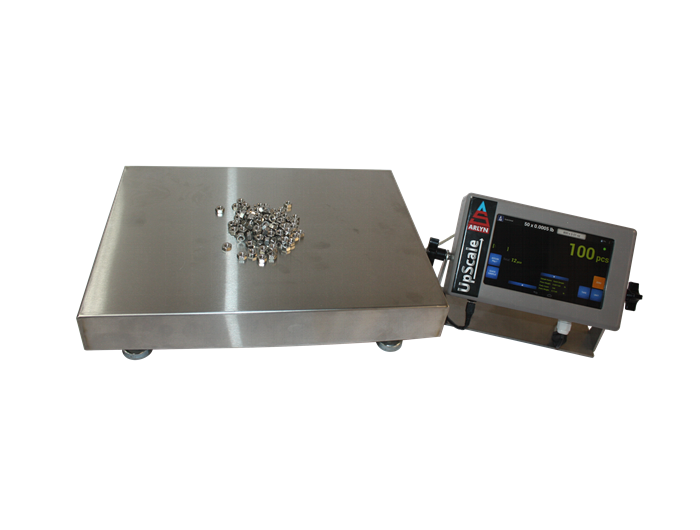

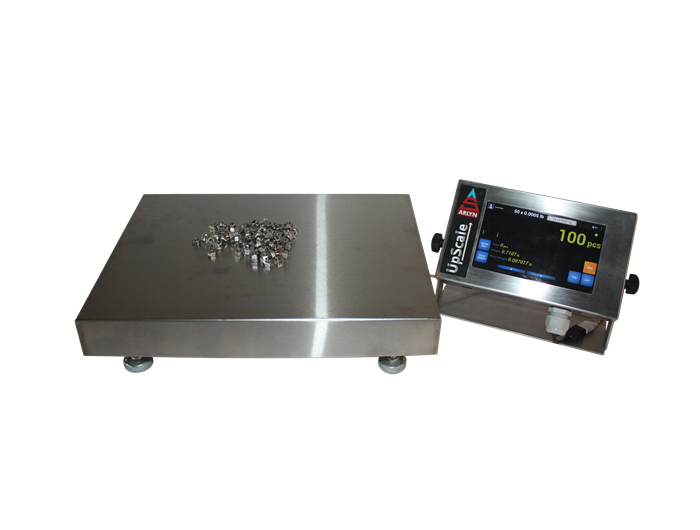

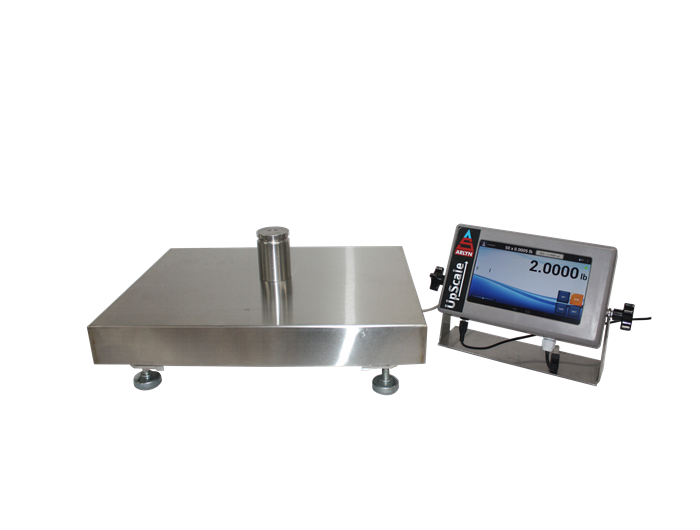

The large, graphics digital indicator can be swiveled to any angle for easy viewing. These scales are available in many capacities, ranging from 10 lb all the way to 1000 lb. A wide variety of communication options, including Ethernet, USB, and RS-232 give excellent versatility in connecting to other systems.
