Setpoint Output Connector and Pin Diagram

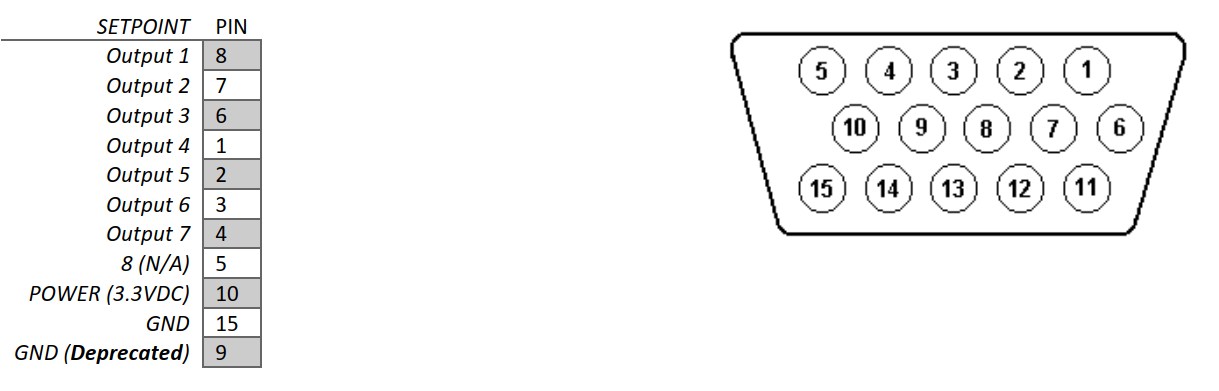

Diagram shows Setpoint Output Pin Connector. In most cases there will be a single cable with a 15 pin subminiature D type female connector added to the scale for interfacing external equipment.

	PROPRIETARY ARLYN SCALES, 59 2ndSTREET, EAST ROCKAWAY, NY 11518
	TITLE Setpoint Output Pin Connector Diagram
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CIRCUITS AND SYSTEMS, INC. DBA ARLYN SCALES. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CIRCUITS AND SYSTEMS, INC. DBA ARLYN SCALES IS PROHIBITED.	DATE 10/26/2020	REVISED 10/26/2020	VERSION 1.0	DRAWN BY KARIM	PAGE 1 OF 1
