Capacities and Resolution
| Model |
Product Code |
Capacity & Resolution |
Price |

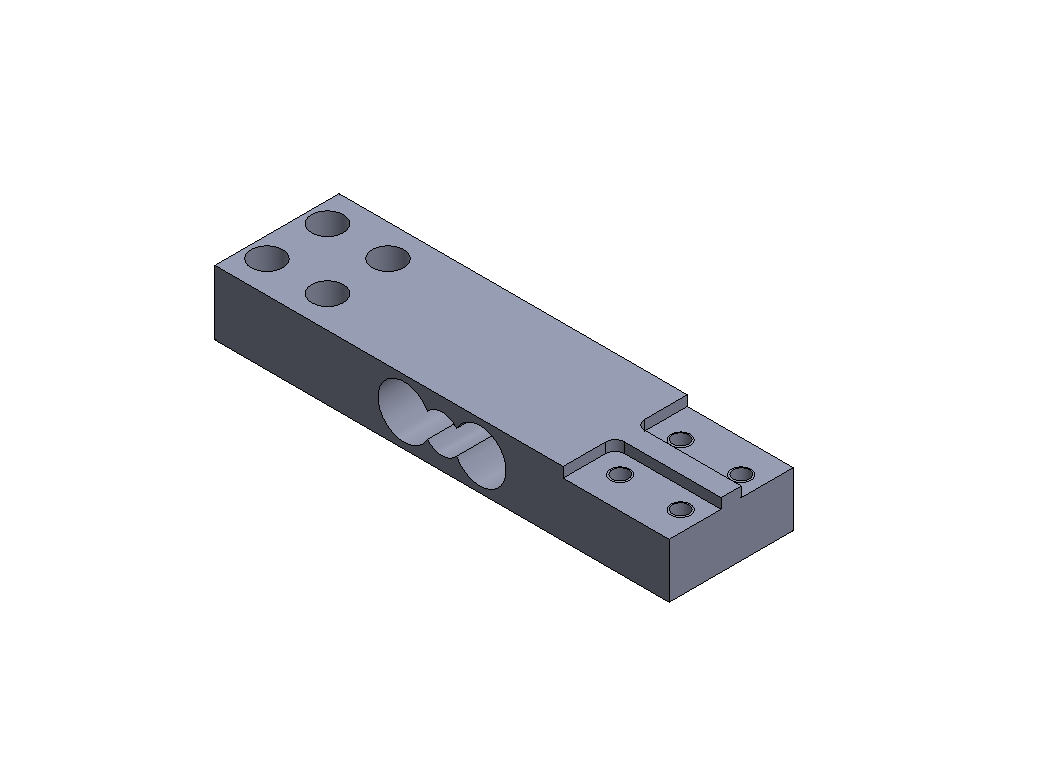

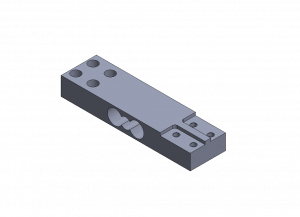

DLC-B
 |
DLC-B10 |
10 lb x 0.002 lb, 5 kg x 1 g |
$399 |
| DLC-B25 |
25 lb x 0.005 lb, 12 kg x 2 g |
$399 |
| DLC-B50 |
50 lbs x 0.01 lb, 22 kg x 5 g |
$399 |
| DLC-B100 |
100 lbs x 0.02 lb, 45 kg x 10 g |
$399 |
| DLC-B150 |
150 lb x 0.05 lb, 67 kg x 20 g |
$399 |

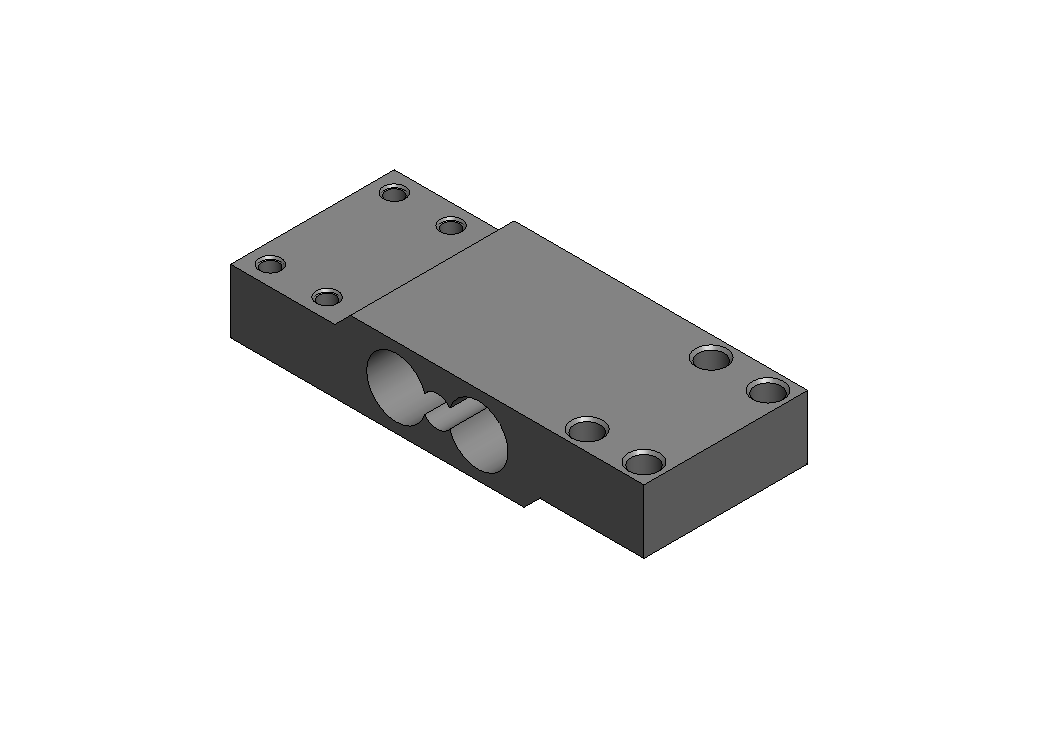

DLC-C
 |
DLC-C6 |
60 x 0.02 lb, 27 kg x 10 g |
$399 |
| DLC-C10 |
100 x 0.02 lb, 45 kg x 10 g |
$399 |
| DLC-C30 |
300 x 0.1 lb, 136 kg x 50 g |
$499 |
| DLC-C40 |
400 x 0.1 lb, 182 kg x 50 g |
$499 |
Note: Significant quantity discounts available. Call (800) 645-4301 for pricing.
Details
Arlyn Scale Digital Load Cells
Digital Load Cells (DLC) from Arlyn Scales not only provide the tried and tested reliability and ruggedness that is known for the brand, but they also come with ease of use.
For more information, visit the
Digital Load Cells brochure page.
Available Upgrades
| Outputs |
- Analog Output 4-20mA (or 0-5VDC)
- RS-232 Serial Port
- USB Communication (w/ Virtual Serial Communication)
- Ethernet TCP/IP Connectivity
- WiFi TCP/IP Connectivity (UpScale)
|
Specifications
| Dimensions |
- DLC-B: 4.5" x 0.7" x 1"
- DLC-C: 4.5" x 0.7" x 2"
|
| Primary Output Type |
RS-232 (Ethernet, USB, RS-485/422 and other mediums available) |
| Construction |
Stainless Steel |
| Load Cell Type |
Single Point |
| Maximum Safe Load |
150% of Capacity |
| Size |
Model Dependent |
| Power Requirements |
Bus-Powered USB (5V)
Self-powered also available up to 24V. |
| Accuracy & Repeatability |
± 0.1% of Full Scale @ 20°C
± 0.25% of Full Scale above operating temperature range |
| Zero Shift |
± 0.625% Full Scale / 30 days [All Digital Indicator Models] |
| Operating Temperature |
14°F to 104°F (-10°C to 65°C) |
| Pig Tail Lead |
4 conductor, jacketed and shielded |
| Relative Humidity |
0-95% Non-Condensing |
| Environmental |
Water Resistant (Not Submersible) |
| Test Spec |
EMI/RFI Emission Suppression |
| Typical Sampling Rate |
10 Hz (Changeable) |
