Platform Scales with Industrial Technology - Stainless Steel

Starting at $1049
Configure and Buy

Overview

Available in platform sizes ranging from 20" x 27" up to 48" x 48", these stainless steel scales also include stainless steel load cells for maximum ruggedness. They all also include Factory Direct pricing. See more product details
Product Code Capacity & Resolution Platform Size Aluminum Stainless Steel (-SS)
320D 500 lbs x 0.1 lb 20" x 27" x 1 7/8" $699 $1049
320M 1,000 lbs x 0.2 lb 20" x 27" x 1 7/8" $699 $1049
320D-22 500 lbs x 0.1 lb 22" x 44" x 1 7/8" $799 $1259
320M-22 1,000 lbs x 0.2 lb 22" x 44" x 1 7/8" $799 $1259
320D-27 500 lbs x 0.1 lb 27" x 60" x 1 7/8" $899 $1569
320M-27 1,000 lbs x 0.2 lb 27" x 60" x 1 7/8" $999 $1669
320D-30 500 lbs x 0.1 lb 30" x 30" x 1 7/8" $899 $1359
320M-30 1,000 lbs x 0.2 lb 30" x 30" x 1 7/8" $899 $1359
320D-36 500 lbs x 0.1 lb 36" x 36" x 1 7/8" $999 $1569
320M-36 1,000 lbs x 0.2 lb 36" x 36" x 1 7/8" $999 $1569
320D-48  500 lbs x 0.1 lb 48" x 48" x 2 7/8" $1299 $1889
320M-48 1,000 lbs x 0.2 lb 48" x 48" x 2 7/8" $1399 $1989

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

Arlyn Scales offers quality Industrial Platform Scales for every type of requirement. Our Stainless Steel 3200 scales utilize industry standard technology matched with top of the line stainless steel load cells to provide accuracy, ruggedness and durability. And the Factory Direct cost is much, much lower than industry standard.

Extremely Durable

Features four stainless load cells embedded in welded frame for maximum shock and abuse resistance and a molded display enclosure with rubber gasket for water resistance.

Easy Operation

With a large 1" high graphics digital display and swivel mount, the Pushbutton functions for automatic and keyboard tare with 450 memory locations, zero, net/gross, and multiple units conversion (lb, kg, oz, troy, etc.)

Very Accurate

With internal resolution to 1 part in 500,000, the 320D has excellent weight resolution up to 0.1 lb.

Versatile

All sizes are also available in full stainless steel construction. For extremely corrosive environments, see our Corrosion Resistant Scales. Scales may also be constructed in any non-standard size.

AxChange Cloud Monitoring

Monitor and Track your industrial scales on the cloud, anywhere on any device using the new AxChange Cloud Monitoring and Weight Tracking system. Limited free beta accounts available.

Intrinsically Safe Versions Available

For hazardous or classified environments, see Arlyn's Intrinsically Safe ArlynGuard P Series Platform Scales equipped with FM Approved display indicator and load cell sensors.

Other Configurations

  • 2-Wire or 3-Wire 4-20mA (no display): These scales can also be configured for applications that do not require a Digital Display Indicator. This is suitable if your application requires this scale with a 2- or 3-wire 4-20mA or 0-5V interface without a display.
  • Load Cell Kits (without platform): We also provide load cell kits with capacities as stated for these types of scales. The kits include the heavy duty stainless steel load cells, legs, and other hardware. The kit can also include the scale display if requested.
For these and other configurations, please contact us or call us at (800) 645-4301 and we will be happy to help.

Available Upgrades

Display
Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
  • Modbus RTU/ASCII (UpScale)
  • Modbus TCP (UpScale)
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24VDC Power Input

Specifications

Brochure & Datasheet 3200 Series Platform Scales - Specification Sheet (PDF)
MKE-5 Digital Indicator Included 1" high graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable.

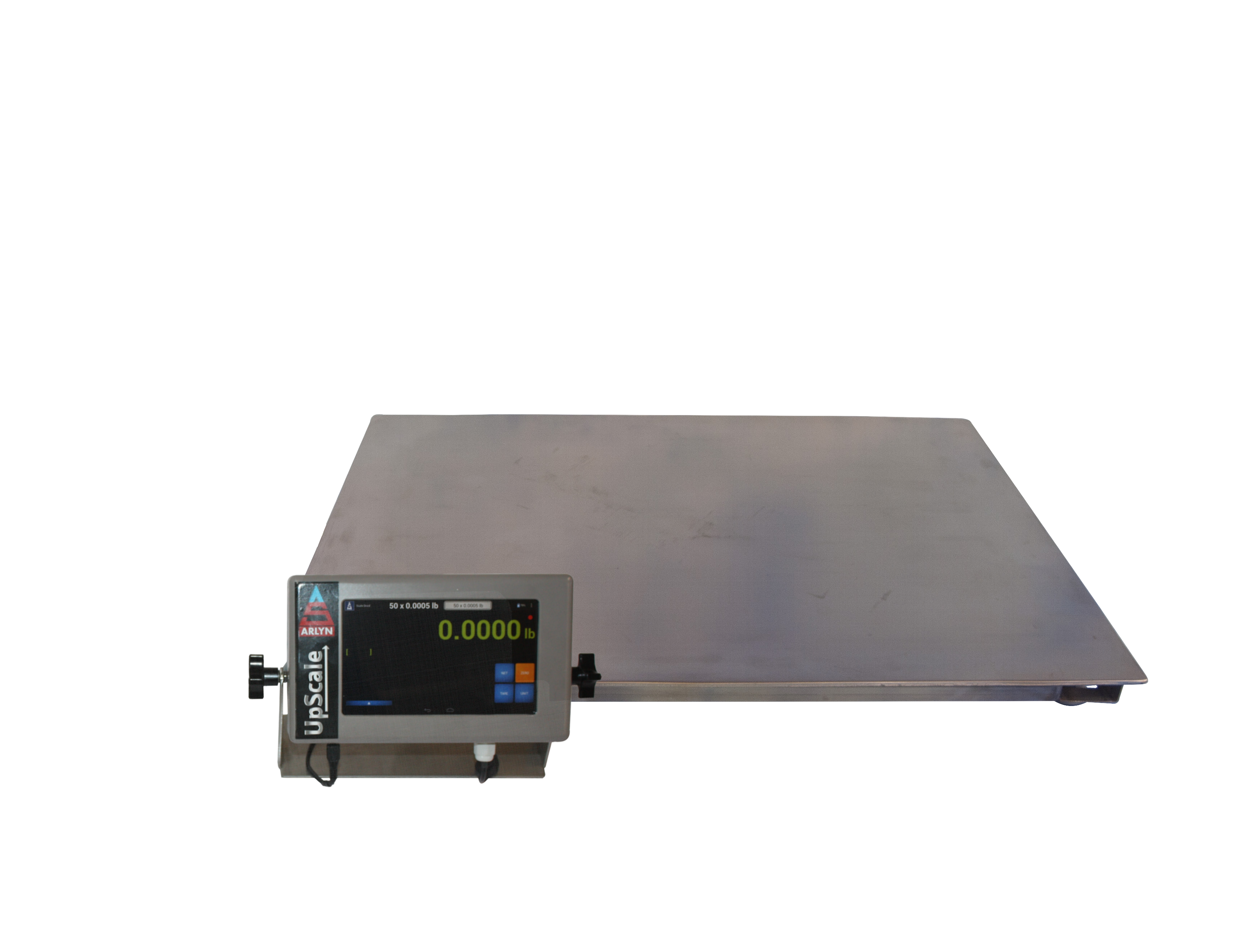

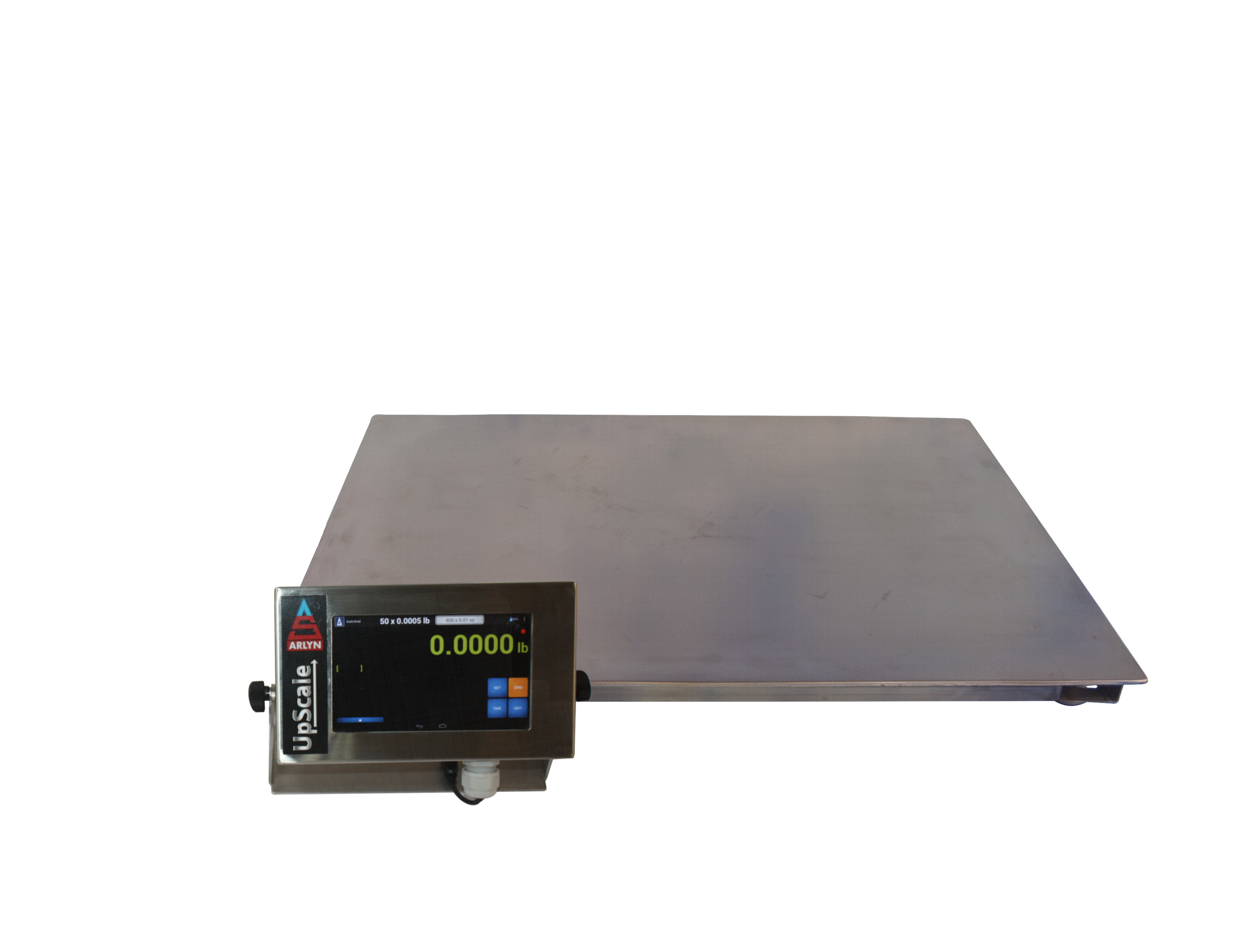

UPSCALE-9 Indicator Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable.
Platform Size 22" x 44" x 1 7/8" high, 50 lbs shipping weight. Optional sizes to 48" x 48".
Power Requirements 117/220 VAC, 50/60 Hz., 24VDC Optional
Accuracy 0.1% of full scale.
Operating Temperature 14°F to 104°F
Minimum Sampling Rate 10 Hz
