Livestock, Alpaca and Llama Scales with Weight Average and Hold

Starting at $799
Configure and Buy
Livestock Alpaca and Llama Scales

Overview

Livestock Alpaca and Llama Scales feature Weight Average and Hold function to provide accurate weight readings, even if the animal will not stand still. See more product details
Product Code Capacity & Resolution Platform Size Price
320-ALP 500 lb x .1 lb 22" x 44" $799
320-LLA 500 lb x .1 lb 27" x 60" $899

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

Arlyn's Livestock, Alpaca and Llama Scales overcome the challenge of weighing live animals by providing a “Weight Average and Hold” function that processes an accurate weight for an animal that is not standing still. The scale is very low profile, making it easier for animals to step onto and off of the platform. These scales are ideal for veterinary use.

Excellent Warranty

Special Limited 3-Year Parts and Labor Warranty.

Very Rugged

There are no moving parts, which increases the longevity of the scale. The four stainless load cells embedded in the welded frame provide excellent shock and abuse resistance.

Low to the Ground

The scale platform is 1 7/8” high. This makes it easy for an animal to step onto and off of the scale.

Resistant to Moisture and Liquids

The display housing is gasket sealed. Load sensors are coated and protected from animal waste and other corrosive elements.

Highly Accurate

The weight can be read to the nearest 0.1 lb.

Easy to Read Display

The graphical indicator includes stainless steel swivel mount, which means it can easily be seen from any angle.

AxChange Cloud Monitoring

Monitor and Track your industrial scales on the cloud, anywhere on any device using the new AxChange Cloud Monitoring and Weight Tracking system. Limited free beta accounts available.

Available Upgrades

Display
Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
  • Modbus RTU/ASCII (UpScale)
  • Modbus TCP (UpScale)
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24V Power

Specifications

Brochure & Datasheet 3200 Series Platform Scales - Specification Sheet (PDF)
MKE-5 Digital Indicator 1" High Graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable.

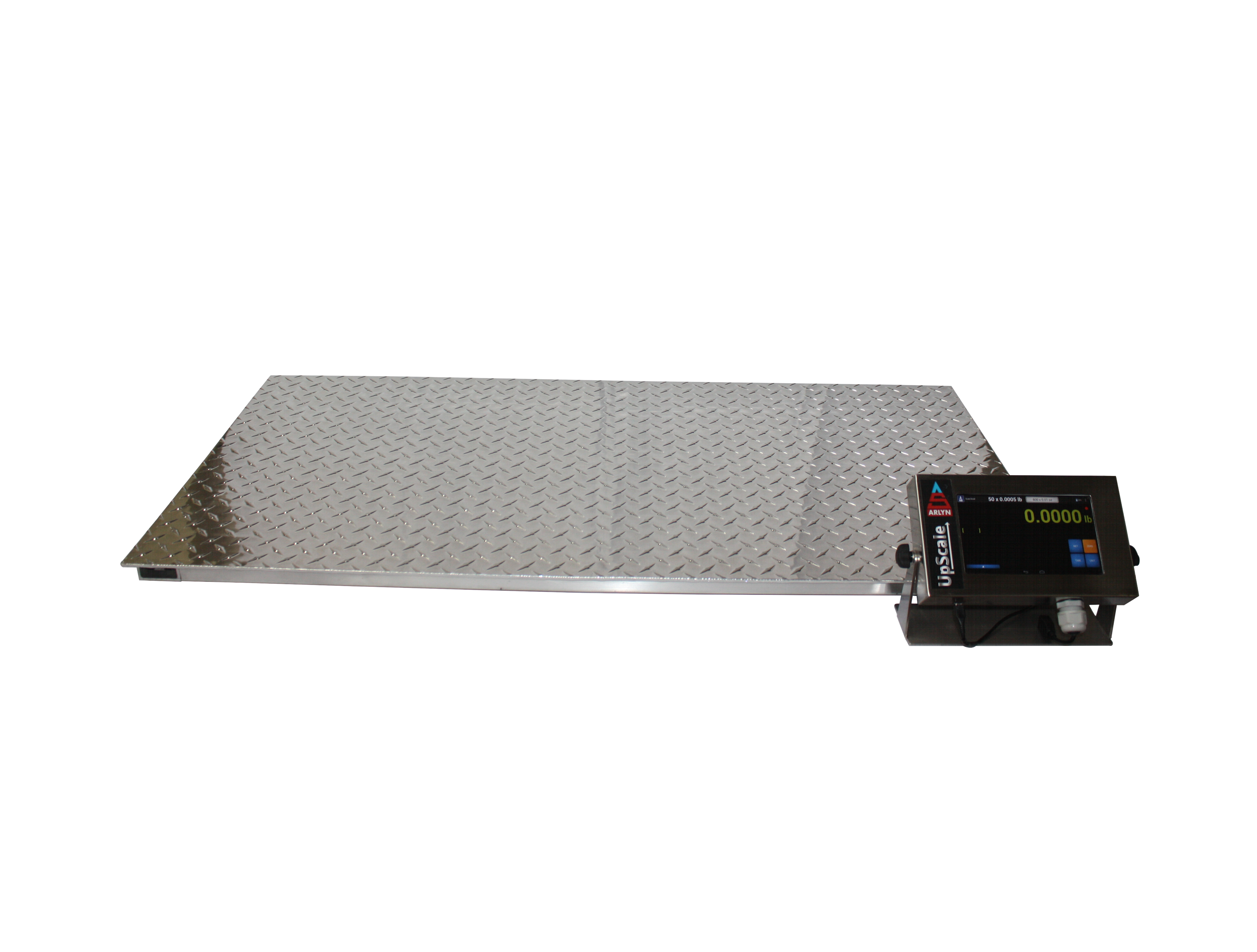

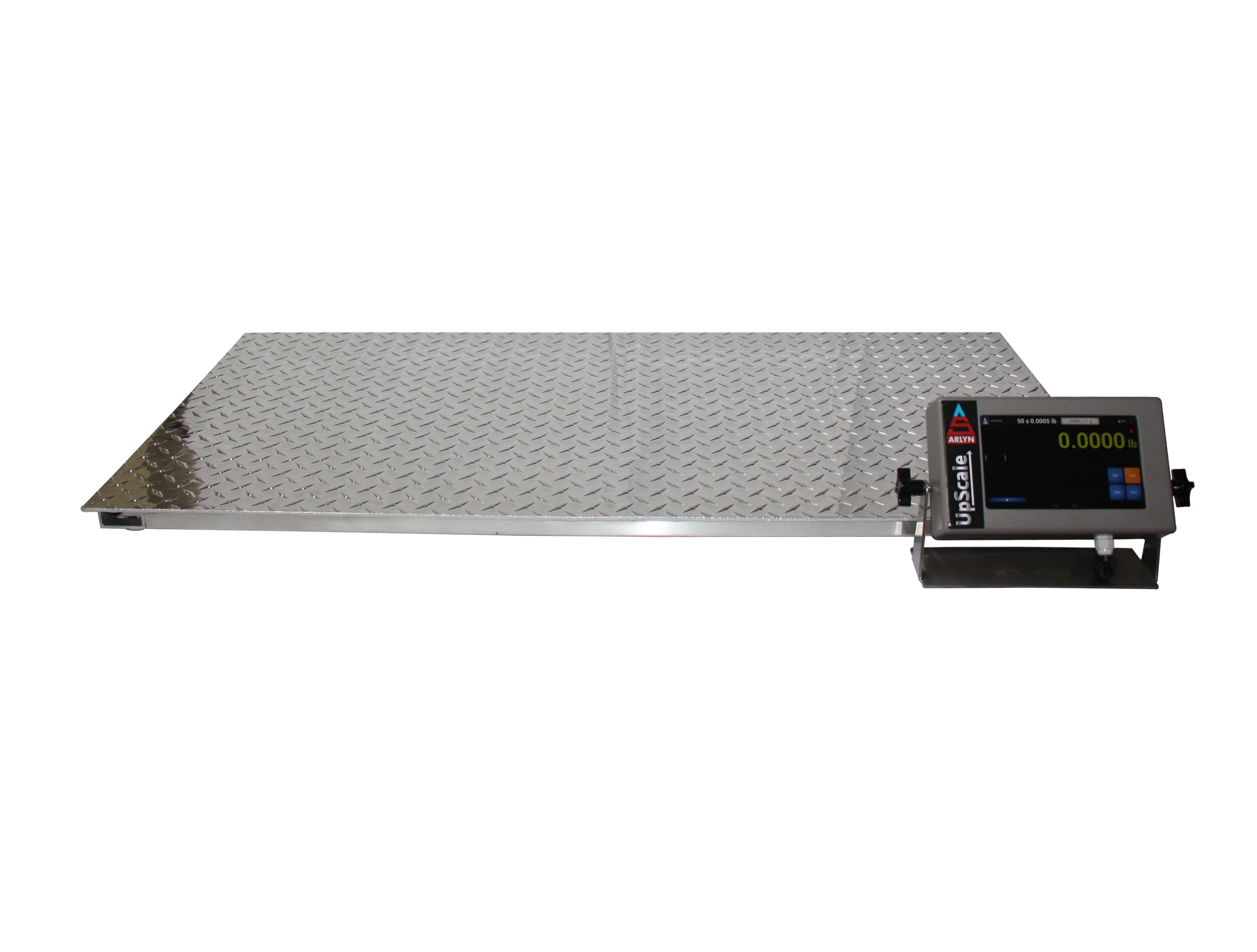

UPSCALE-9 Indicator Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable.
Overload Condition Warning at 102% capacity, protected to 150% capacity.
Dimensions 1 7/8" high, Approx.60 lbs shipping weight.
Electronic Features 32 bit microcomputer, self test, 1 plug-in board for easy service,automatic calibration.
Power Requirements 117 VAC, 50/60 Hz.
Accuracy 0.1% of full scale.
Operating Temperature 14°F to 104°F
Minimum Sampling Rate 10 Hz
