Industrial Drum Scales with a Ramp and Stainless Steel Sensors

Starting at $1149
Configure and Buy

Overview

Arlyn's Industrial Drum Scales feature low profile platforms for ease of loading and rail-less design that allows the load to overhang in addition to have high durability and accuracy. See more product details
Product Code Capacity & Resolution Platform Size Aluminum Stainless
325D-30 500 lbs x 0.1 lb 30" x 30" x 1 7/8" (Ramp Size 30" x 15") $1149 $1889
325M-30 1000 lbs x 0.2 lb 30" x 30" x 1 7/8" (Ramp Size 30" x 15") $1149 $1889
325D-36 500 lbs x 0.1 lb 36" x 36" x 1 7/8" (Ramp Size 36" x 15") $1299 $2169
325M-36 1,000 lbs x 0.2 lb 36" x 36" x 1 7/8" (Ramp Size 36" x 15") $1299 $2169

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

***CUSTOM SIZES & CAPACITIES ARE AVAILABLE. CALL US FOR PRICING & DELIVERY***

***CALL US FOR MULTIPLE PLATFORM REQUIREMENTS WITH SINGLE DISPLAY***

Details

Arlyn's Industrial Drum scales feature low profile platforms for ease of loading and rail-less design that allows the load to overhang. Along with high accuracy and durability, Arlyn’s Series 3250 Drum Scales smoothly achieve all of these goals, with the added advantage of low, factory direct pricing.

Effortless Loading

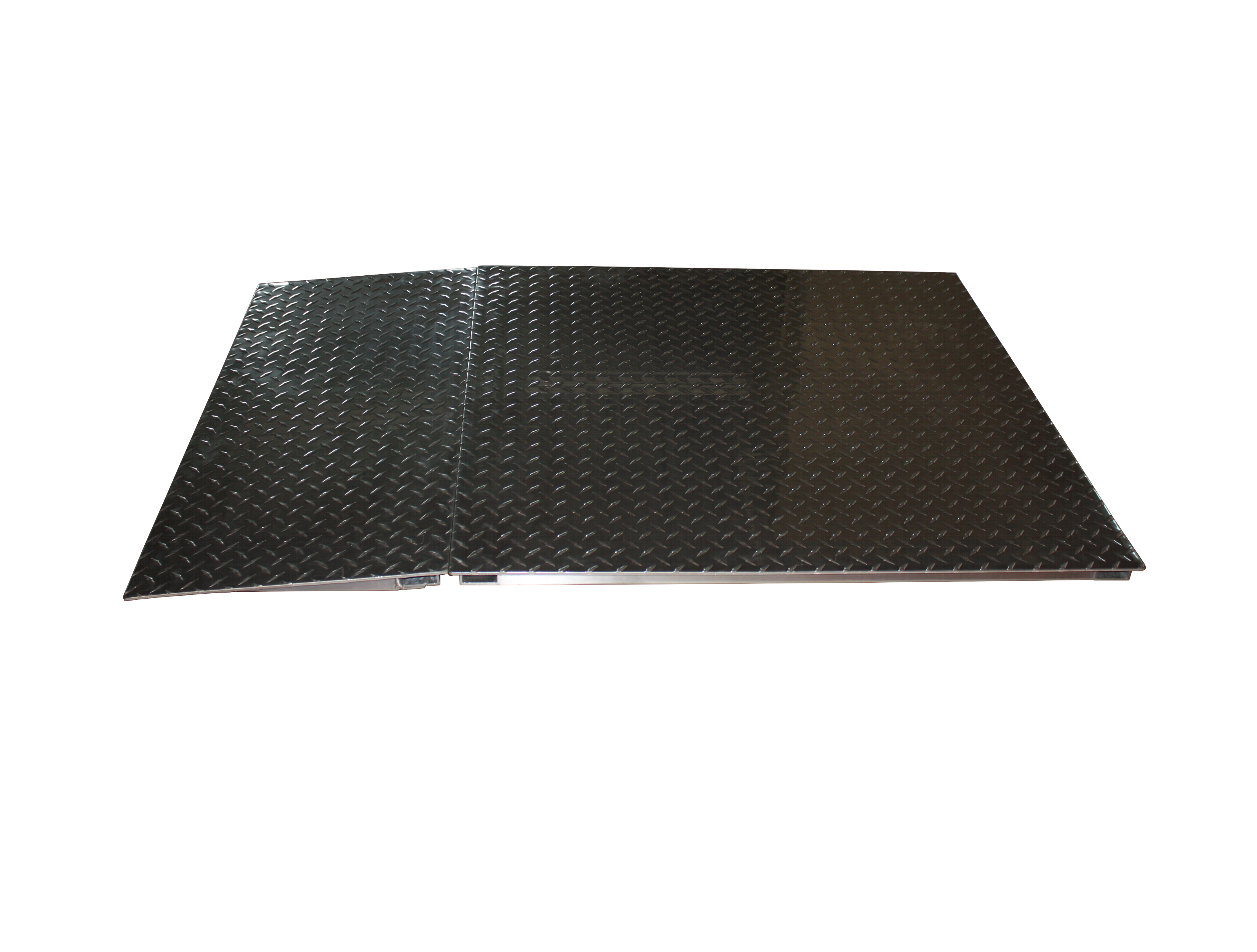

With a height of only 1 7/8” and a ramp included, it becomes a simple task to roll drums, canisters, pails and other items onto and off the scale platform. This unique design avoids the side rails found on other scales which means larger items can be easily weighed.

Stainless Steel Load Sensors

There are four load sensors embedded in the corners of the scale. These do the hard work of converting weight into an electrical signal. Arlyn machines these sensors out of stainless steel to make sure they continue to do their job under the difficult conditions found in factory situations.

All Stainless Steel Construction (Optional)

The entire scale can come with all stainless steel construction for harsher environments. Also available with NEMA 4x Stainless Steel Display Indicator enclosure.

Accurate Readings

Drum Scales are used specifically for the goal of achieving accurate weight readings. Arlyn scales use modern digital techniques to provide the best results. When exceedingly precise weighing is required, consider our SAW Ultra Precision Scales.

Monitoring and Controlling

We offer a number of computer interface protocols, including USB, RS-232, Ethernet and Wi-Fi, to allow complete information exchange and control with computers, controllers and other in-plant equipment. We also offer the new AxChange Cloud Monitoring and Weight Tracking system. Limited free beta accounts available.

Intrinsically Safe Versions Available

For hazardous or classified environments, see Arlyn's Intrinsically Safe ArlynGuard P Series Platform Scales and ArlynGuard F Series Industrial Floor Scale equipped with FM Approved display indicator and load cell sensors. These Intrinsically Safe scales can be configured to be Intrinsically Safe Drum Scales. Please contact us or call us at (800) 645-4301 and we will be happy to help.

Other Configurations

  • 2-Wire or 3-Wire 4-20mA (no display): These scales can also be configured for applications that do not require a Digital Display Indicator. This is suitable if your application requires this scale with a 2- or 3-wire 4-20mA or 0-5V interface without a display.
  • Load Cell Kits (without platform): We also provide load cell kits with capacities as stated for these types of scales. The kits include the heavy duty stainless steel load cells, legs, and other hardware. The kit can also include the scale display if requested.
For these and other configurations, please contact us or call us at (800) 645-4301 and we will be happy to help.

Available Upgrades

Display
Outputs
  • Analog Output 4-20mA (or 0-5VDC)
  • RS-232 Serial Port
  • RS-422/RS-485
  • USB Communication (w/ Virtual Serial Communication)
  • Ethernet TCP/IP Connectivity
  • Wireless TCP/IP Connectivity (UpScale)
  • Modbus RTU/ASCII (UpScale)
  • Modbus TCP (UpScale)
Printing
  • Label, Paper and Card Printer (RS232)
  • Bluetooth/USB 58mm Thermal Printer (UpScale)
  • Barcode Functions - Printing and Scanning (UpScale)
Setpoint Control
  • Setpoints (Filling Ops, Relay Ctrl, etc)
  • Relays (AC/DC)
  • Alerts (Buzzer Alarm)
  • Light Tower: 2/3 Light Columns
Counting Operation
  • Parts Counting
Data Collection
Construction
  • All Stainless Construction available.
Extras
  • Flow Rate Function with Alarms (UpScale)
  • Battery Pack
  • NEMA Stainless Steel Enclosure
  • Remote Buttons (ZERO, TARE, PRINT, CYCLE)
  • 24V Power

Specifications

Brochure & Datasheet 3250 Series Drum Scales - Specification Sheet (PDF)

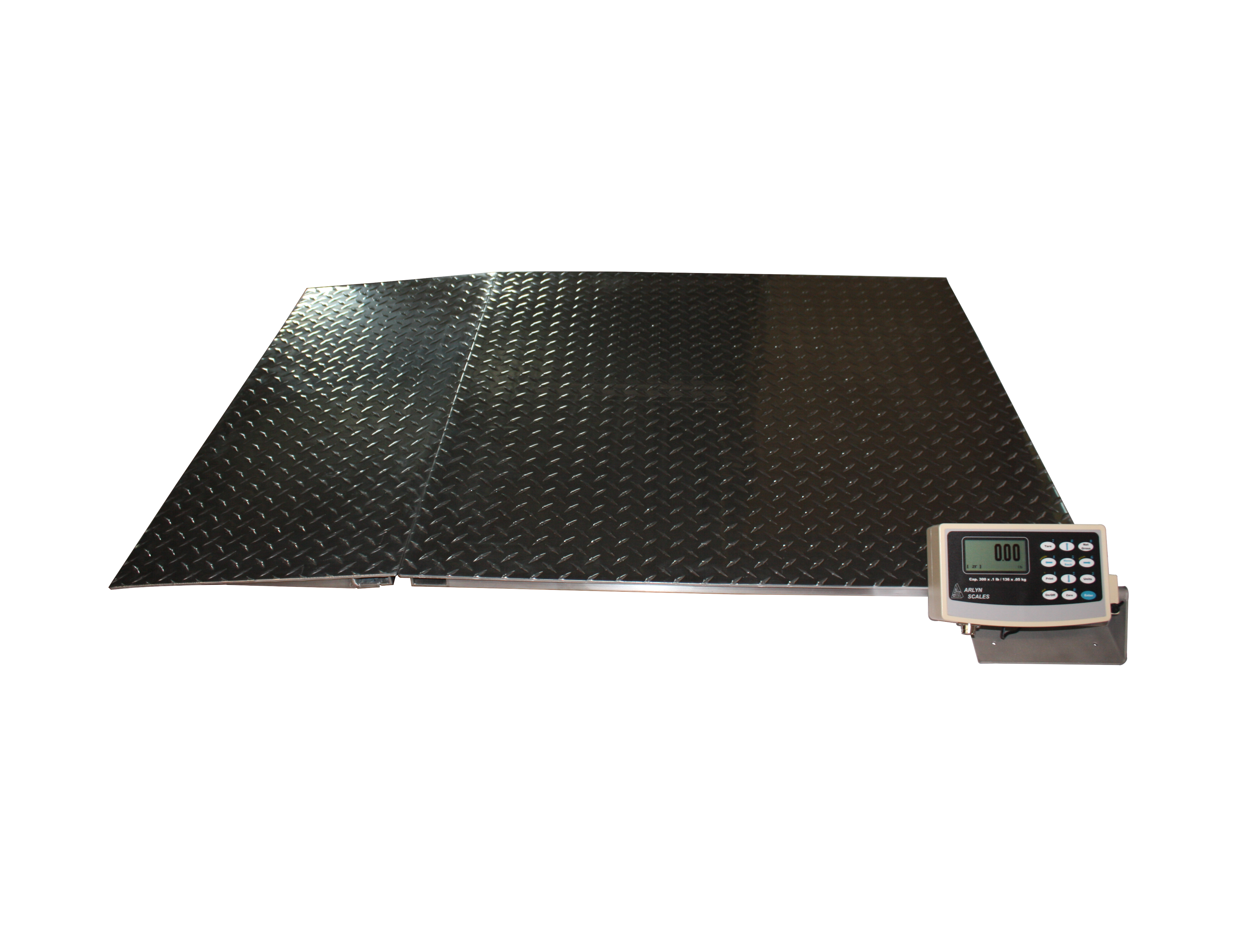

MKE-5 Digital Indicator 1" High Graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable.

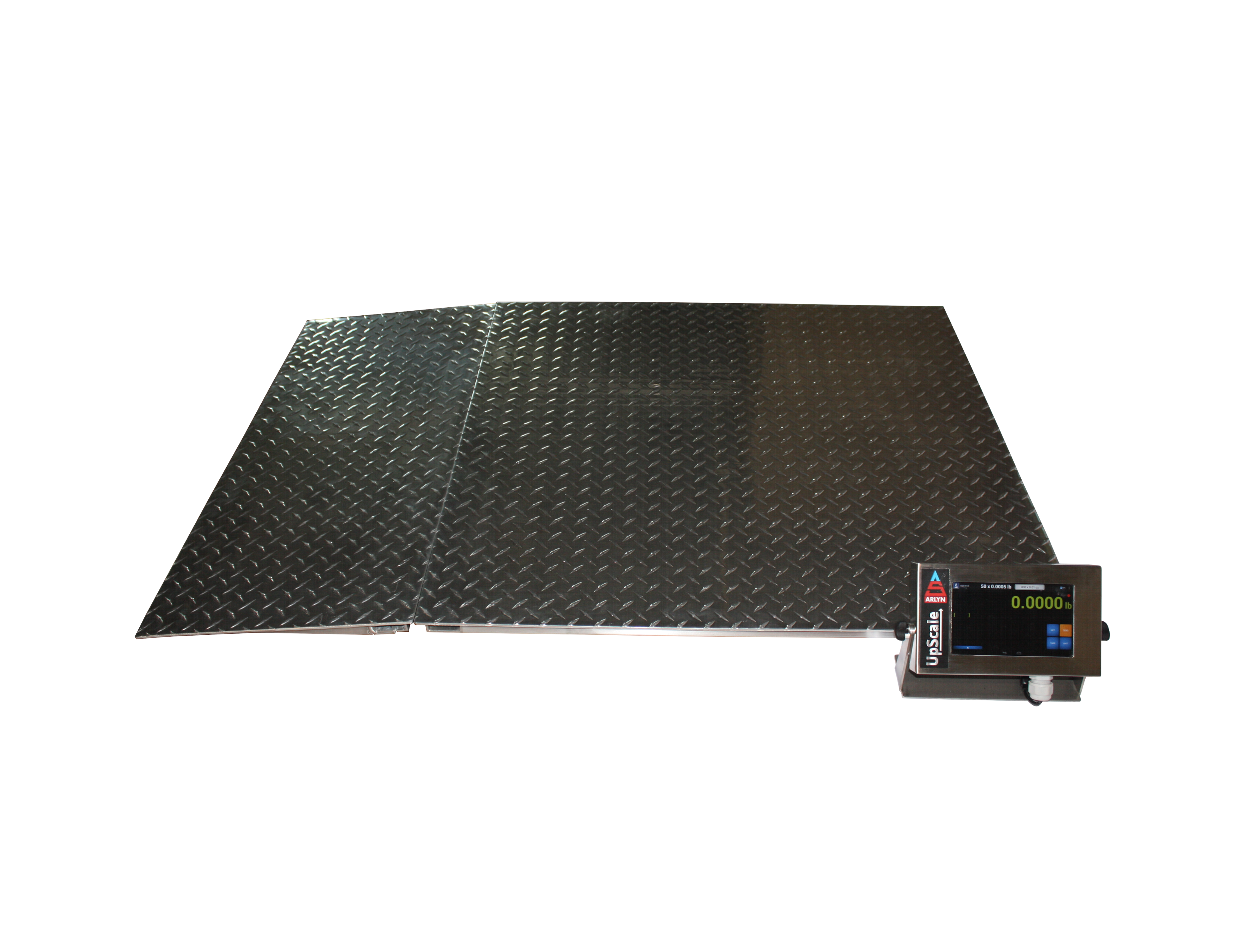

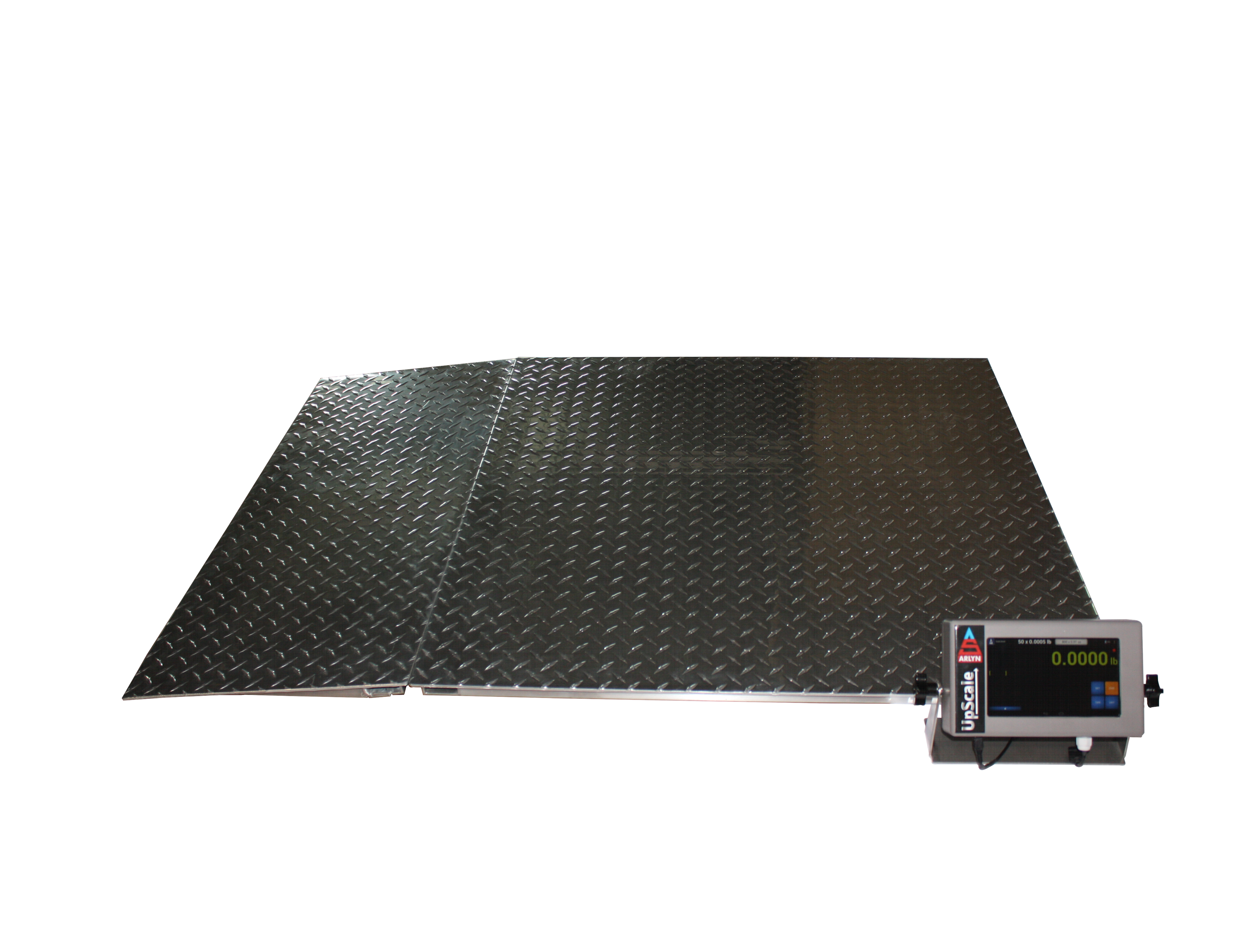

UPSCALE-9 Indicator Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable.
Platform Size 36" x 36" x 1 7/8" high. Included ramp 36" x 15"
Power Requirements 117 VAC, 50/60 Hz. 24VDC Optional
Accuracy 0.1% of full scale.
Operating Temperature 14°F to 104°F
Minimum Sampling Rate 10 Hz
