Starting at $899Configure and Buy
OverviewMost veterinary scales are foreign made. And they look like it. Sheet metal and lower cost components are used to keep the price lower. Arlyn's welded construction and "Weight Average and Hold" functions give durability and accuracy. See more product details

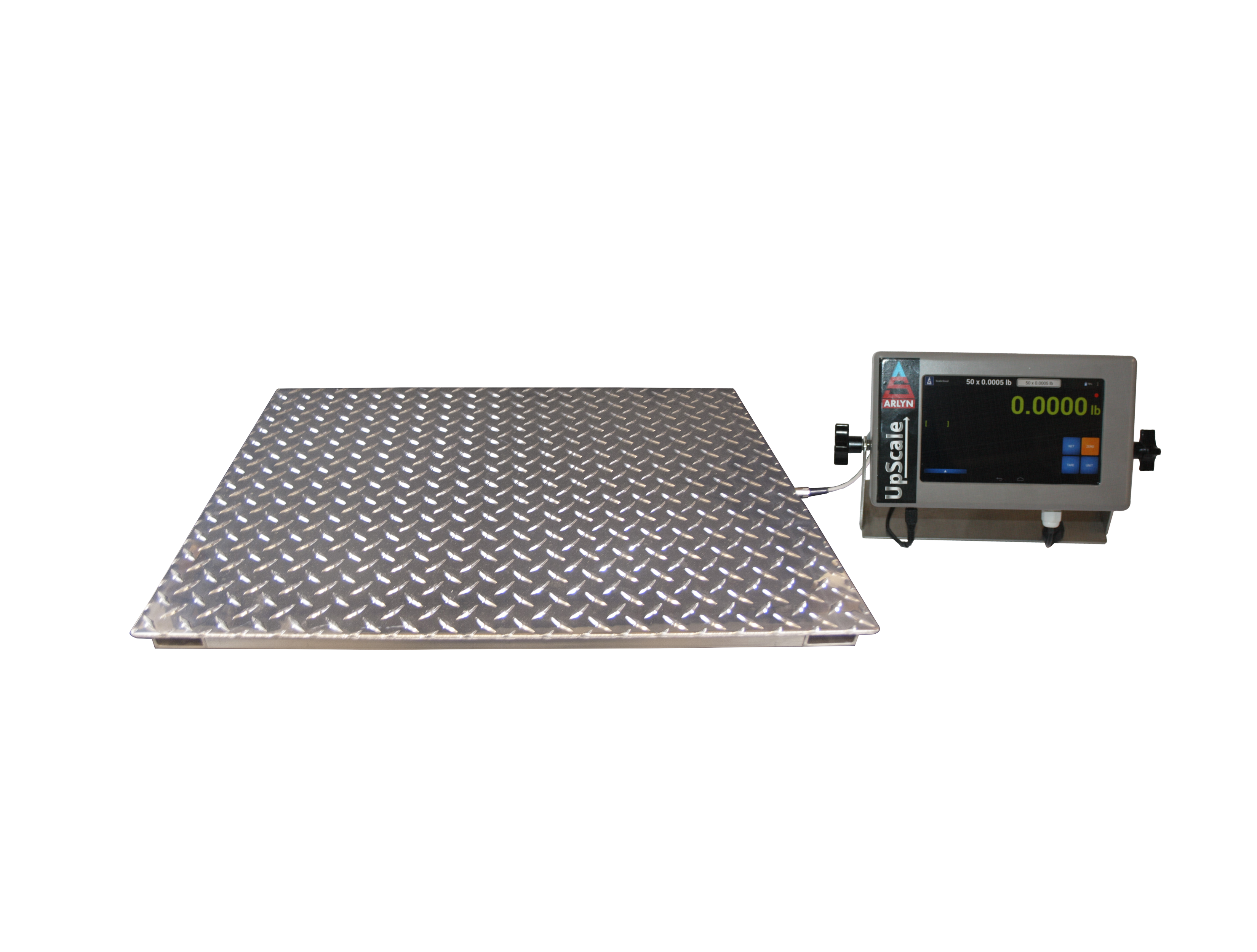

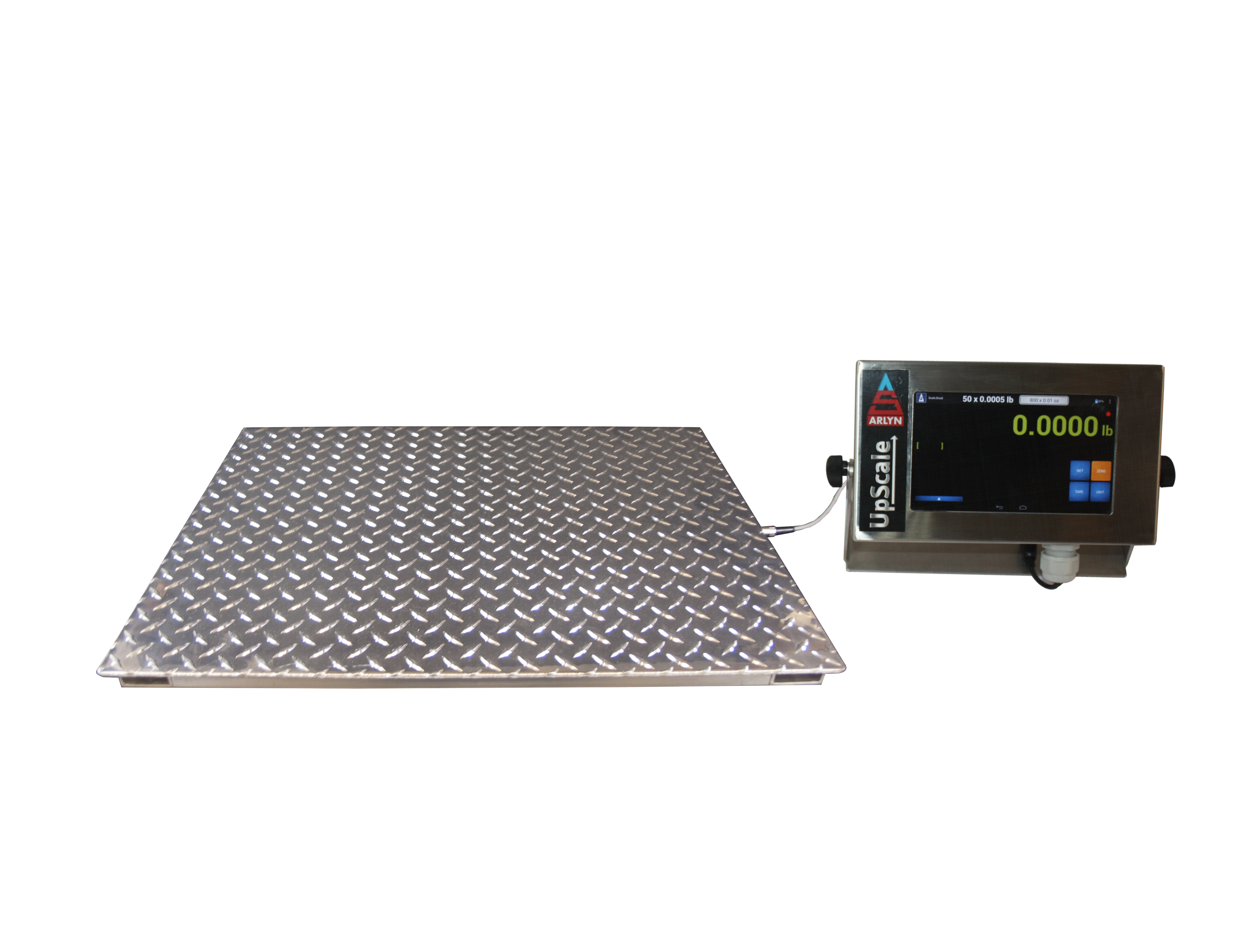

Most veterinary scales are foreign made. And they look like it. Sheet metal and lower cost components are used to keep the price lower. But most often, a veterinarian is a businessperson. They want to get the best value for their money, not just the lowest cost. Arlyn’s 320-VET scales fit the bill very well. These scales are built in the USA, exactly the same as our industrial heavy-duty scales, with a fully welded corrosion resistant metal frame and special alloy stainless steel load cells. The large, graphical display provides easy to read weights, and the special Animal Weighing function gives highly accurate results, even if the animal will not stay still. Factory direct pricing brings this premium grade scale at an excellent price.The smaller 620-VET scale gives similar functions for smaller animals, such as cats, birds and reptiles.
Extended WarrantyThe normal Limited Warranty is extended to three years.
Welded Platform is Lightweight and Portable Yet Strong(320-Vet-Small, 320-Vet, 320-Vet-Large) 500 lb x 0.1 capacity. 22” x 44” (Other standard and customized platform sizes are also available). This 24 lb. scale is quite easy to store and move around the office. The height of the platform is only 1 7/8”, so it is easy for animals to step onto scale. a rubber non-skid mat included.
Very Low Height Platform(620L-Vet,620T-Vet,620X-Vet)10-50 lb capacity. The stainless steel platform is 12” x 16” and is only 1” high. This scale is typically used for smaller animals, such as cats, birds, and reptiles.
No Moving PartsIn order to provide the best overload capability and shock load capability, the scale uses special alloy stainless steel load cells embedded in welded frame.
Moisture ProtectionA rubber gasket is used to seal the display housing. The load sensors are also protected against water and contaminants.
Easy to Read DisplayBig, black graphics digits are 1” high. It is easily viewed from any angle, thanks to the stainless steel swivel bracket.
Very High AccuracyThe weight can be read to a resolution of 0.1 lb (320-Vet-Small, 320-Vet, 320-Vet-Large)The small scales have resolutions ranging from 0.002 – 0.01 lb (1 grams x 5 grams) (620L-Vet,620T-Vet,620X-Vet)

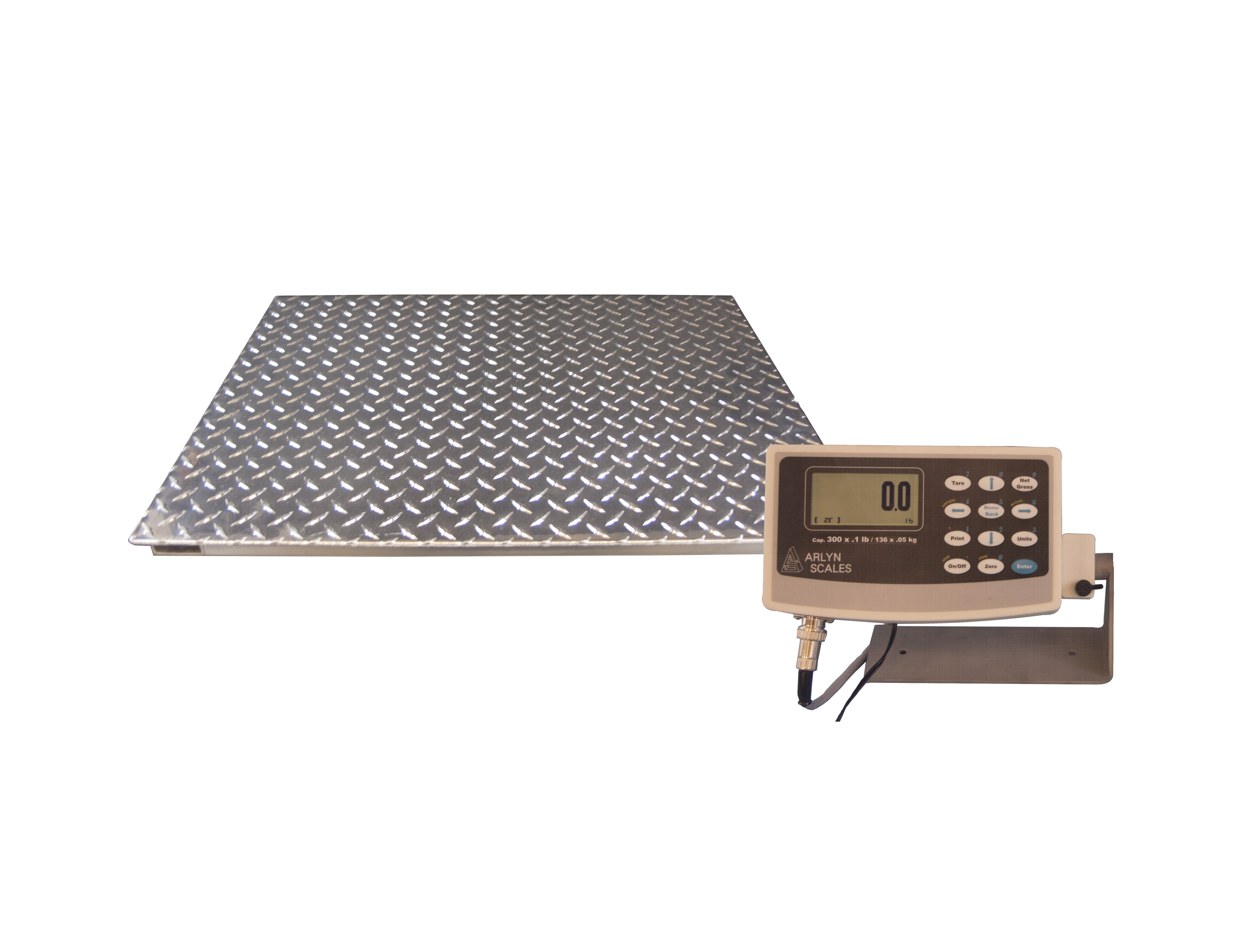

- MKE-5 Digital Indicator: High Precision Push-button Indicator
- UPSCALE-9 Indicator: Arlyn UpScale Touchscreen Indicator
- Analog: Analog Output 4 - 20mA
- Ethernet: Ethernet TCP/IP Connectivity
- WiFi: (UpScale Only) Wireless TCP/IP Connectivity
- Label Printer: Label, Paper, and Card Printer (must purchase RS232 option)
- Thermal Printer: (UpScale Only) POS Printer and Interface (Bluetooth/USB connection)
- Flow Rate: Flow Rate Measurement Program
- Memory Stick: USB Memory Stick Datalogging
- NEMA: NEMA 4x stainless steel display enclosure
- Battery: Rechargeable Battery Pack
- RS-232: RS-232 Computer/Printer Port
- USB: USB Port (Virtual COM Port Drivers)
- Time & Date: Time and Date output
- WinWedge: Data Collection Software (USB, RS232, etc.)
|MKE-5 Digital Indicator||Included 1" high graphics LCD digits. Updates between 0.1 to 0.5 sec. Adjustable.|
|UPSCALE-9 Indicator||Upgrade to Arlyn UpScale 7" Color LCD Touchscreen. Fully Customizable.|
|Electronic Features||32 bit microcontroller, self test, automatic calibration|
|Power Requirements||117 VAC 50/60 Hz.|
|Filter Mode||"Weight Average and Hold" for accurately weighing a moving animal|
|Unit Conversation||pounds, kilos, grams, ounces, etc.|
|Operating Temperature||14°F to 104°F|
|Minimum Sampling Rate||10 Hz|
Capacities and Platform Sizes
|Product Code||Capacity & Resolution||Platform Size||Price|
|320-Vet-Large||500 lb x .1 lb||27" x 60"||$899|
***ALL OTHER SIZES AND CAPACITIES ARE AVAILABLE***
***CALL THE FACTORY FOR PRICING AND DELIVERY***
