Arlyn Upscale Touchscreen Indicator
$549.00
|
Series UPSCALE
|
|
| Product Code | Price |
| UPSCALE-9 Plastic | $549 |
| UPSCALE-9-SS Stainless Steel | $749 |

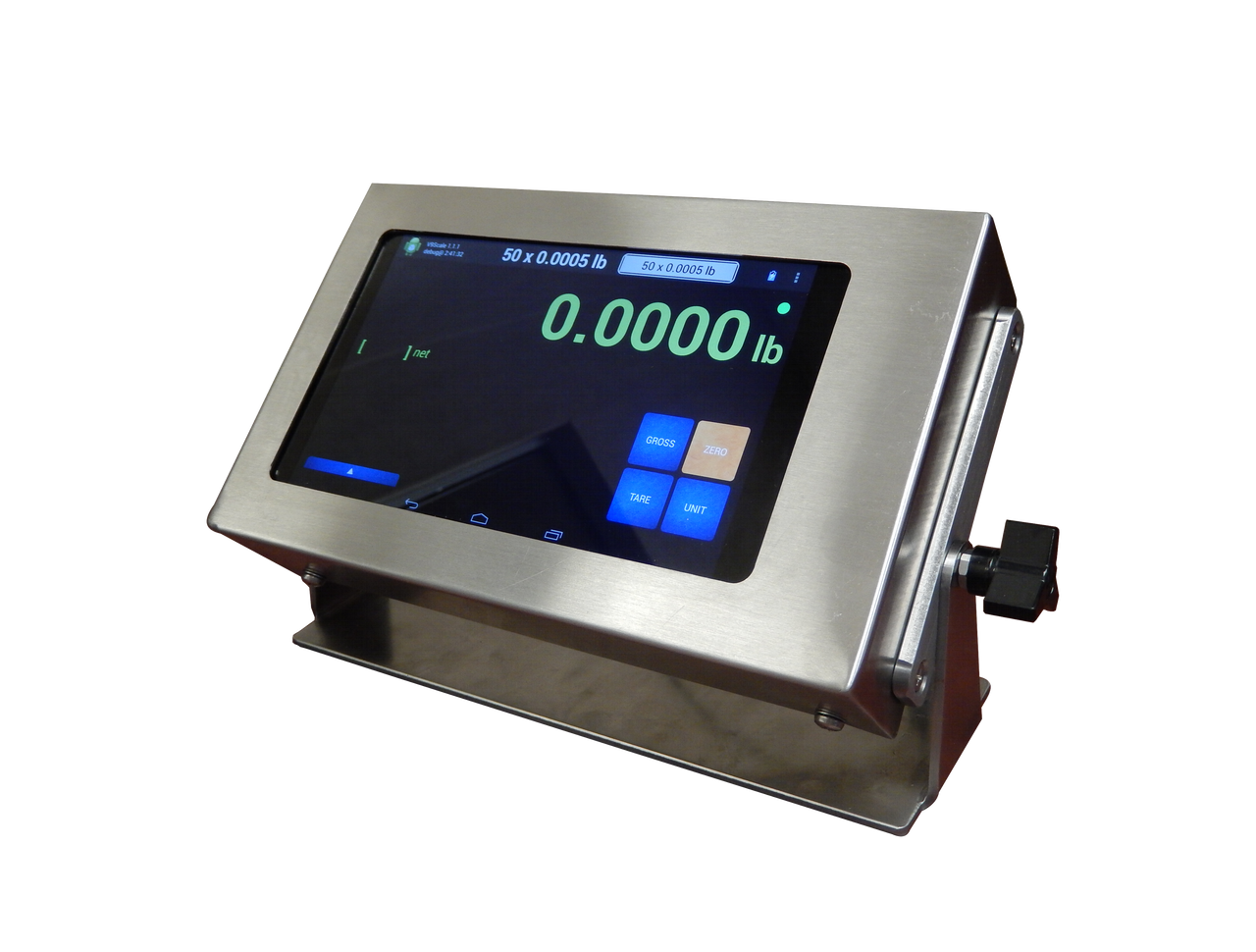

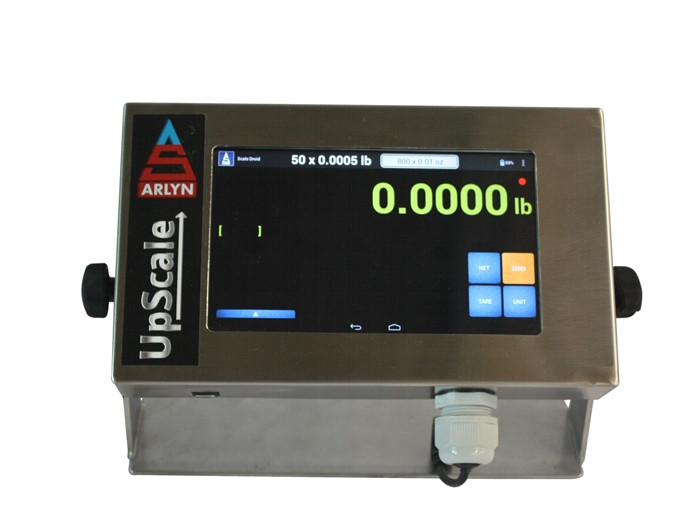

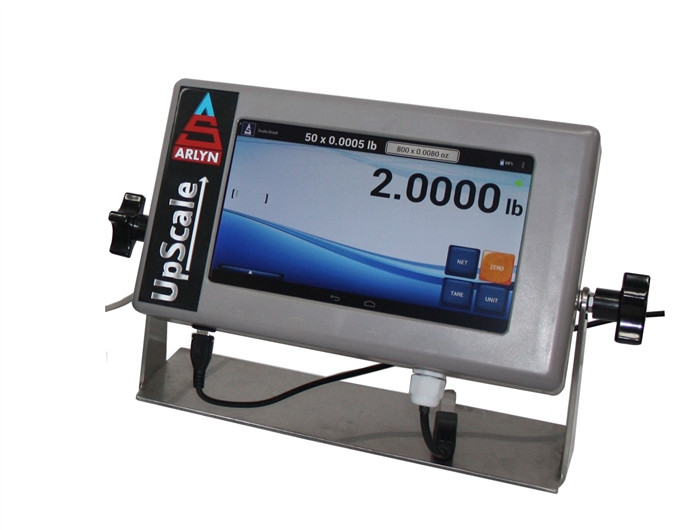

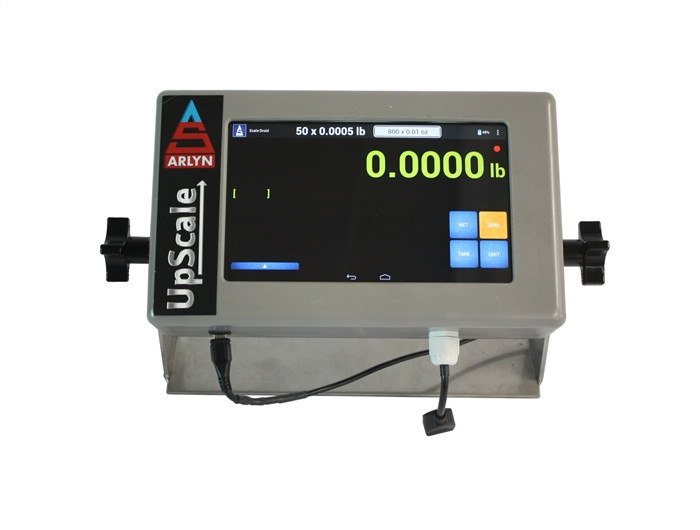

Arlyn UpScale Touchscreen Indicator: State-of-the-Art Weight Indicator System
The Arlyn Upscale Touchscreen Indicator is a new state-of-the-art digital indicator available exclusively from Arlyn Scales. It is equipped with a 7 inch HD IPS Capacitive 5-point multi-touch screen display with a resolution of 1024×600 (WSVGA) pixels. The Arlyn Upscale is driven by a powerful Quad Core processor and comes with spacious 8GB of storage. It is also equipped with 1GB of DDR3 RAM giving it more than enough power to multitask across simultaneous processes. It also comes in Stainless Steel enclosure.
Color Touchscreen Display
No more pushing buttons to get things done. No need to worry about pressing the wrong button. All buttons on the screen are context aware.
Visually Driven Interface
We designed the Graphical User Interface (GUI) with User Friendliness in mind. Descriptions of tasks and buttons are so clear that there is no need to read the manual to perform simple tasks.
Water Resistant
Highly Water resistant injection molded enclosure. Rubber gasket helps seal out moisture. Optional Stainless Steel enclosure also available.
Load cell connectivity
Compatible with 4-wire Load Cell connection (E+, E-, S+, S-). Comes with 5-pin DIN connectors or HDMI connection for ease of use. Wiring information available on request. Customized connectors also supported at additional cost.
Communication Choices
The modern industrial environment is interconnected. All Arlyn Digital Indicators are available with a wide variety of industry standard communication options including Ethernet, Wi-Fi, USB and RS-232.
High Accuracy
Fully Customizable Accuracy Control for noisy and vibrating environments is available standard on this indicator through User Defined Software Filter, Stability Control, Zero/Motion Detect and Zero Tracking.
