Digital Indicator Push Button - Stainless Steel Optional

Starting at $349
Configure and Buy

Overview

The key task for a Digital Scale Indicator is to show accurate weight values See more product details
The key task for a Digital Scale Indicator is to show accurate weight values. Coupling that with an intuitive, graphic interface produces a winning product. Our full function keypad enables alphanumeric data input, while the large graphic display gives easy to read results. A variety of communication options allows data to be sent to and received from other computerized instruments. See the instruction manual for full details.

Water Resistant

Highly water resistant injection molded enclosure. Rubber gasket helps seal out moisture. Optional stainless steel enclosure also available.

Easy to See

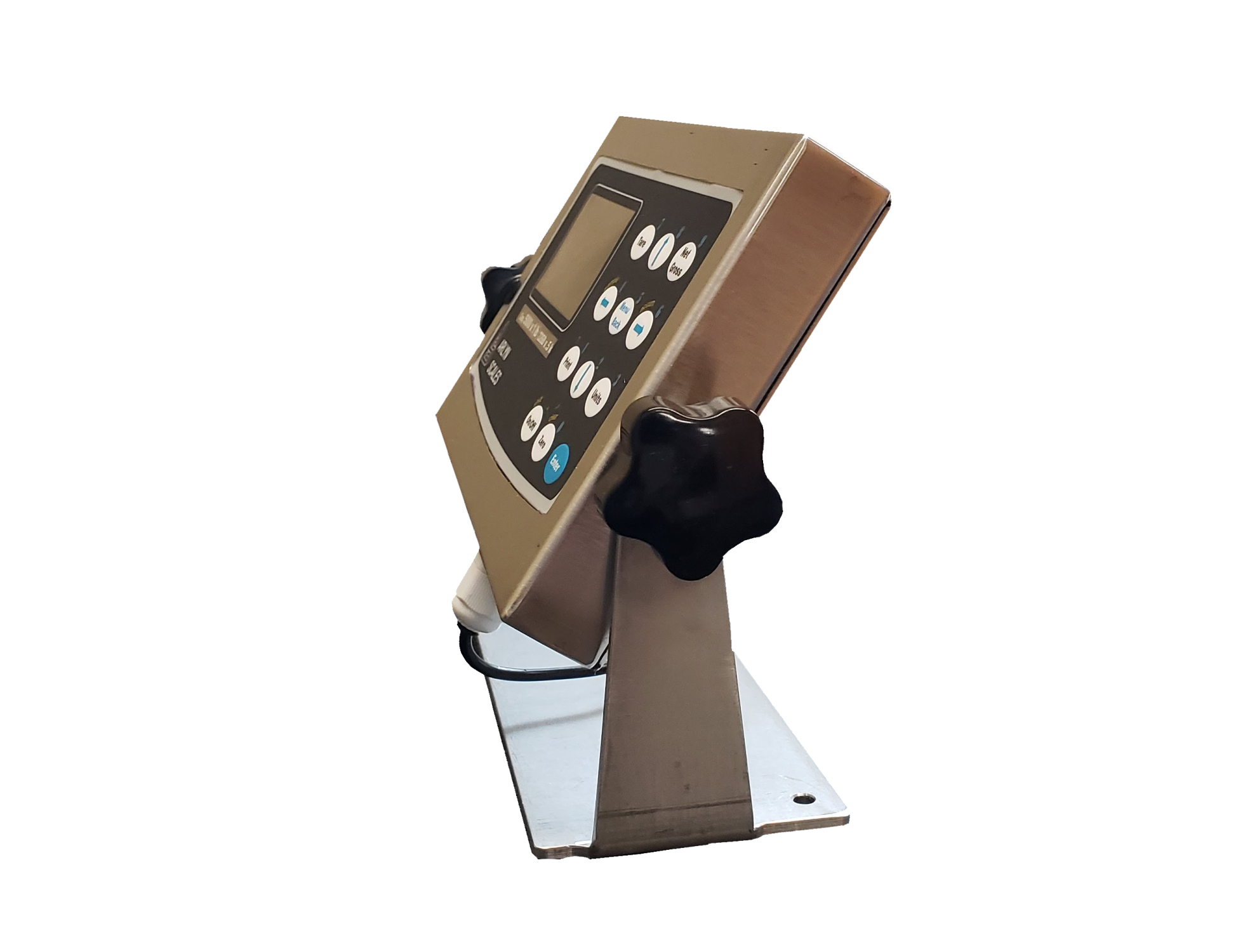

Stainless steel swivel bracket allows the display to be seen from any angle. The bracket may be mounted in a convenient spot on a post, or desk or wall.

Load Cell Connectivity

Compatible with 4-wire Load Cell connection (Excitation +, Excitation -, Signal +, Signal -). Comes with 5-pin DIN connectors or HDMI connection for ease of use. Wiring information available on request. Customized connectors also supported.

Large Internal Memory

More than 100 values can be stored for tare weights, piece counts, and other parameters.

Communication choices

The modern industrial environment is interconnected. All Arlyn Digital Indicator is available with a wide variety of industry standard communication options including Ethernet, Wi-Fi, USB and RS-232.

Clear Menu Interface

All choices are prompted from the graphical display.

Available Upgrades

  • Analog: Analog Output 4 - 20mA
  • Ethernet: Ethernet TCP/IP Connectivity
  • Printer: Label, Paper, and Card Printer (must purchase RS232 option)
  • Flow Rate: Flow Rate Measurement Program
  • Memory Stick: USB Memory Stick Datalogging
  • NEMA: NEMA 4x stainless steel display enclosure
  • Battery: Rechargeable Battery Pack
  • RS-232: RS-232 Computer/Printer Port
  • Set Point: Set Point Controller (for Filling Operations)
  • Relay (AC/DC): Solid State Relays for Industrial Control
  • USB: USB Port (Virtual COM Port Drivers)
  • Time & Date: Time and Date output
  • WinWedge: Data Collection Software (USB, RS232, etc.)

Specifications

Display 3 inch Monochrome LCD with Six Digit Display Width
Resolution 128 x 64
Processor ARM7
Storage 100 Tares/Samples, 16 Setpoints, 4 Print Frames
Control Panel Sealed "Click-Type" Keypad
Power Requirements 117-240VAC, 50/60Hz - 24VDC Optional
Standard Features Eight Unit Conversions, Resolution Override, Customized Accuracy Control
Battery Life Optional Battery Pack: 15-20 Hrs Single Load Cell, 6-8 Hrs Four Load Cell, 3-5 Hrs with Options
Temperature Specs Operating Range: 14°F to 104°F
Enclosure Molded Plastic or NEMA 4x Stainless Steel

Capacities and Platform Sizes

Not Applicable.

Digital Indicator Enclosures

Product Code Price

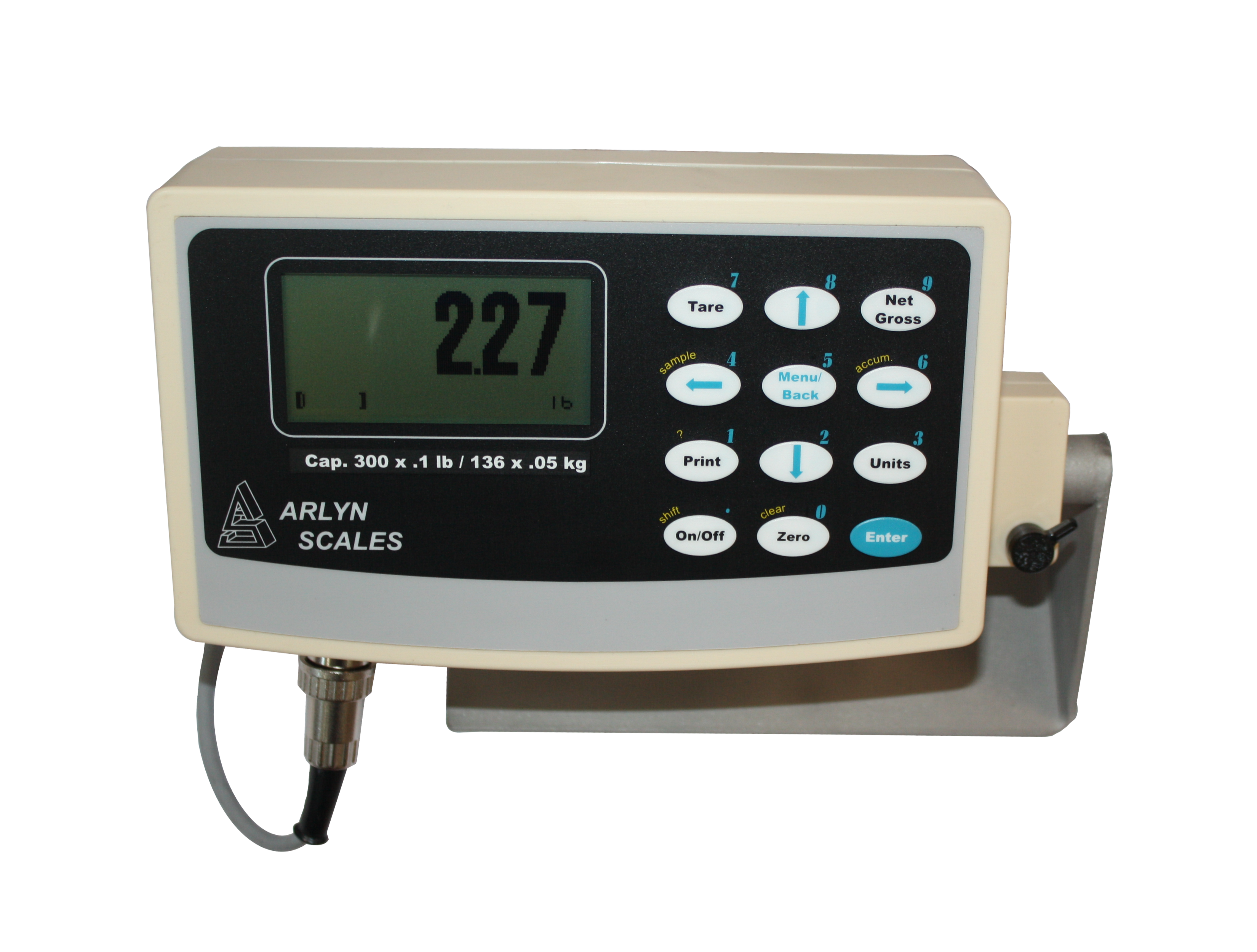

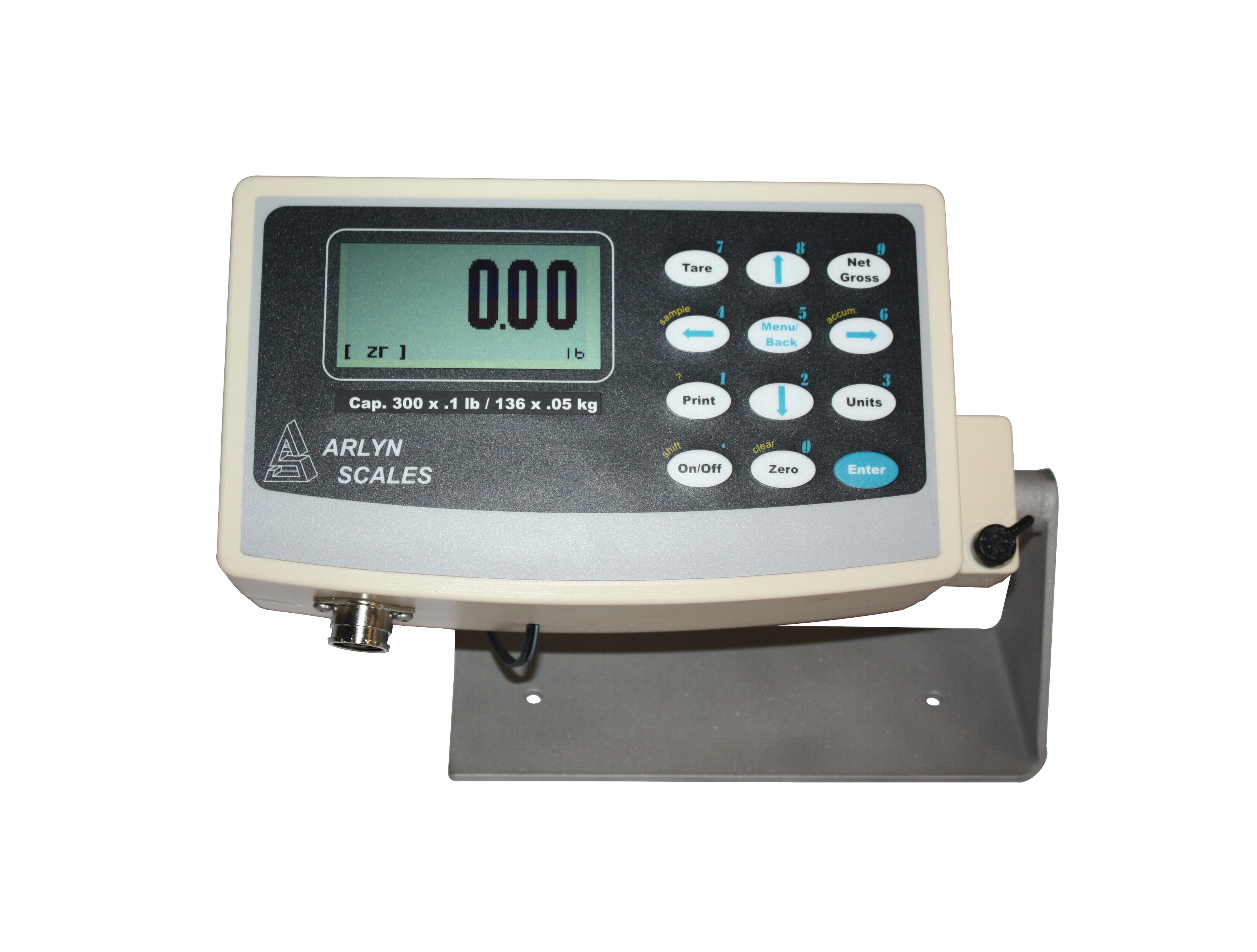

MKE-5 Molded Plastic $349

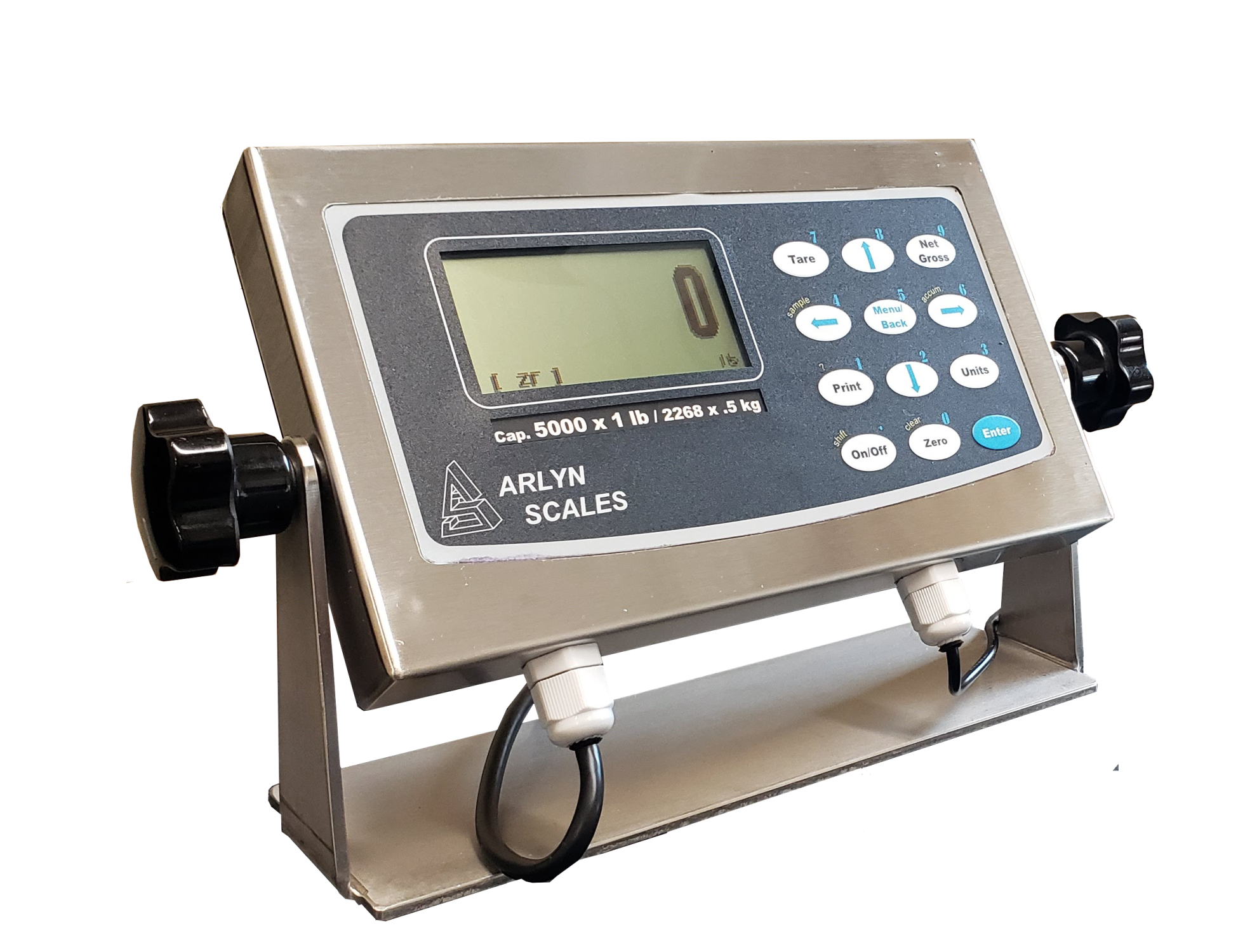

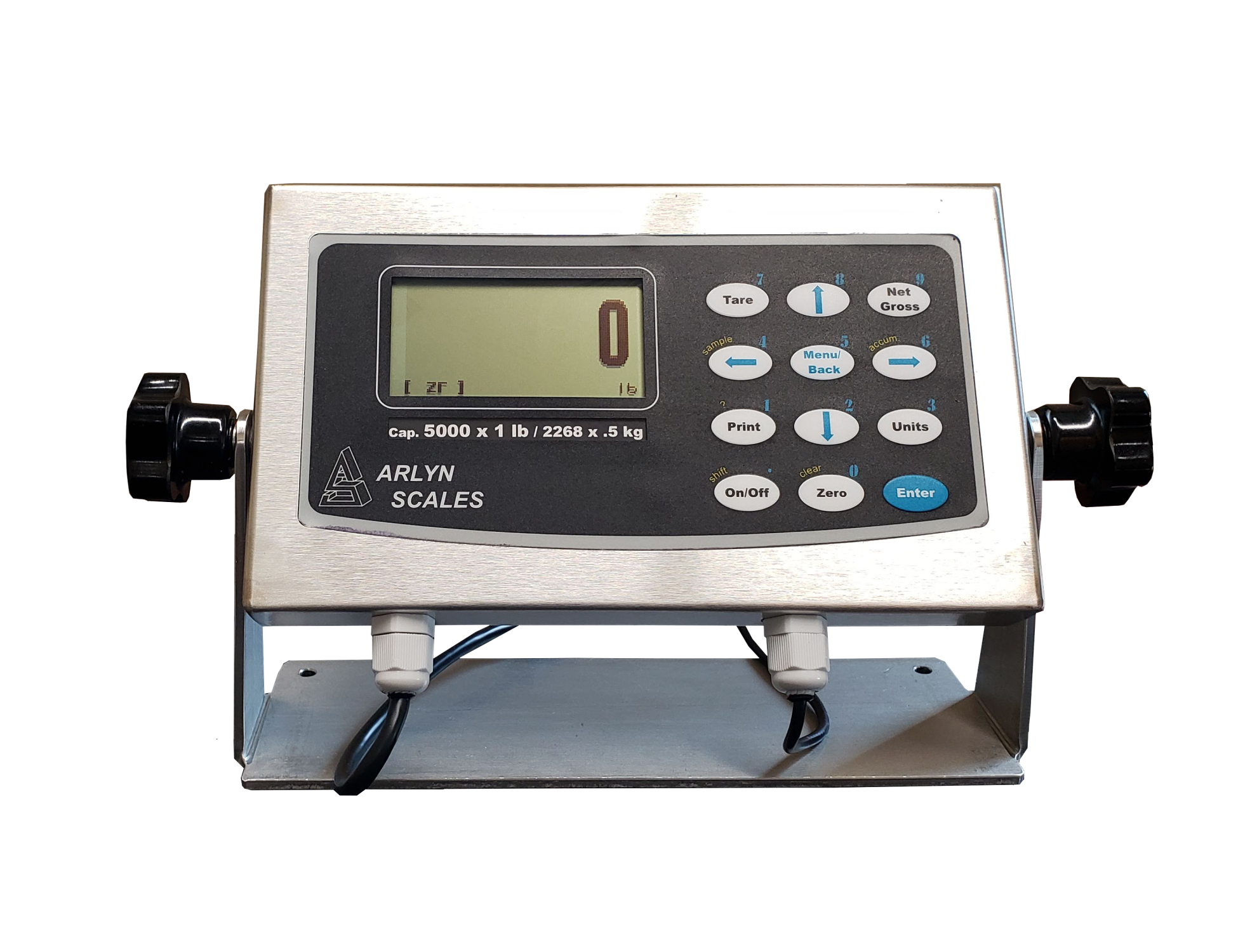

MKE-5-SS Stainless Steel NEMA 4x $549
