Crane Scales Versatile High Capacity Hanging Scales

Starting at $1299
Configure and Buy

Overview

The Arlyn Crane Scales are versatile high capacity hanging scales ideal for all lifting, force measurement, and weighing applications. See more product details
Product Code Capacity & Resolution Price
ARC-2500 2,500 lb x .5 lb/ 1,000 kg x 200g $1299
ARC-5000 5,000 lb x 1 lb/ 2,000 kg x 500g $1299
ARC-10000 10,000lb x 2 lb/ 4,000 kg x 1 kg $1599

***CLICK ON THE PRICE TO AUTO-CONFIGURE YOUR SELECTED MODEL***

Details

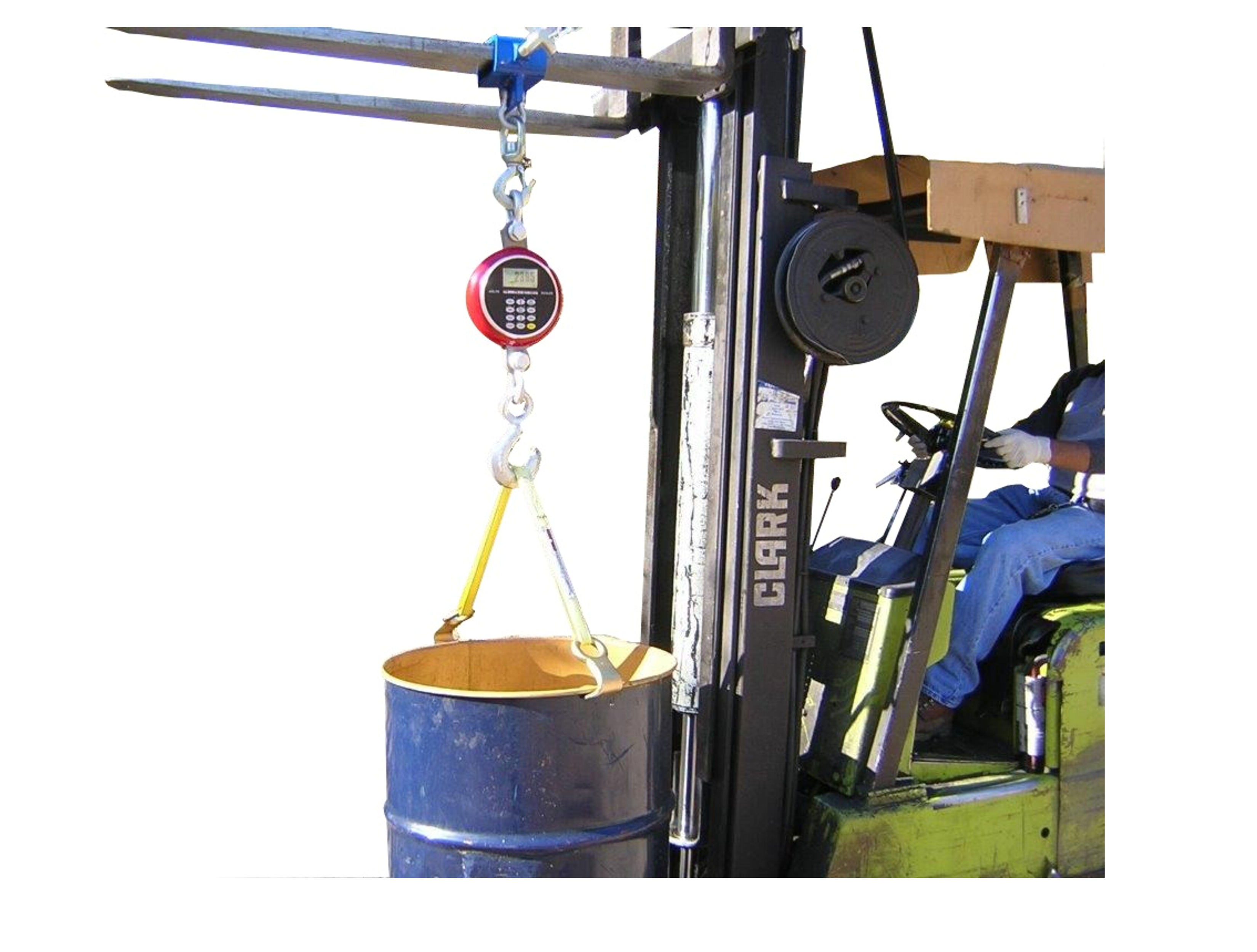

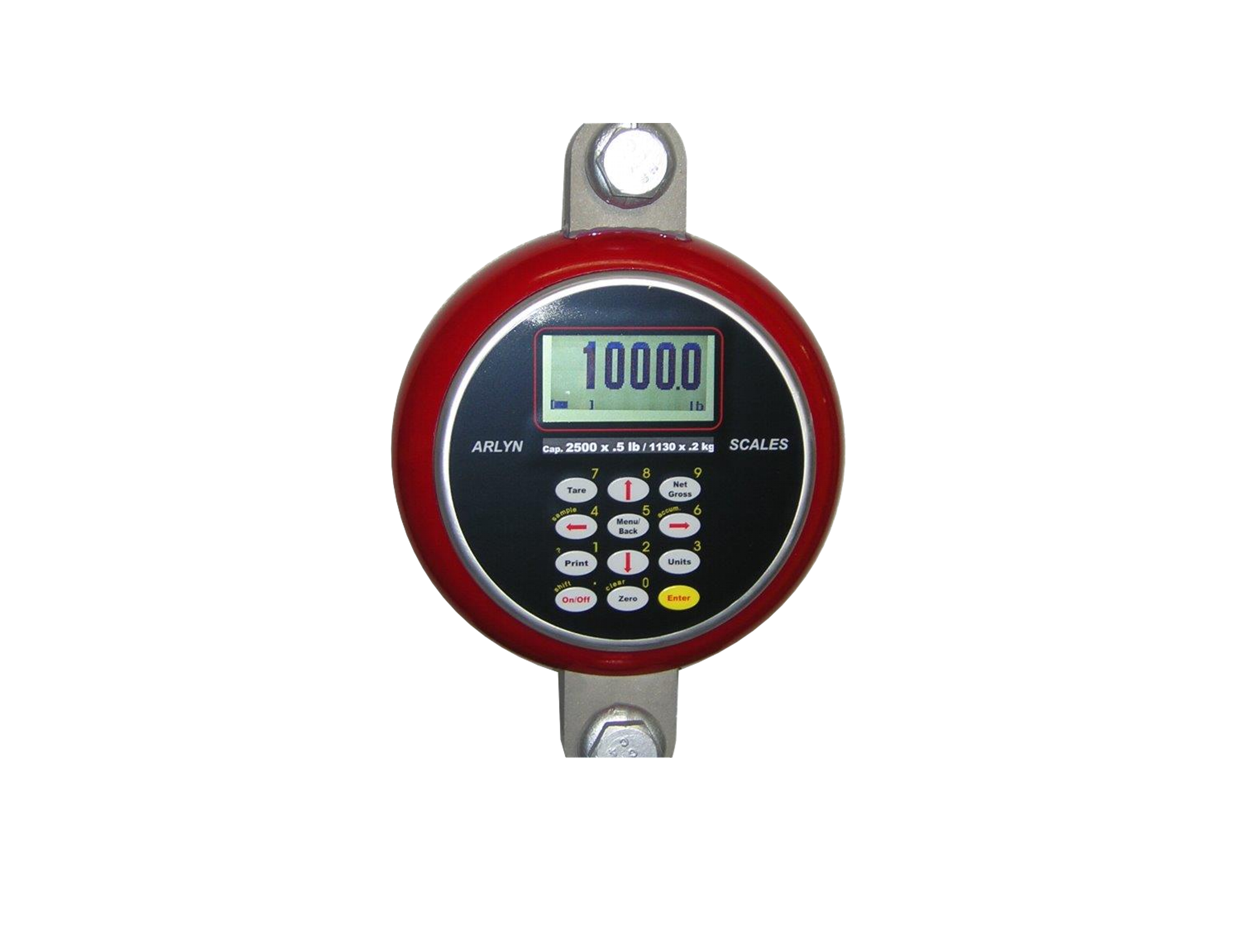

These versatile crane and hanging scales are ideal for lifting, force measurement, and hanging weighing applications. The scales contain a built in stainless steel load sensor which is sheltered inside an extremely tough housing. This housing is manufactured with highly visible, solid red polyurethane, which is combined with a special alloy aluminum. The digital indicator has large, 1” high graphics digits so the weight reading can be easily seen from a distance. Our crane and hanging scales feature an excellent accuracy of 0.1%. Digital features include pushbutton tare and zero. Optional swivel shackles and hooks are also available for different hanging requirements. Contact us at the factory to discuss your options for hanging scales of lower and higher capacities.

Available Upgrades

  • Counting: Counting Function [Add $50.00]
  • Set Point: Set Point Controller (for Filling Operations) [Add $100.00]
  • Relay: This option is only available if you select "Set Point" Option above
  • Time & Date: Time and Date output [Add $100.00]

Specifications

Brochure & Datasheet ARC Series Crane Scales - Specification Sheet (PDF)
Tare, Zero Range 100 % of full scale
Display Speed Between 0.1 and 0.5 seconds, adjustable
Overload Condition Display warning message at 102% of scale capacity
Extremely Durable Rugged heavy-duty construction
Power Requirements Rechargeable Ni-MH "C" size batteries (2)
Operating Temperature 14°F to 104°F
High Accuracy High weight resolution to 0.5lbs.
Multiple Units Weighs in Lbs, Kilos, Grams, Ounces, etc.
Eliminates Maintenance No internal moving parts
Easy Operation Pushbuttons functions for automatic, keyboard tare, zero functions with memory, net/gross
Minimum Sampling Rate 10 Hz
